BJX-2000

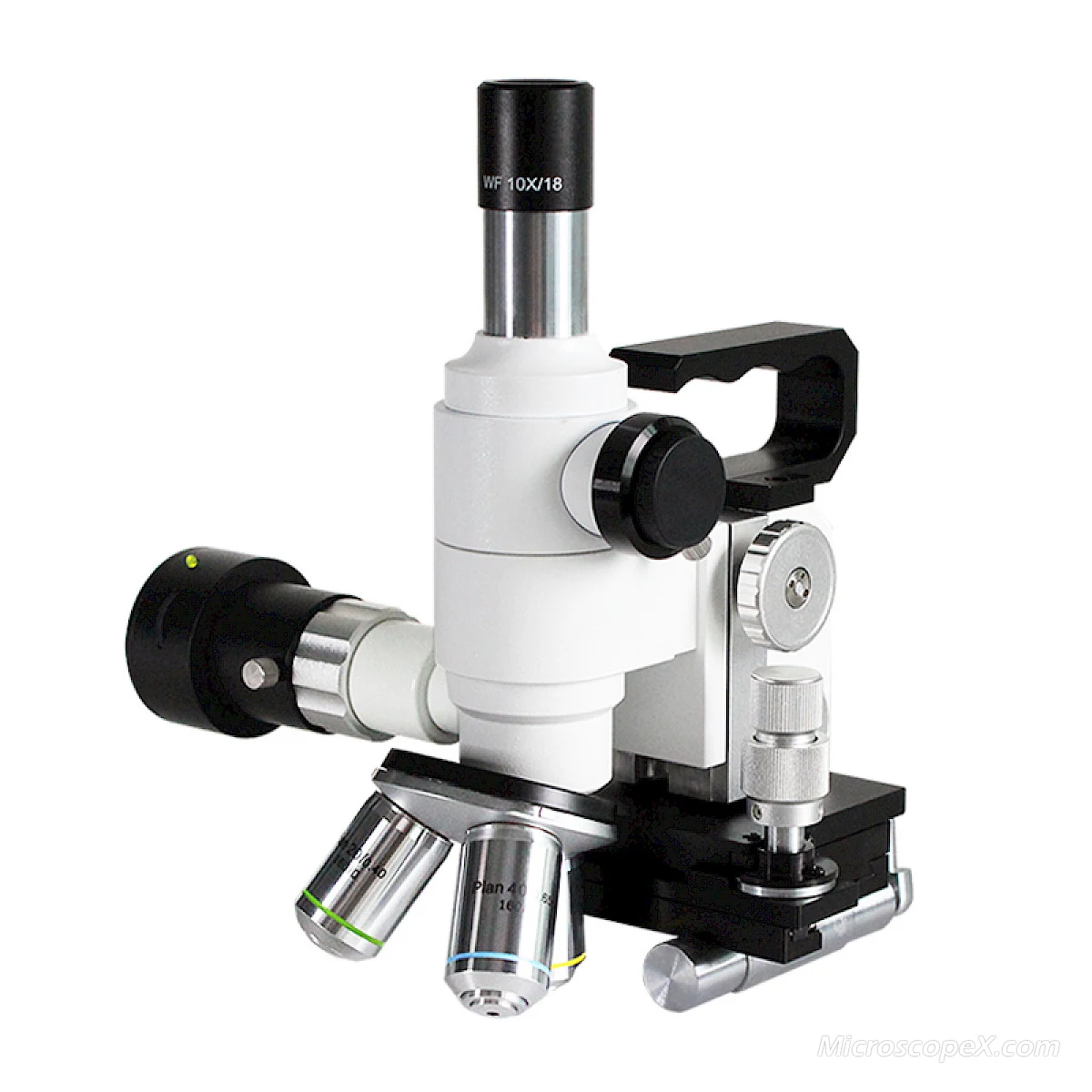

BJX-2000 Portable Metallurgical Microscope with Horizontal Photographic Output

100X-400X, 10X,20X, 40X; triple nosepiece, USB,WIFI

Core Features

Compact and portable
Triple nosepiece for convenient use without changing objectives
LED illuminator (battery), without additional charge required
Equipped with magnetic base which could be fixed on the sample directly
Equipped with dedicated camera interface, simultaneous camera and eyepiece ues
Extensively used for Metallurgical Labs, especially field sites

Configurations

WF10X(Φ18mm)

LED, powered by external dry battery

Triple nosepiece

magnetic base

on-off magnetic foot

Request Quotation Email Phone Back to Products

BJX2000 Field Sites Portable Metallurgical Microscope extensively used for metallorgraphic examination and failure analysis of large workpiece. Grind sampling/ observe directly on the workpiece without cutting and sampling. Improve metal inspection effeciency and products quality control. No damage to the workpiece , especially the finished products. Available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software which are convenient to collect, save and input images for analysis and research.

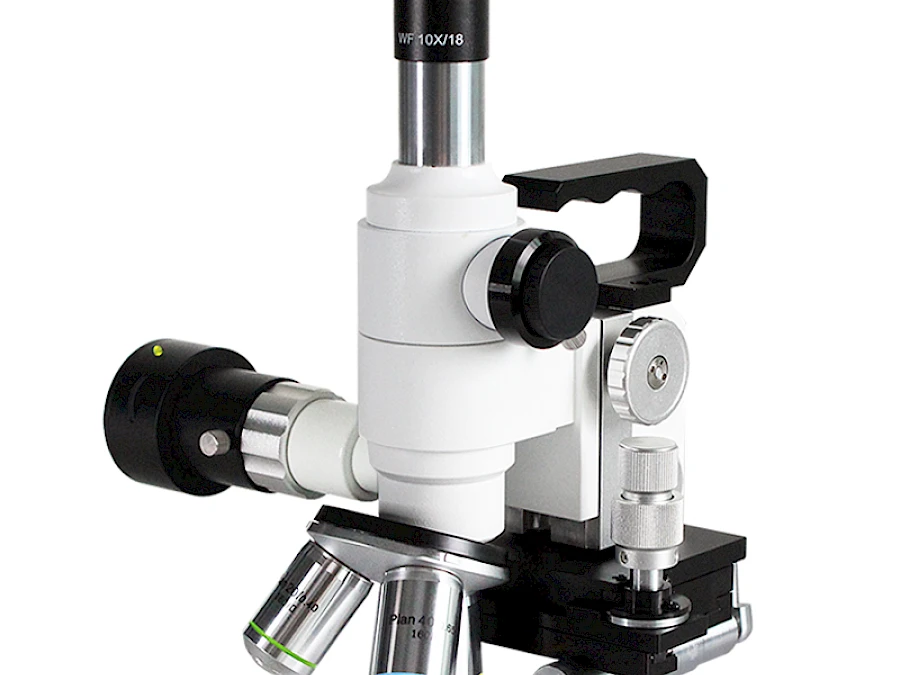

BJX-2000

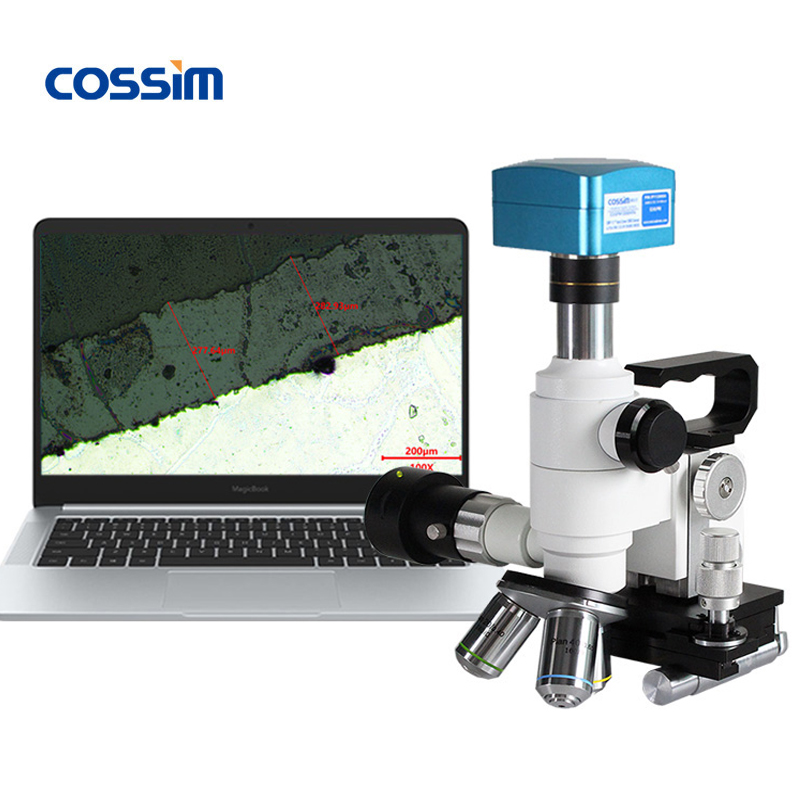

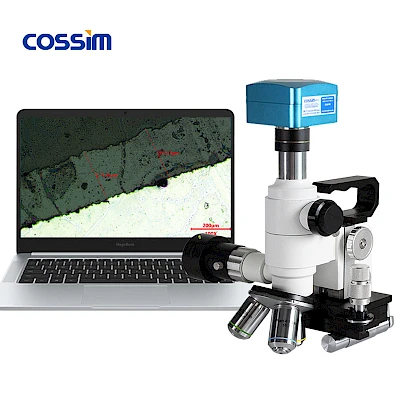

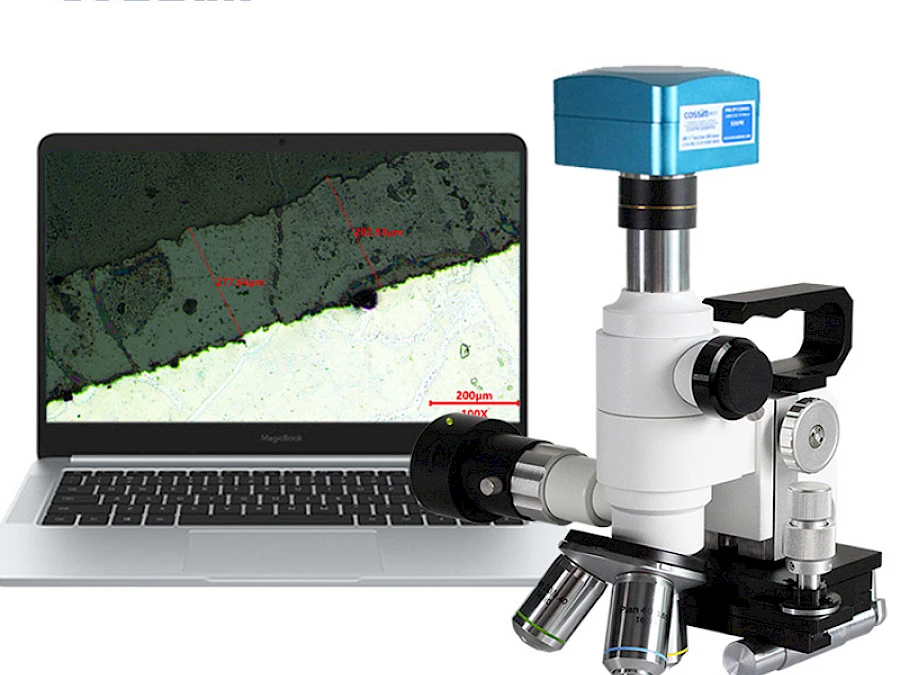

BJX-2000 with USB

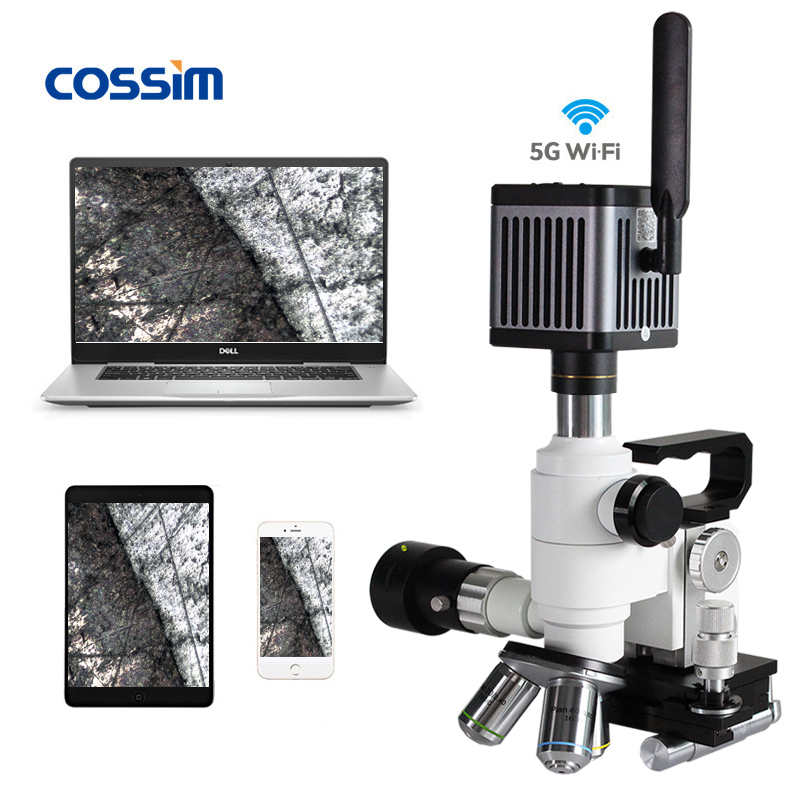

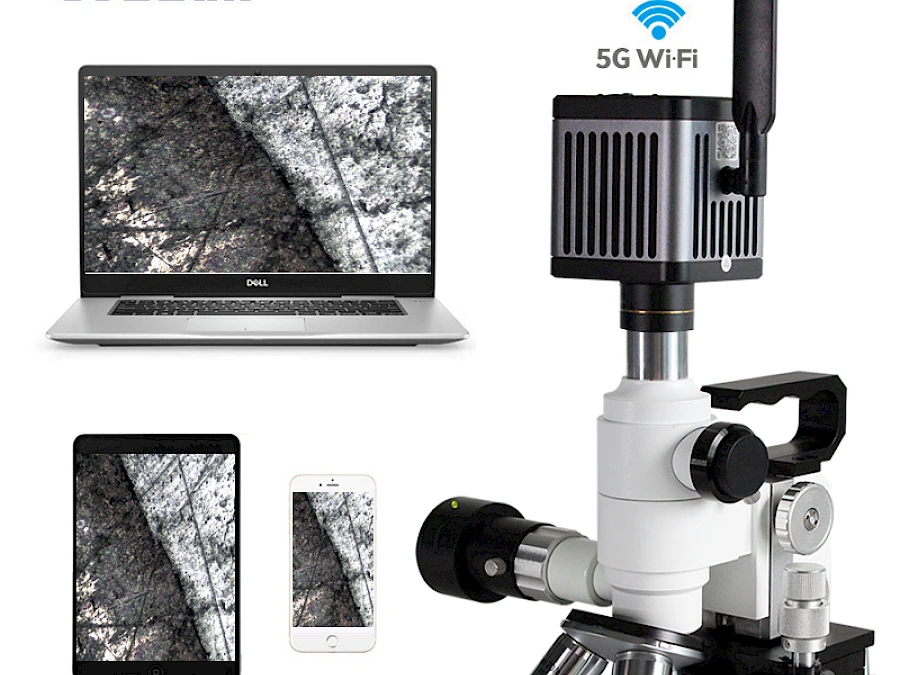

BJX-2000 with WIFI

Specification for BJX-2000
Plan Eyepiece	WF10X(Φ18mm)
Plan Achromatic Objective	10X、20X、40X/0.65（Metallurgical Objective）
Total Mag.	100X-400X
Nosepiece	Triple
Video Adapter	Horizontal Photographic Output
Focus Range	Coarse movement: 30mm Fine movement: 1mm
Magnetic Base	10mm X,Y axis, on-off magnetic foot, Suction force: 25N/cm2, with switch supply
Mechanical Tube	160mm
Illuminators	LED, powered by external dry battery
Weight(Instrument)	Net: 4kg, Gross: 6.5kg
Suitcase Size	Aluminium alloy suitcase: 33X25X20cm

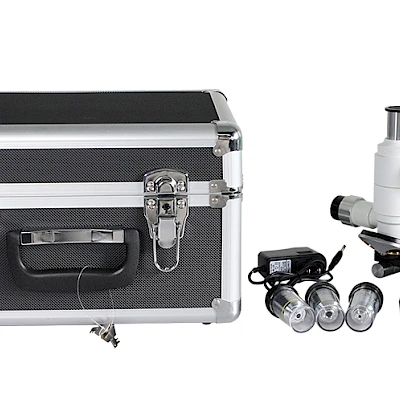

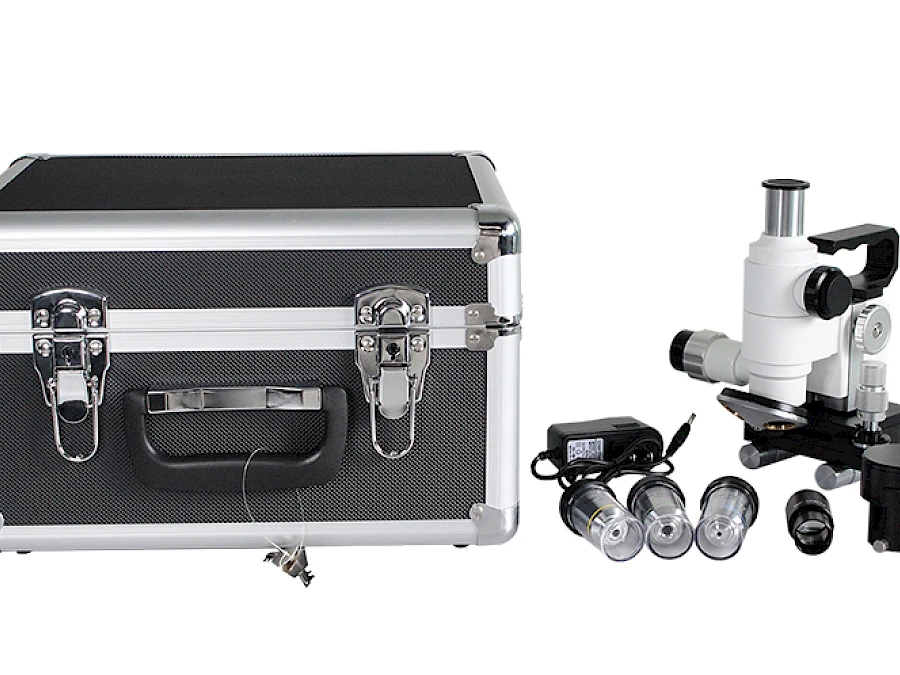

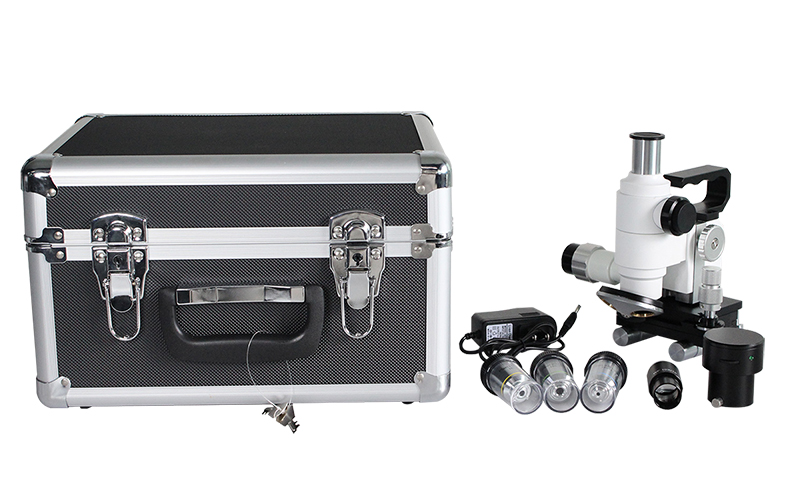

Packing List for BJX-2000
A	Main Body
B	Eyepiece 10X
C	Objective (10X,20X,40X)
D	Magnetic Base
E	Power Cord
F	Suitcase
H	Warranty Card
I	Certificate
J	Operation Manual

Optional Accessories(Please buy the following products if you need)
Plan Eyepiece	WF16X、WF20X
Plan Metallographic Objective	5X、50X、60X、80X、100X
Microscope Camera	USB HD5-12MP Camera, Wifi camera can operate live observation on phone and Ipad directly. Equipped with hot spots for 5 people to observe simultaneously.
Metallographic Analysis Software	GB analysis software with 438 latest standard, in line with American standard and other functions, such as: automatic rating and report.
