BJ-X Portable Metallurgical Microscope with LED (Built-in rechargeable battery)

BJ-X

100X-500X, strong magnetic base, suitable for field work

Core Features

High-precision
Compact and portable, especially suitable for field work
Equipped with strong magnetic base for easy operation, adsorping in any direction

Configurations

LED

brand-new

stable body

WF10X(Φ18mm) /12.5X

BJ-X is a brand-new portable metallurgical microscope. The stable body ensures high-precision, sharp images, bright field of view and good observation. It also available connect digital camera, CCD camera, digits cam for images capture. BJ-X is widely used in non-destructive testing in the field of material analisis of mechanical parts, metallurgy, roll, chemical industry and electrician etc. It is also used in factories and laboratories for casting quality identification, raw material inspection and to identify different metal and alloy organization structure. Applicable to operate inspection and analysis on the large pieces directly.

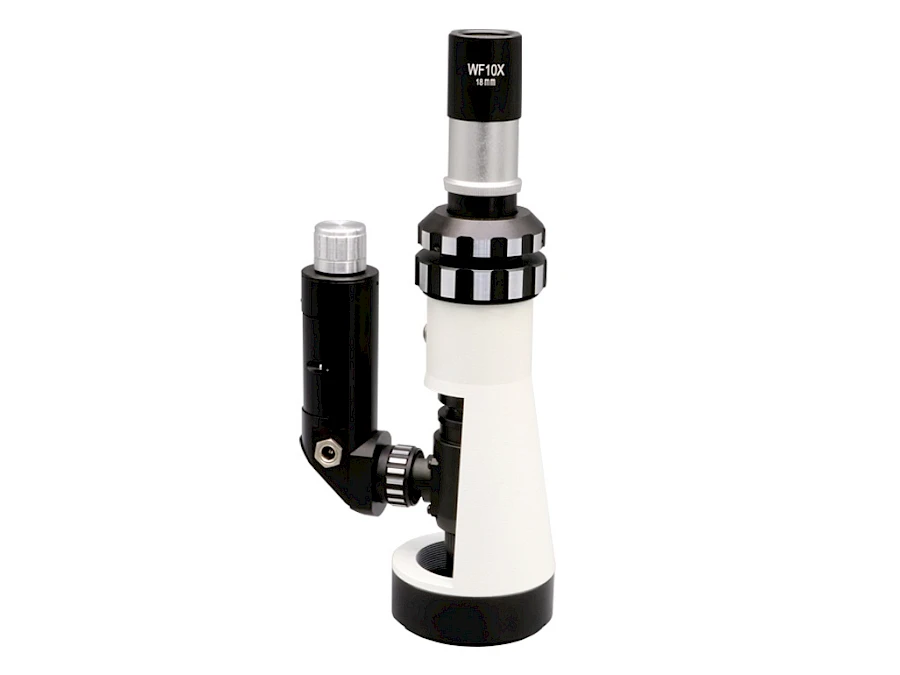

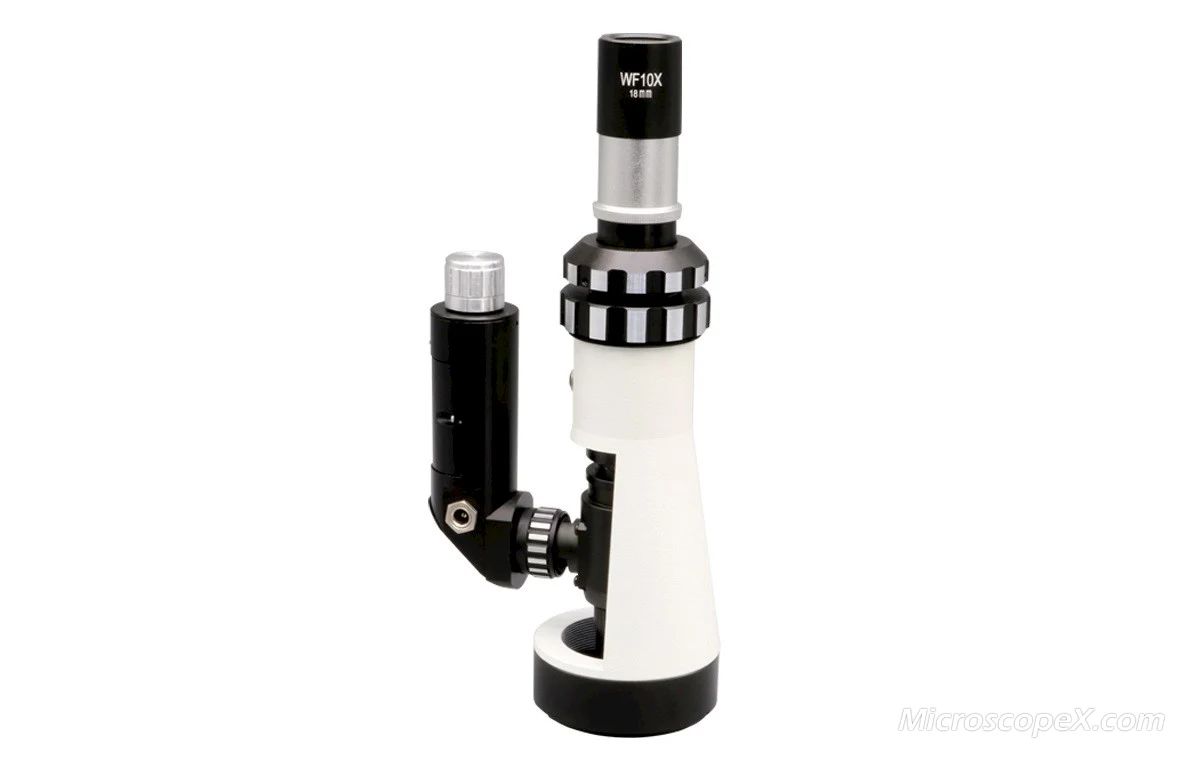

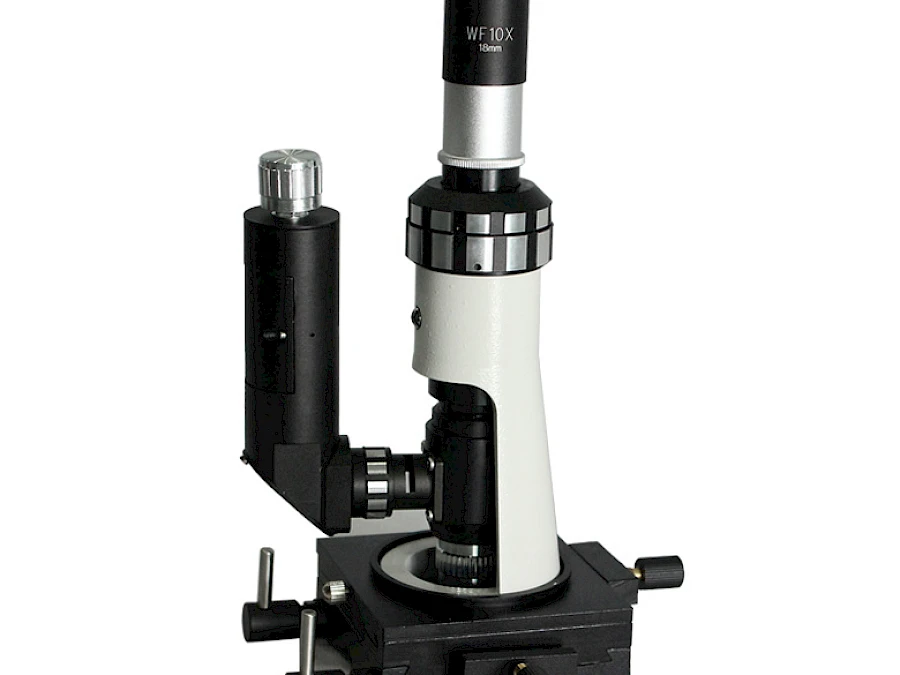

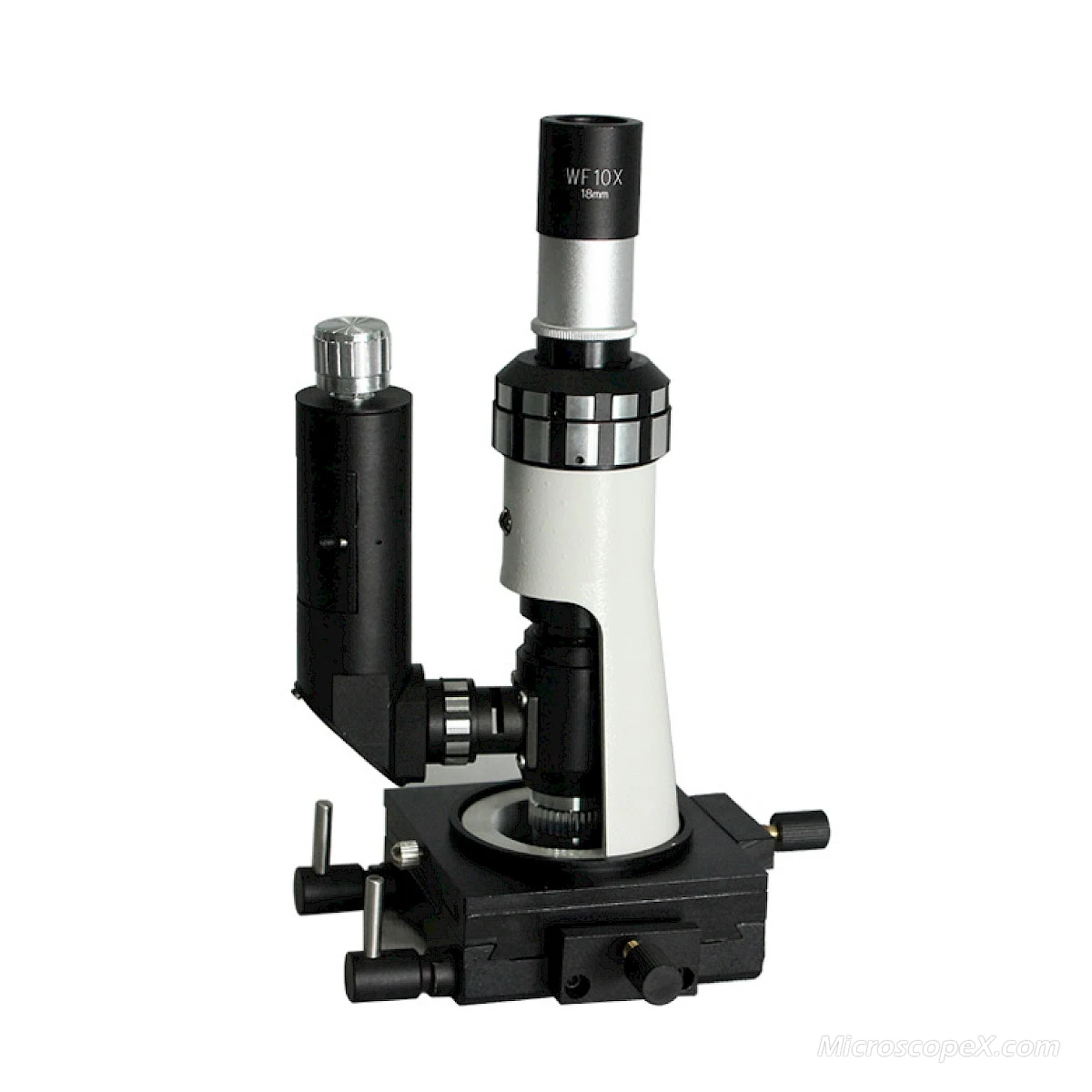

BJ-X

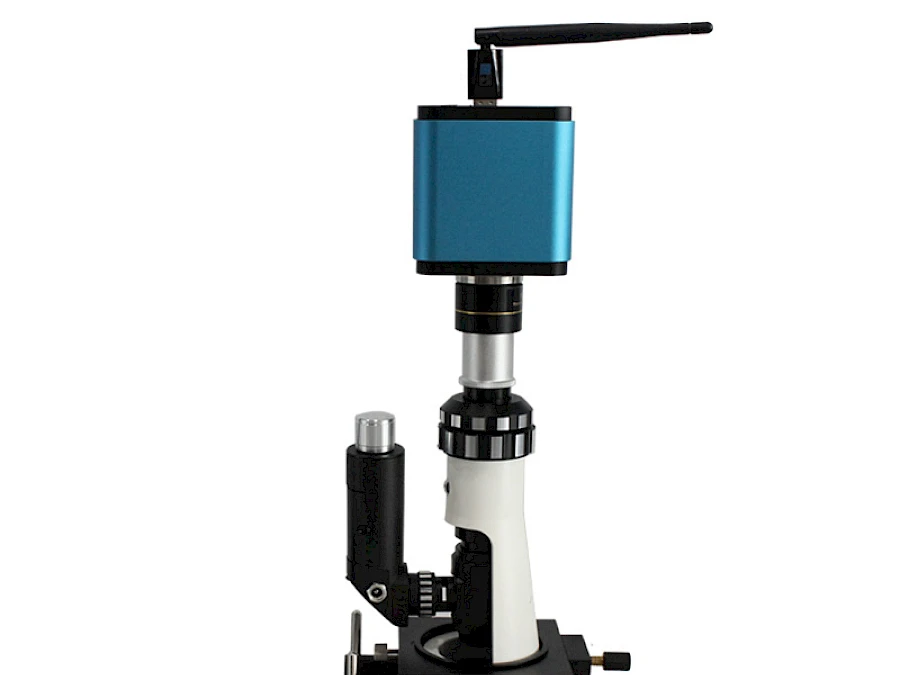

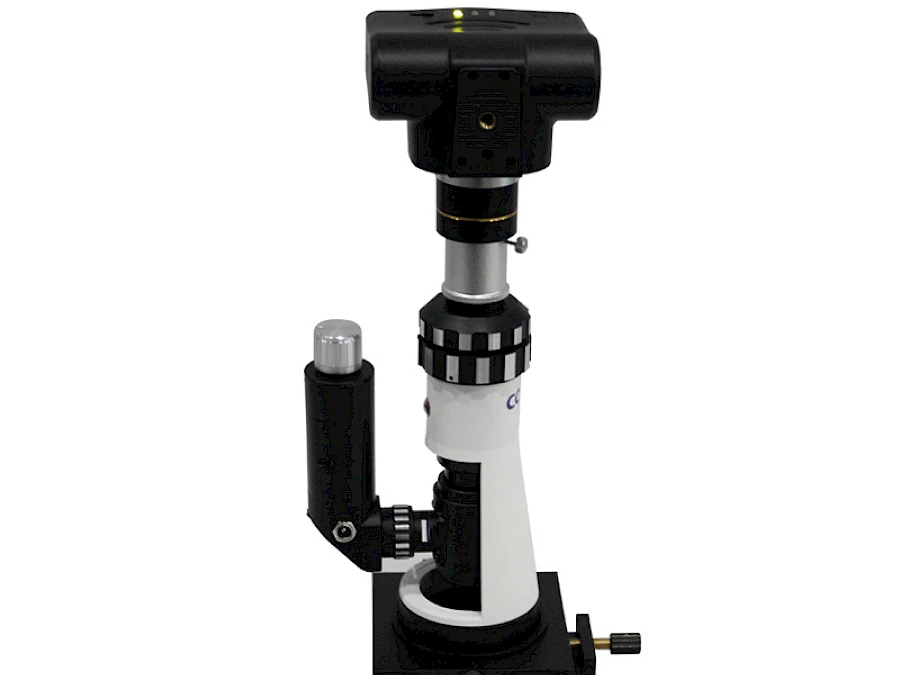

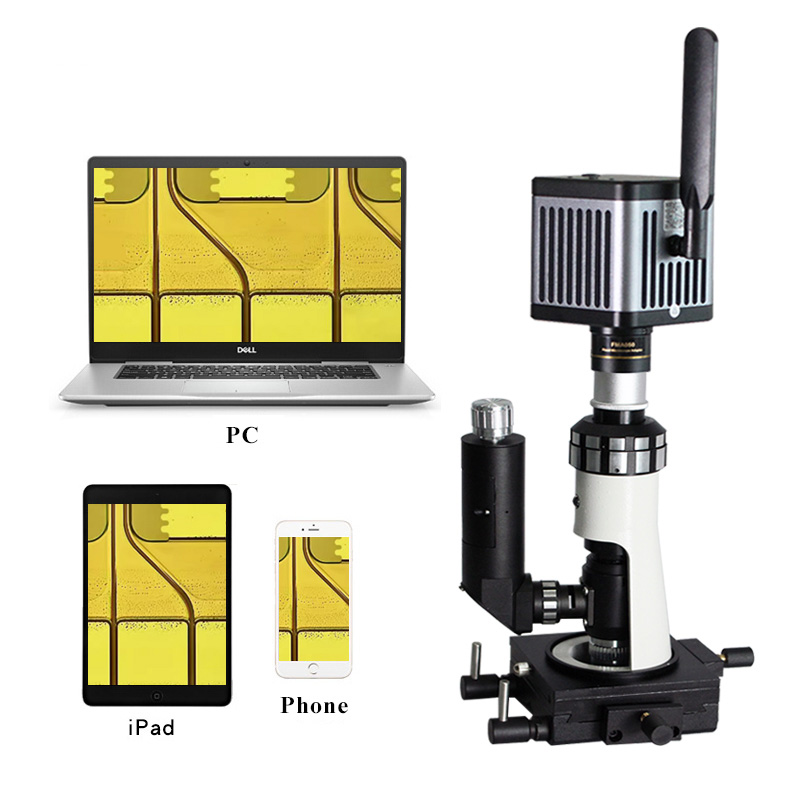

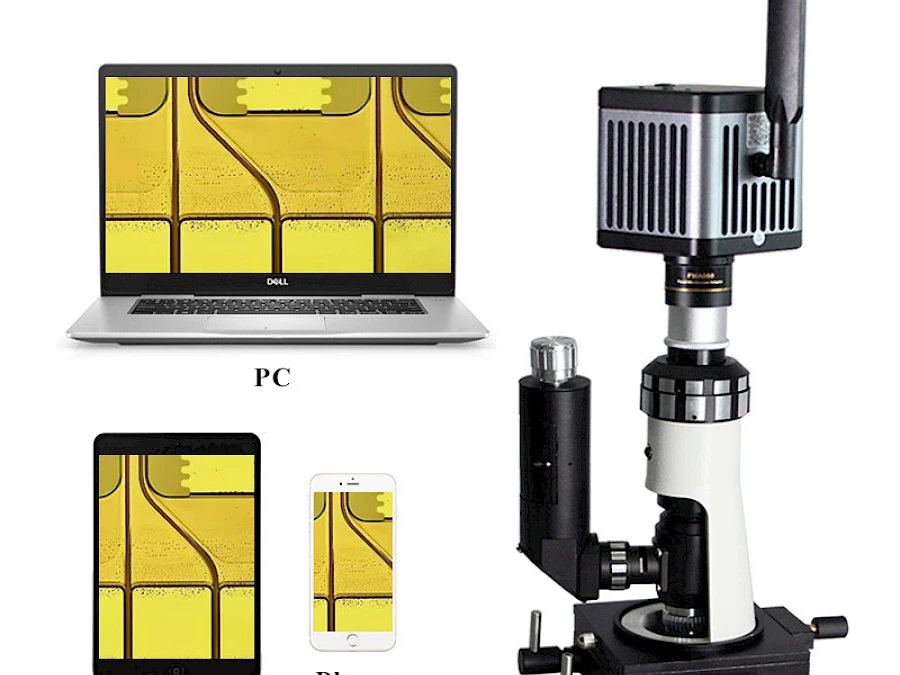

BJ-X and its connected camera

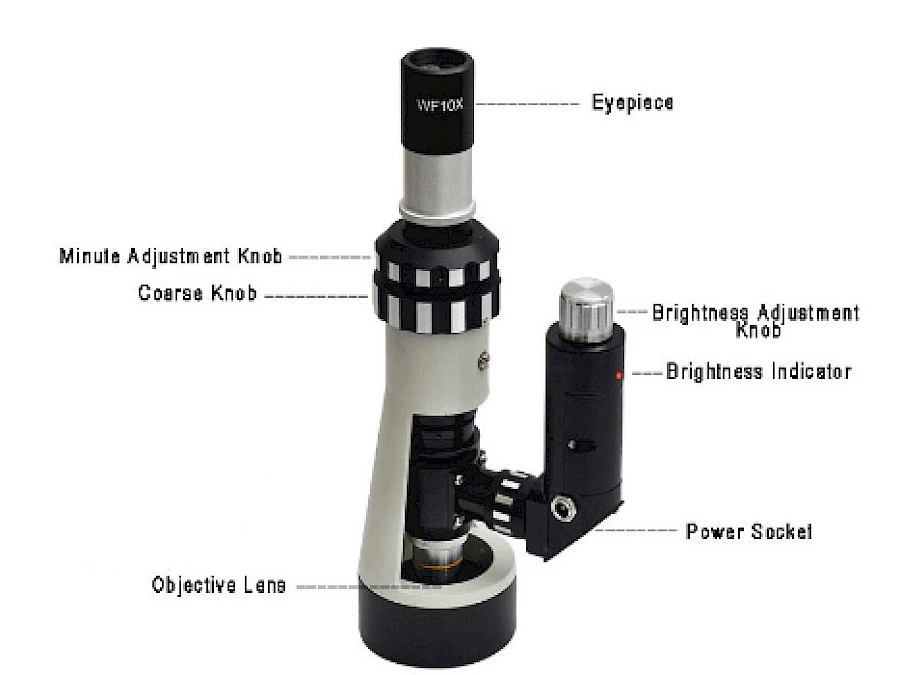

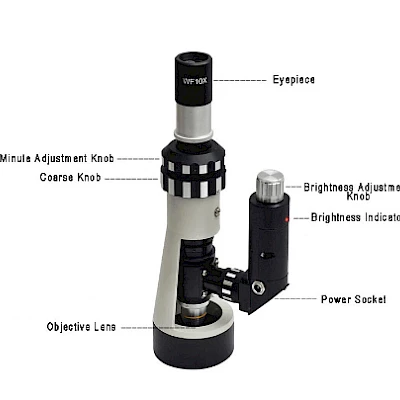

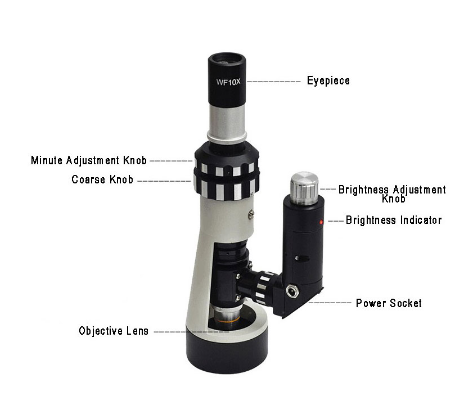

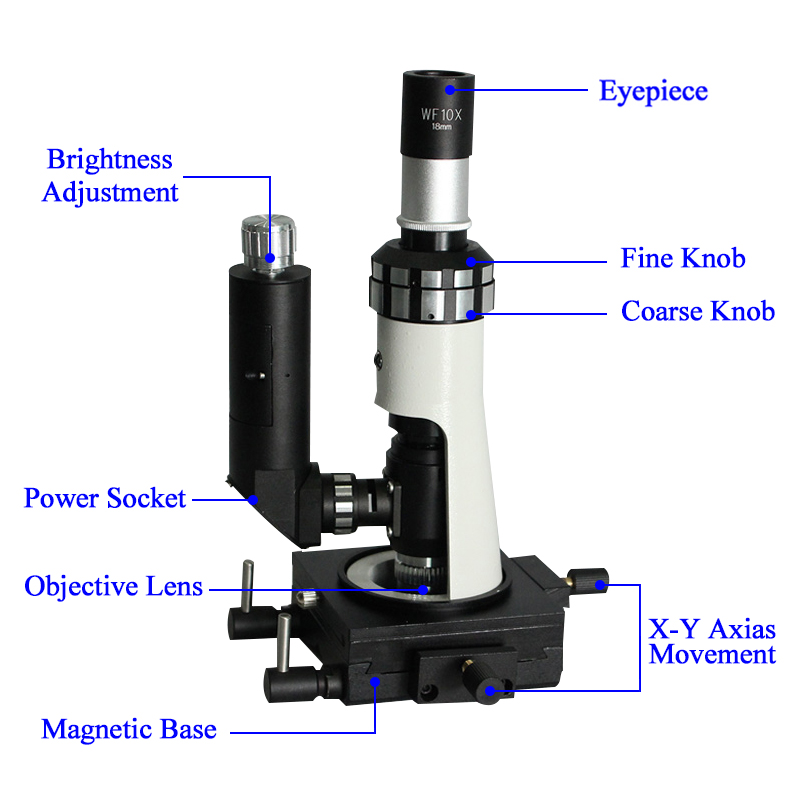

The structure of BJ-X

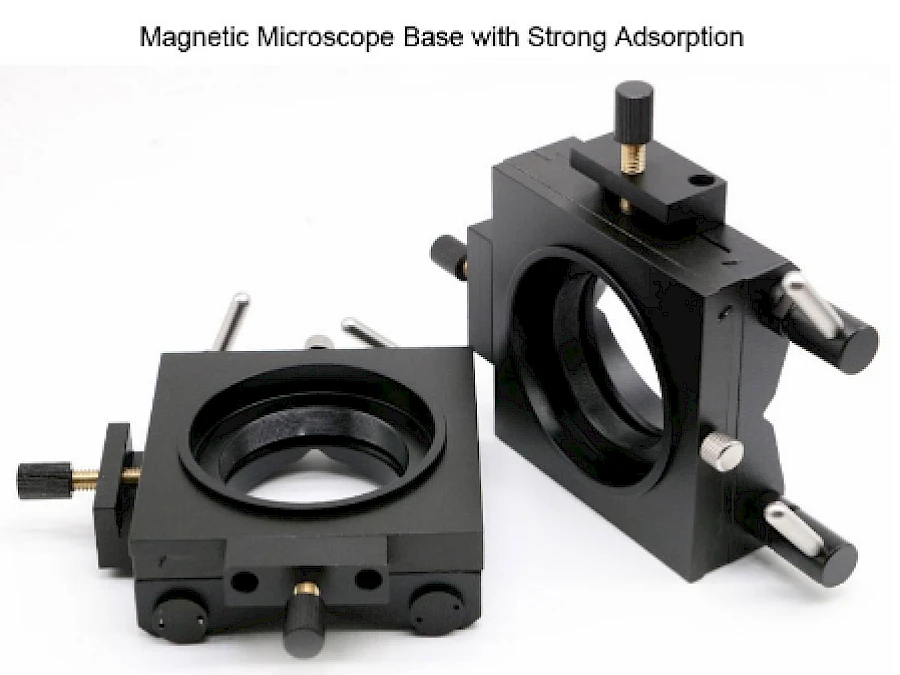

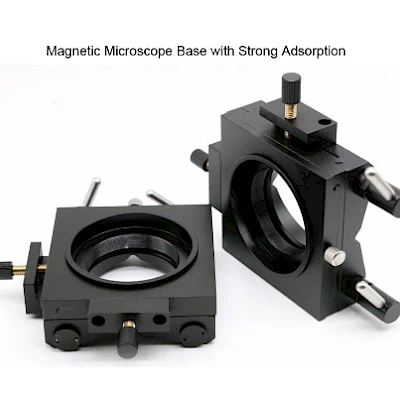

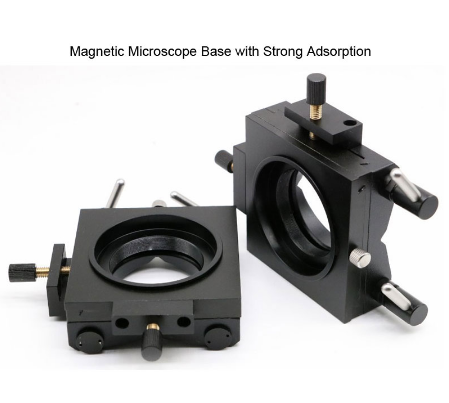

magnetic base

Specification for BJ-X
Plan Eyepiece	WF10X(Φ18mm) /12.5X
Long WD Plan Objective	10X/0.25、40X/0.65(Metallurgical Objective)
Total Mag.	100X-500X
Focusing Range	25mm
Mechanical Tube Length	160mm
Voltage	3.6V
Magnetic Base	90×70mm; Traveling Range: vertical 10mm; horizontal 10mm
Weight	Net: 0.75kg Gross: 0.9kg
Dimension	230×110×70(mm)
LED	Built-in rechargeable battery Adjustable brightness

Packing List for BJ-X
A	Main Body
B	Eyepiece (10X)
C	Achromatic Objective (10X、40X)
D	Power cord
E	Magnetic Base

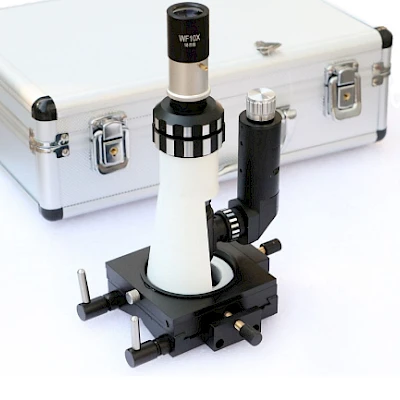

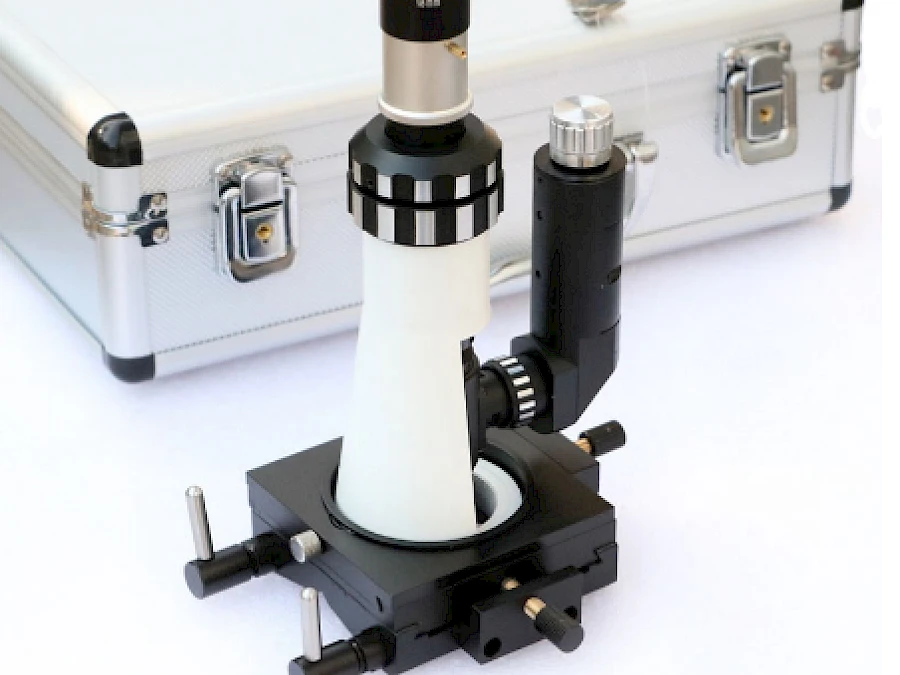

F	Suitcase
G	Warranty card
H	Certificate
I	Operation manual

Optional Microscope Accessories
A	Achromatic Objective	4X、20X、60X、80X
B	Plan Metallographic Objective (Long Working Distance)	10X、20X、40X、60X、100X
Optional Camera System
C	CMOS Electronic Eyepiece	0.35MP、1.3MP、 2MP、 3.2MP、 5MP、 8MP、 10MP，many functions: single, timing, continuous image capture, display scale, measurement etc.
D	DSLR Digital Camera	Over 10 megapixel SLR camera(contains photo and video) such as Canon、 Nikon、 Leica etc.
Optional Analysis Software
E	Metallographic Analysis Software UV-MA	Contains up to 400 items that are fully in line with GB、 YB、 JB、 ASTM and other standards. Many functions: automatic rating of metallographic images, comparison of atlas, calibration and measurement, printing of constant multiple, viewing atlas, output report and image fusion.
F	Granularity Analysis Software UV-G	Contains all basic measurement function, extracts and calculates the area proportion of different color images, and mreasure the particles in the field of view automatically. Distribution and integral distribution map can be output by linear or non-linear statistical means according to the particle size, shape and other parameters. Common statistical data such as D10, D50 and D90 can also be obtained. Available connect multimedia, print,Email and other ways of output.
