BJ-D Portable Field Work Metallurgical Microscope

100X-400X, industrial inspection, material structure identification and analysis, laboratory research

Core Features

Magnetic base which could be fixed on the sample directly
LED illuminator(battery) without additional charge required

Request Quotation Email Phone Back to Products

BJ-D is a field work microscope which is suitable for metallurgical inspection and analysis of large steel, semi-finished or finished pieces. BJ-X provides identification and analysis not only of the steel raw materials’ structures, but also of the steel materials’ structural changes after heat treatment. BJ-D is also applicated to the laboratory for general metallographic inspection. It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.

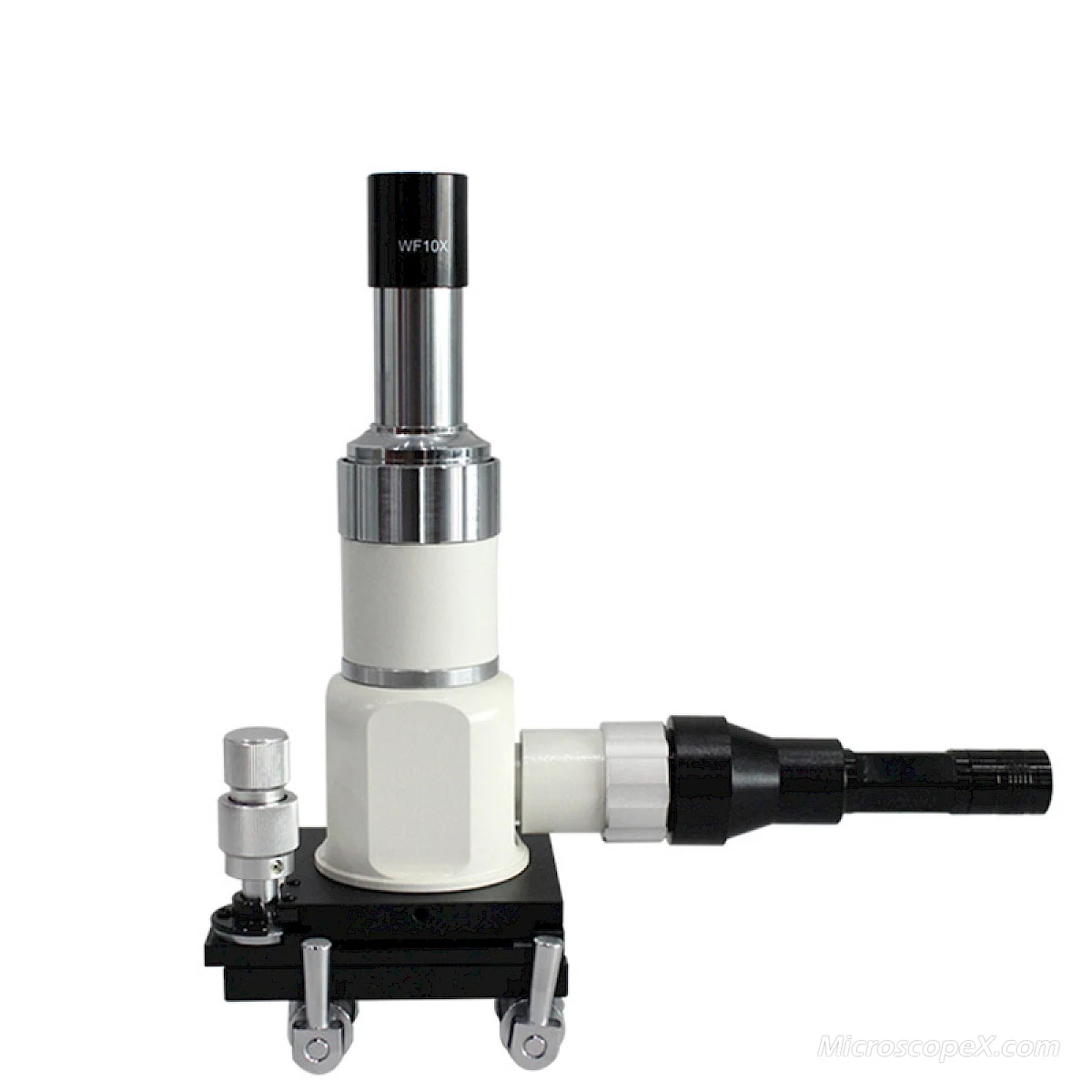

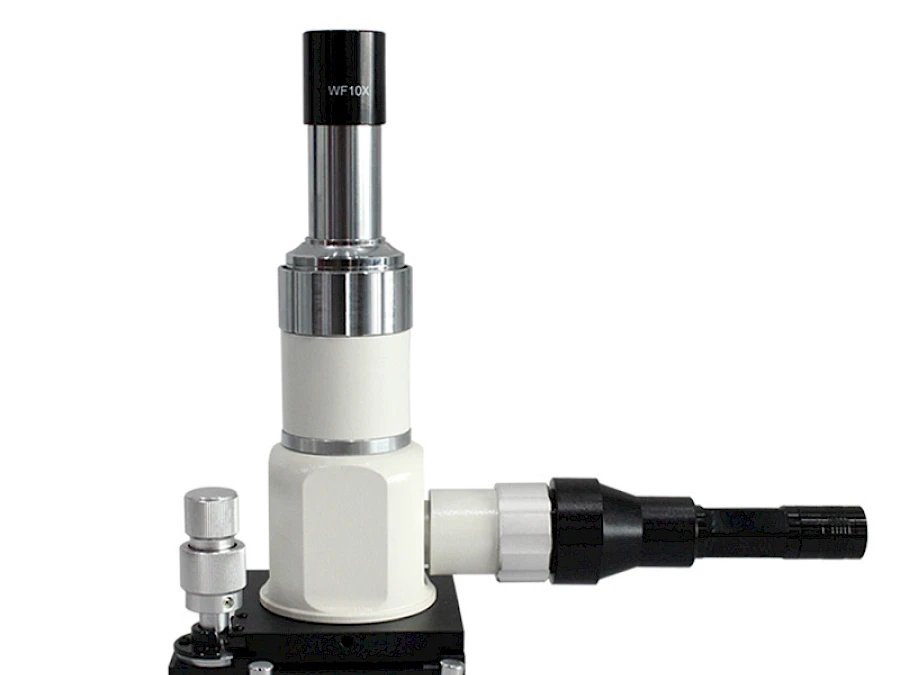

BJ-D

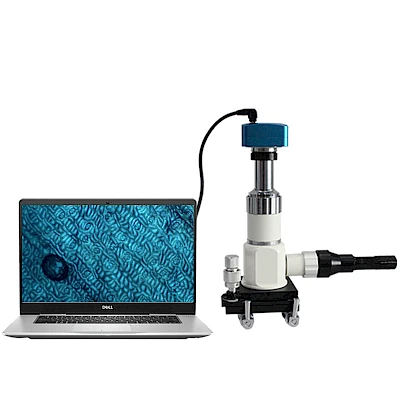

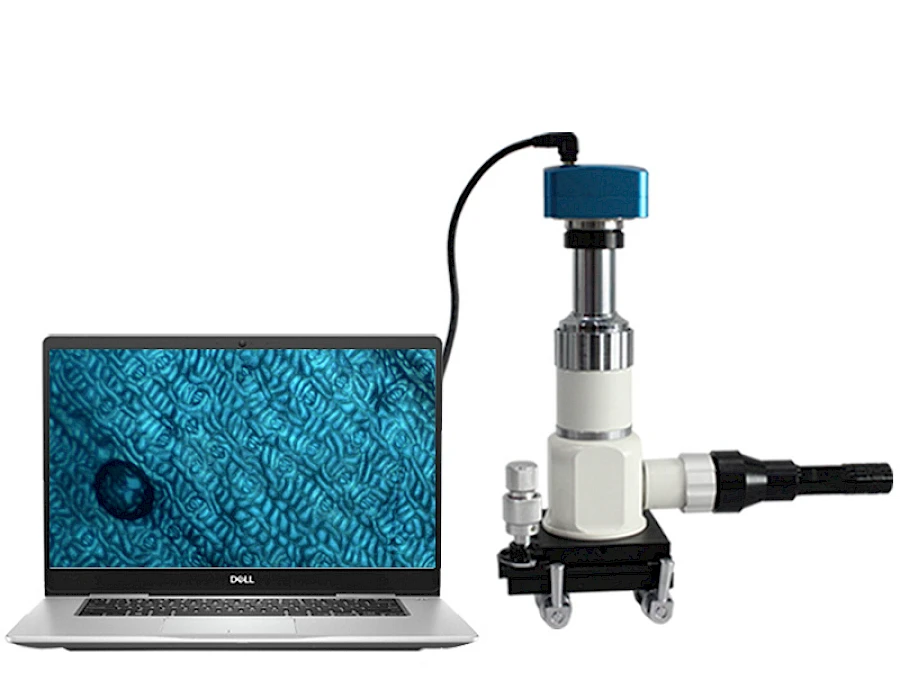

BJ-D and its camera & display

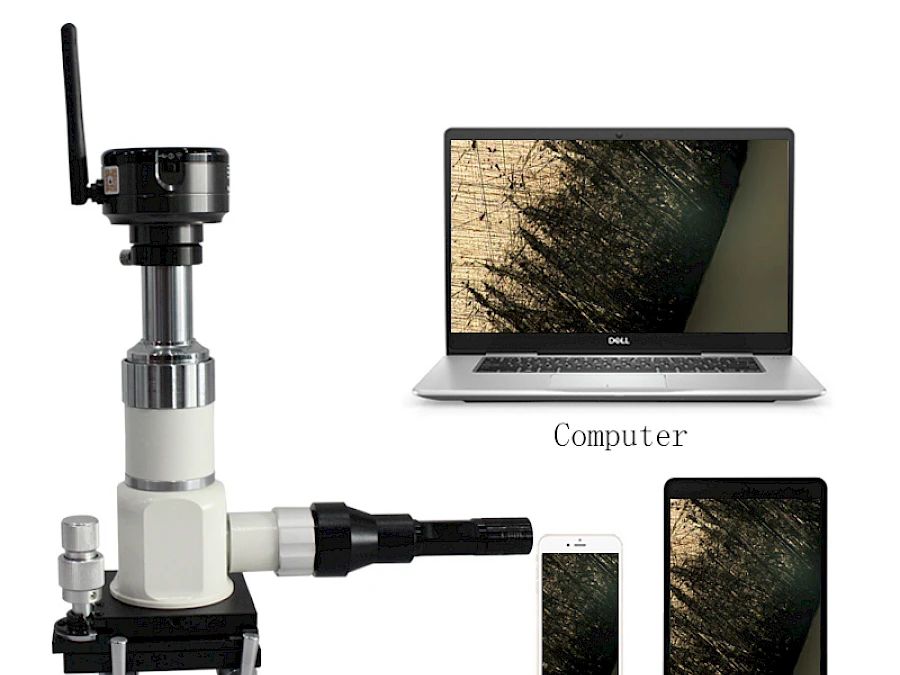

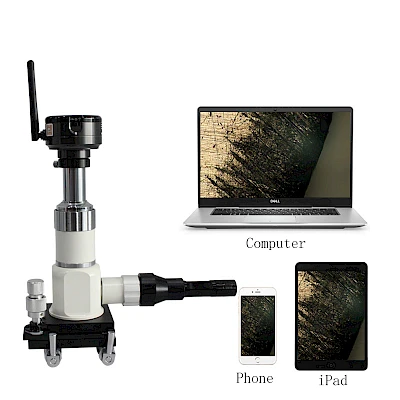

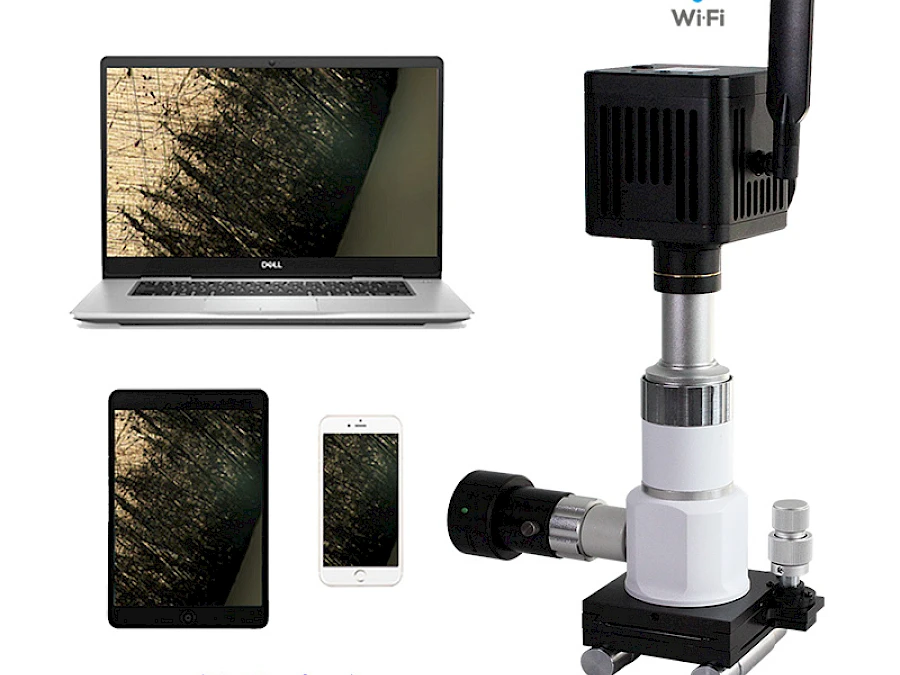

BJ-D and connected Computer & Pad & Phone

Specification for BJ-D
Plan Eyepiece	WF10X(Φ18mm)
Achromatic Objective	10X、20X、40X/0.65(Metallographic Objective)
Total Mag.	100X-400X
Focusing Range	Coarse Focusing: 30mm Fine Focusing: 1mm
Magnetic Base	X,Y axis 10mm, on-off magnetic feet, force: 25N/cm2
Mechanical Tube Length	160mm
Illuminator	LED, powered by external dry battery
Weight	Net: 3kg Gross: 5.5kg
Suitcase Dimension	Aluminium alloy suitcase: 33×25×20(cm)

Optional Accessories(Please buy the following products if you need)
Plan Eyepiece	WF16X、WF20X
Plan Metallographic Objective	5X、50X、60X、80X、100X

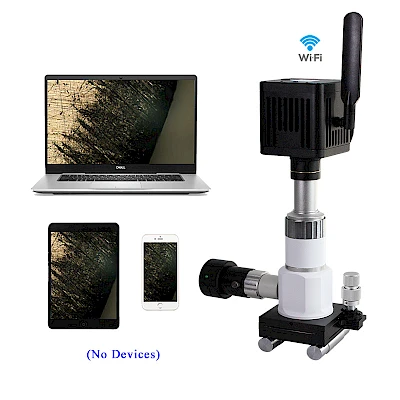

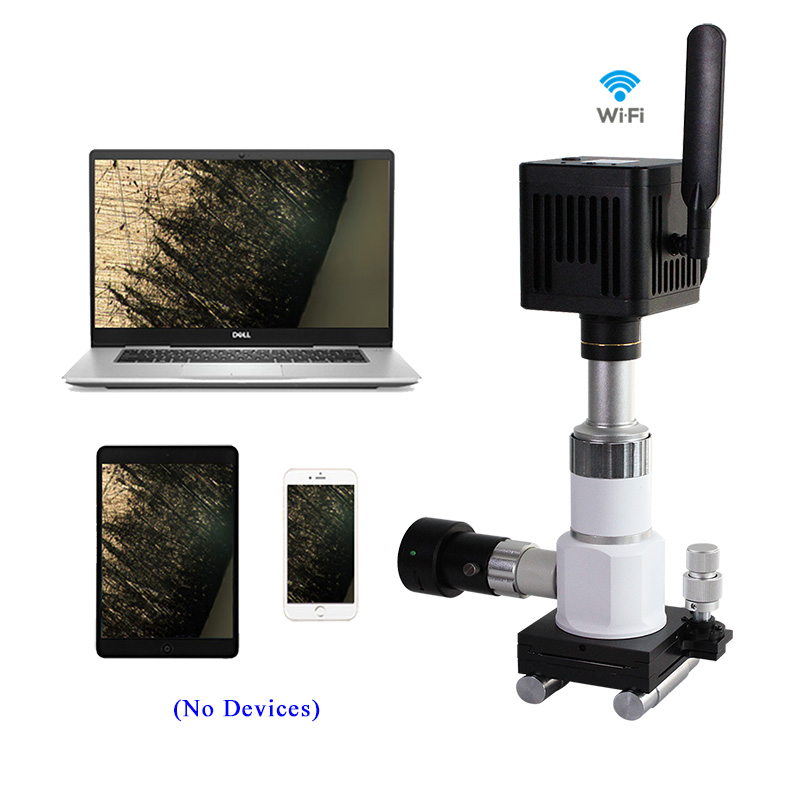

Microscope Camera	USB HD5-12MP Camera, Wifi camera can operate live observation on phone and Ipad directly. Equipped with hot spots for 5 people to observe simultaneously.
Metallographic Analysis Software	GB analysis software with 438 latest standard, in line with American standard and other functions, such as: automatic rating and report.
