BJ-C Hand Type 100X~500X Portable Metallurgical Microscope

BJ-C

Portable, Easy Operation, 100X~500X

Core Features

Compact and portable
Especially suitable for field work
Equipped with optional camera for photograph, measuring, video etc

Configurations

WF10X(Φ18mm)

WF12.5X(Φ15mm)

100X-500X

160mm

3.6V

BJ-C is a portable metallurgical microscope which used to identify the structure of various metal and alloy at site when it is unable to make metallographic specimen. This microscope also widely used in the metallographic analysis of metal material and the structure inspection of large metal piece.

It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.

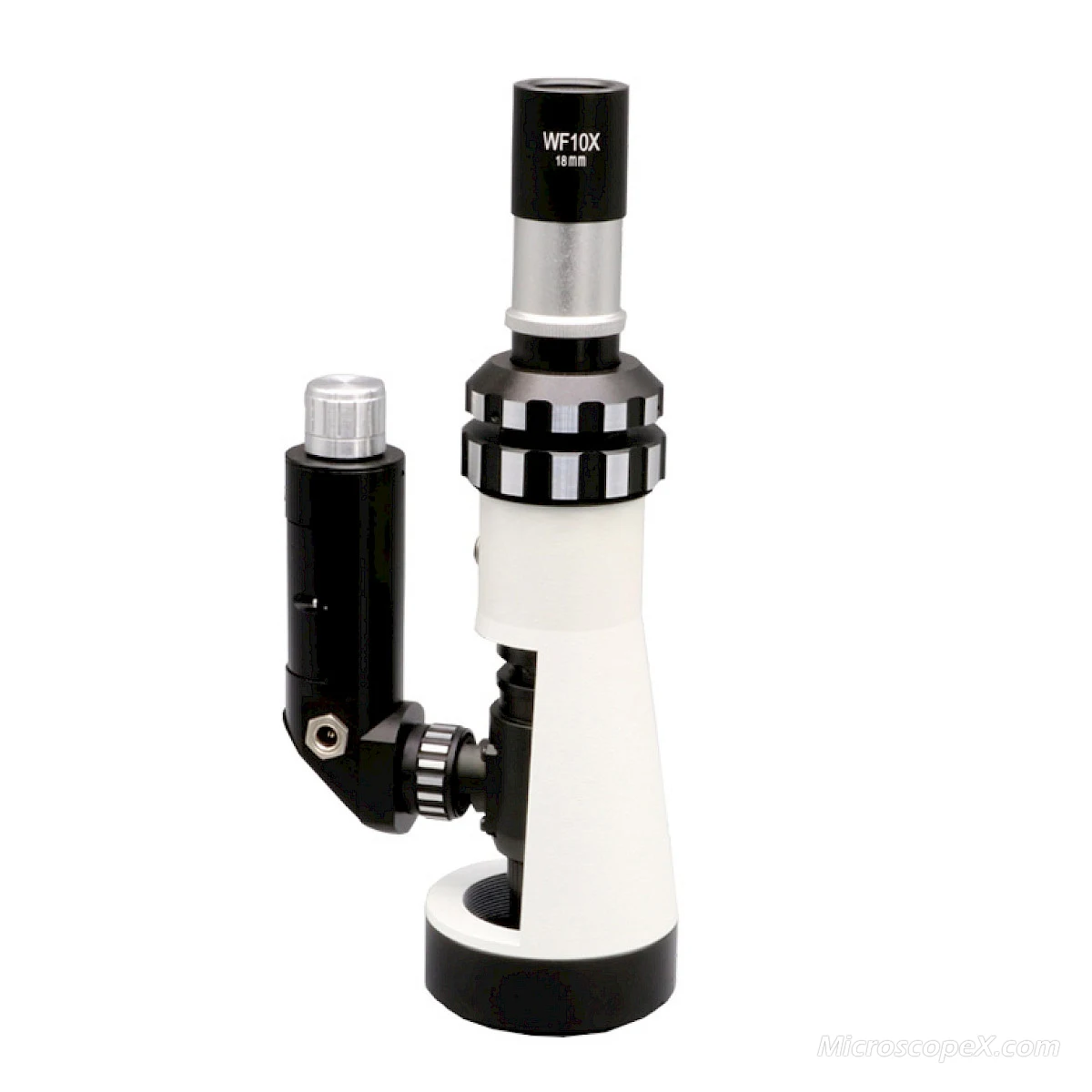

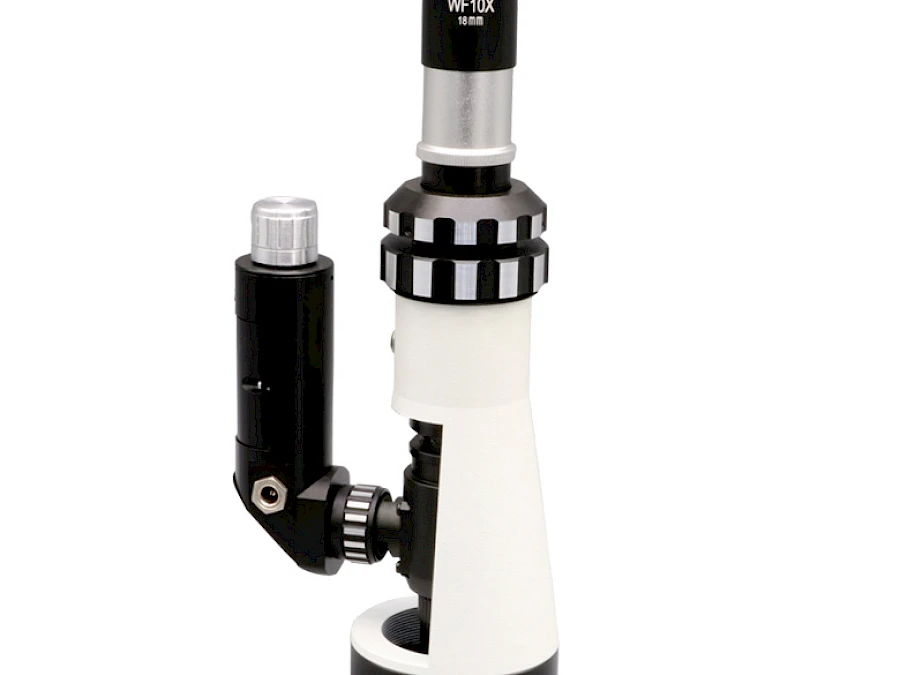

BJ-C

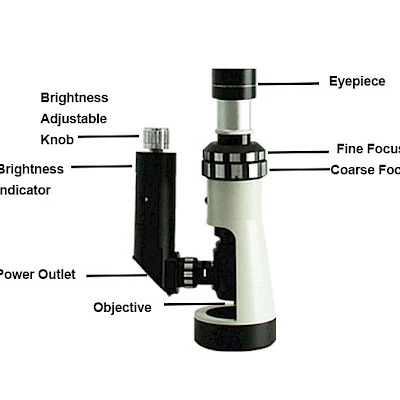

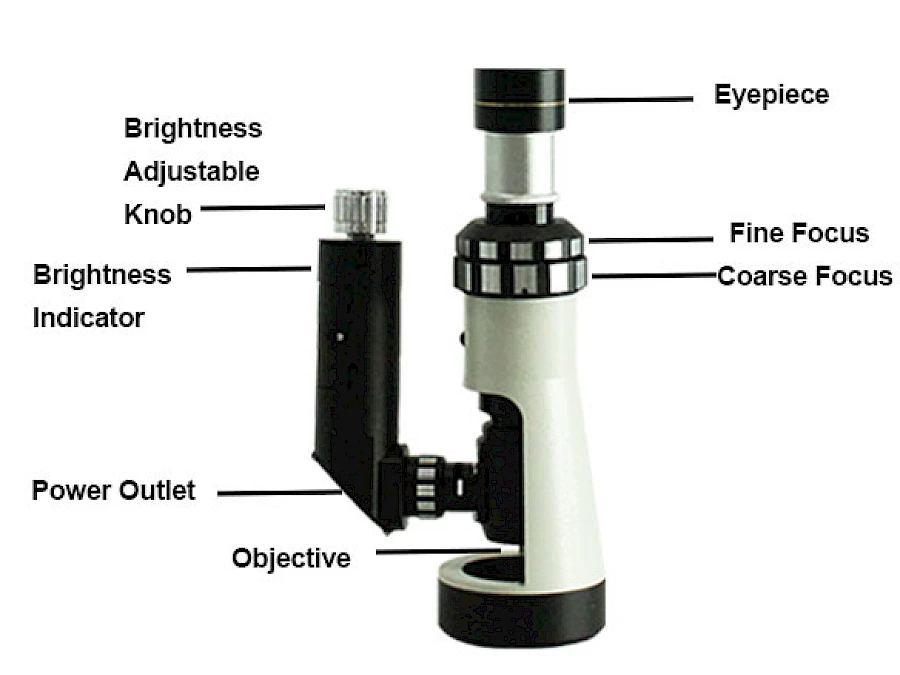

The Structure of BJ-C

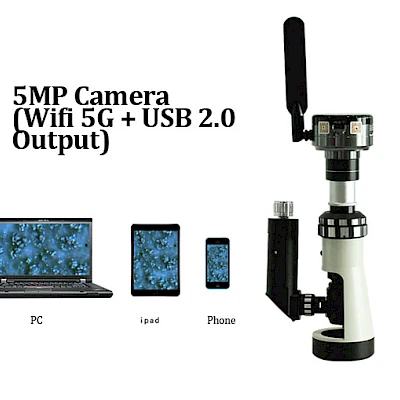

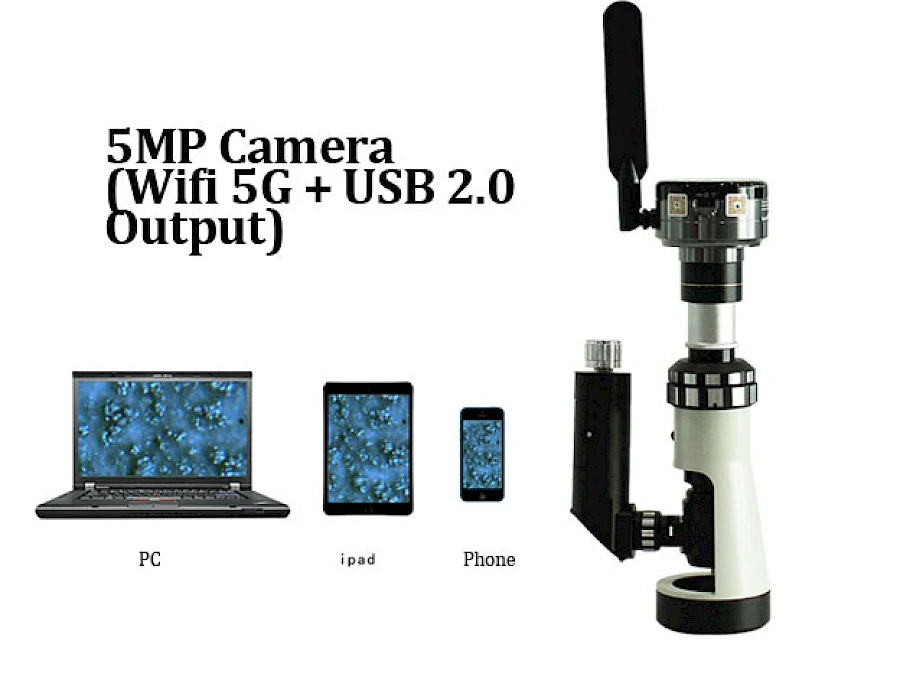

BJ-C and its Connected 5MP Camera

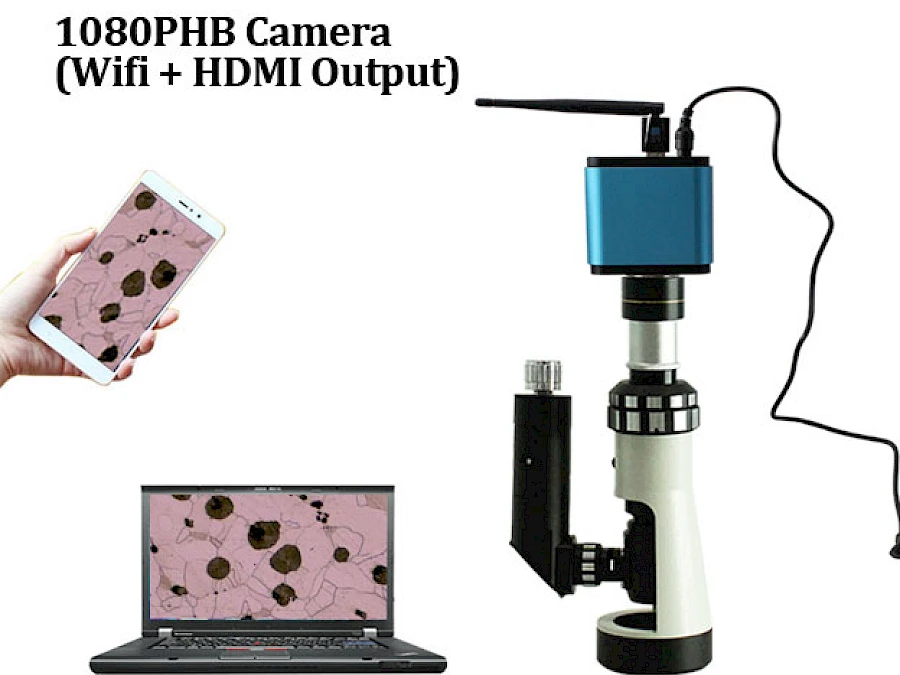

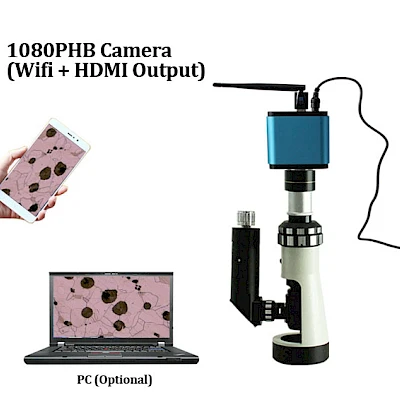

BJ-C and its Connected 1080PHHB Camera

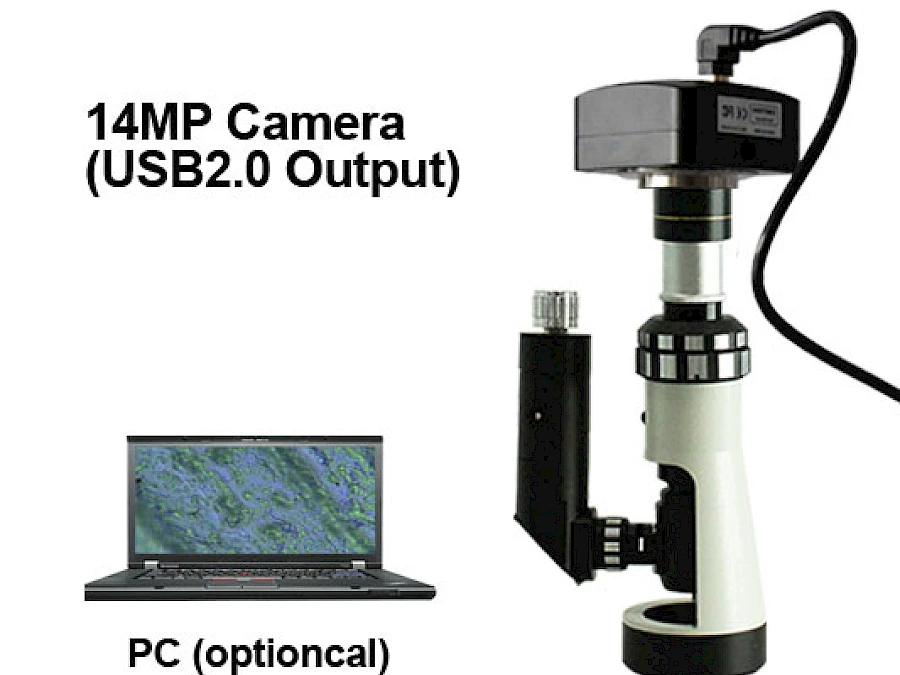

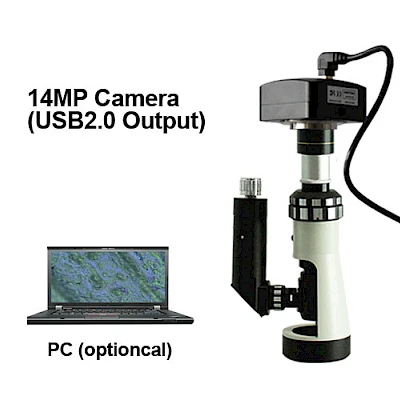

BJ-C and its Connected 14MP Camera

Specification for BJ-C
Plan Eyepiece	WF10X(Φ18mm)、WF12.5X(Φ15mm)
Achromatic Objective	10X 40X/0.65(Metallographic Objective)
Total Mag.	100X-500X
Focusing Range	25mm
Mechanical Tube Length	160mm
Voltage	3.6V
Weight	Net: 0.75kg Gross：0.90kg
Dimension	230×110×70(mm)

Optional Microscope Accessories
A	Achromatic Objective	4X、20X、60X、80X
B	Plan Metallographic Objective (Long Working Distance)	10X、20X、40X、60X、100X
Optional Camera System
C	CMOS Electronic Eyepiece	0.35MP、1.3MP、 2MP、 3.2MP、 5MP、 8MP、 10MP，many functions: single, timing, continuous image capture, display scale, measurement etc.
D	DSLR Digital Camera	Over 10 megapixel SLR camera(contains photo and video) such as Canon、 Nikon、 Leica etc.
Optional Analysis Software
E	Metallographic Analysis Software UV-MA	Contains up to 400 items that are fully in line with GB、 YB、 JB、 ASTM and other standards. Many functions: automatic rating of metallographic images, comparison of atlas, calibration and measurement, printing of constant multiple, viewing atlas, output report and image fusion.
F	Granularity Analysis Software UV-G	Contains all basic measurement function, extracts and calculates the area proportion of different color images, and mreasure the particles in the field of view automatically. Distribution and integral distribution map can be output by linear or non-linear statistical means according to the particle size, shape and other parameters. Common statistical data such as D10, D50 and D90 can also be obtained. Available connect multimedia, print,Email and other ways of output.

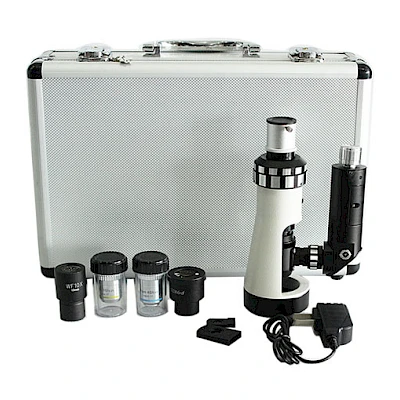

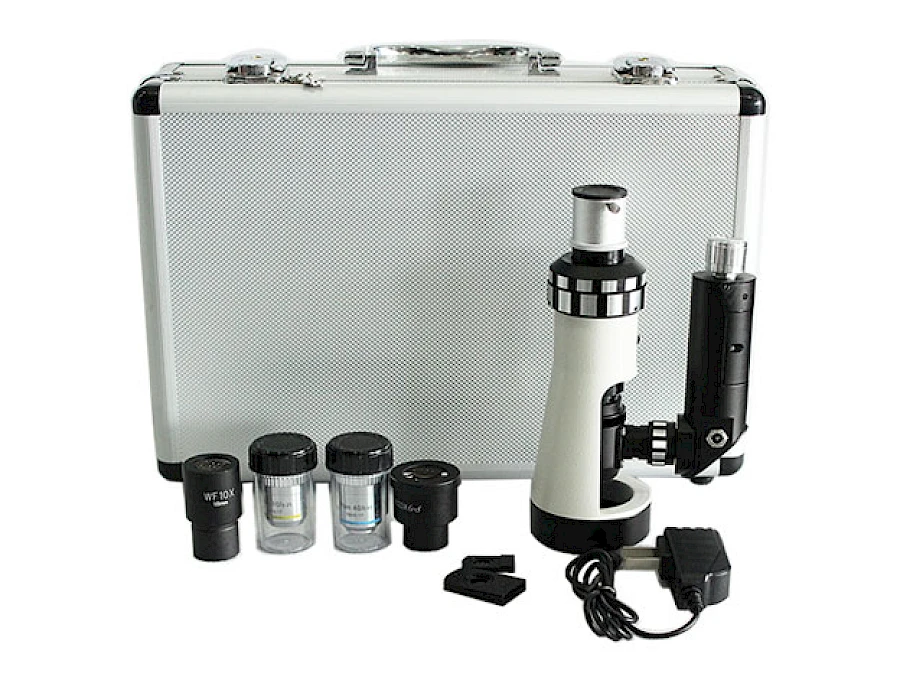

A	Main Body
B	Eyepiece (10X, 12.5X)
C	Achromatic Objective (10X、40X)
D	Power cord
E	Analyzer, Polarizer
F	Suitcase
G	Warranty card
H	Operation manual
