BJ-A Portable Metallurgical Microscope with Eyepiece (10X、12.5X) & Magnetic Base

BJ-A

100X-500X, portable, LED illuminator, up to 40 hours working time

Core Features

Compact and portable, especially suitable for field work
Equipped with LED illuminator, low heat and saves power, for up to 40 hours using after one charging

Configurations

WF10X(Φ18mm)

WF12.5X(Φ13mm)

100X-500X

Magnetic Base

BJ-A is a portable metallurgical microscope which used to identify the structure of various metal and alloy at site when it is unable to make metallographic specimen. This microscope also widely used in the metallographic analysis of metal material and the structure inspection of large metal piece. The instrument can be used for up to 40 hours after charging, it has super long use time and saves power. LED is compact, convenient and safe illuminator which has lower power consumption, higher brightness and longer life.

It is easy for you to analyze and study the images which have been captured, saved and input in site with the optional accessories, such as: CCD, Digital camera, Digital eyepiece, metallographic software.

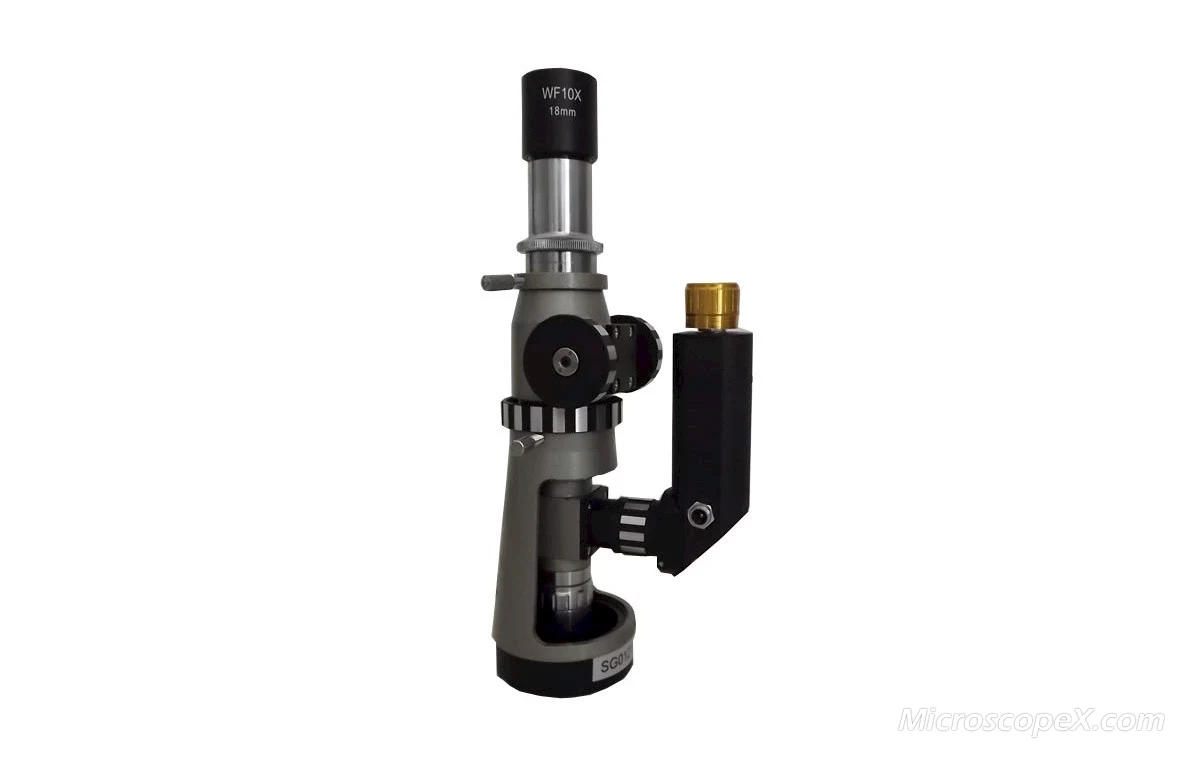

BJ-A

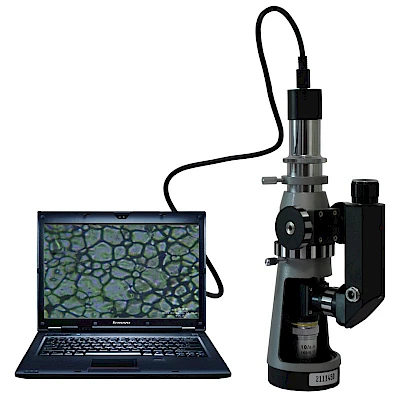

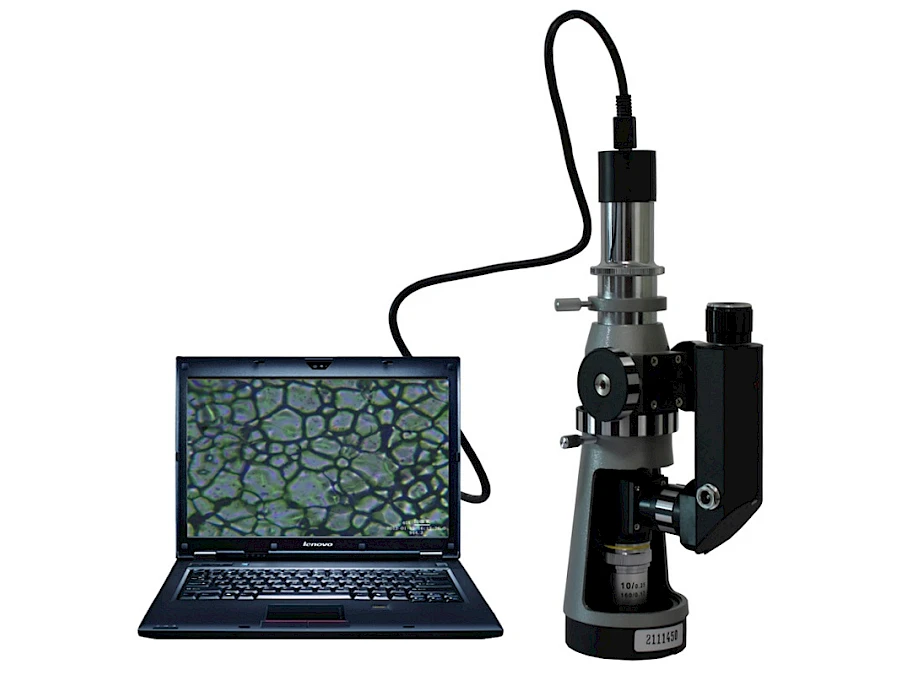

BJ-A and its Computer

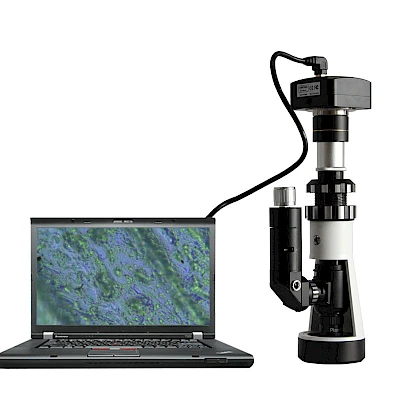

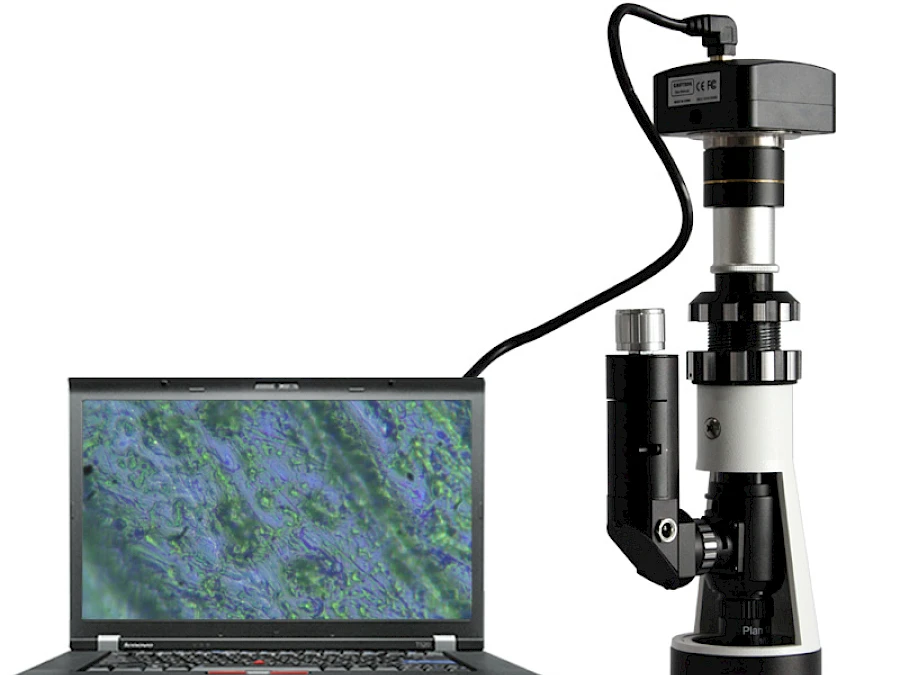

BJ-A & its camera & display

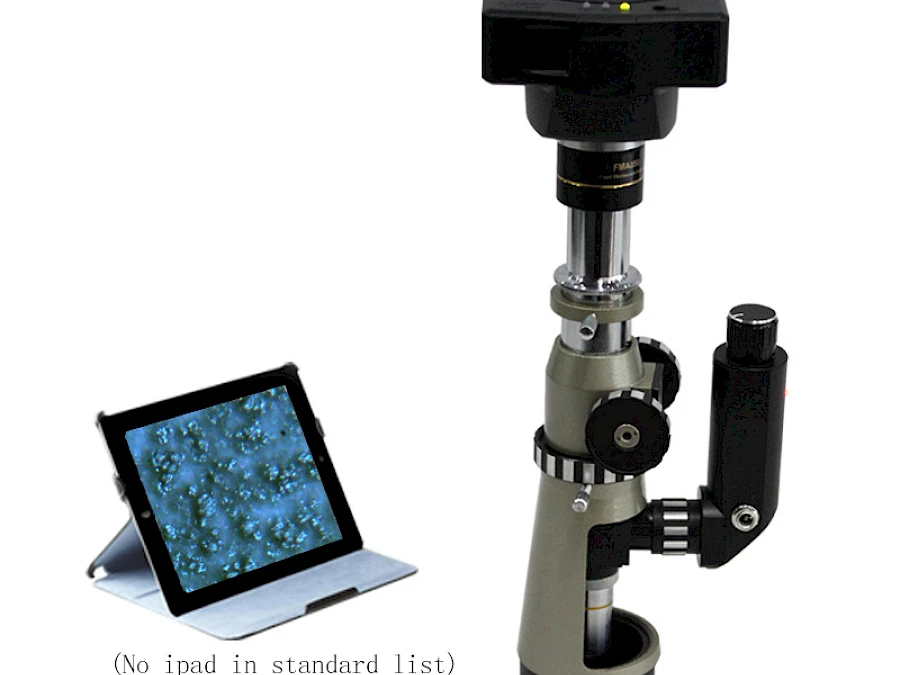

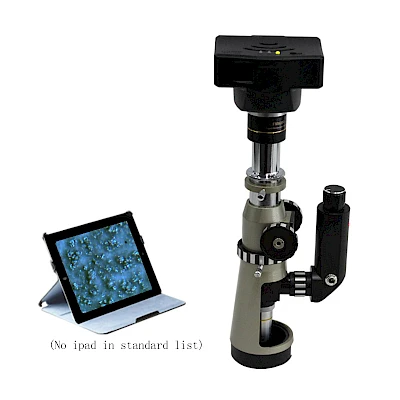

BJ-A and its Pad(hotspot)

Specification for BJ-A
Plan Eyepiece	WF10X(Φ18mm)、WF12.5X(Φ13mm)
Achromatic Objective	10X、40X/0.65(Metallographic Objective)
Total Mag.	100X-500X
Focusing Range	25mm
Mechanical Tube Length	160mm
Voltage	3.6V
Weight	Net: 0.75kg Gross: 0.90kg
Dimension	230×110×70(mm)

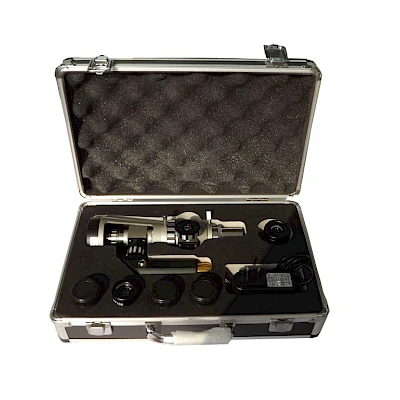

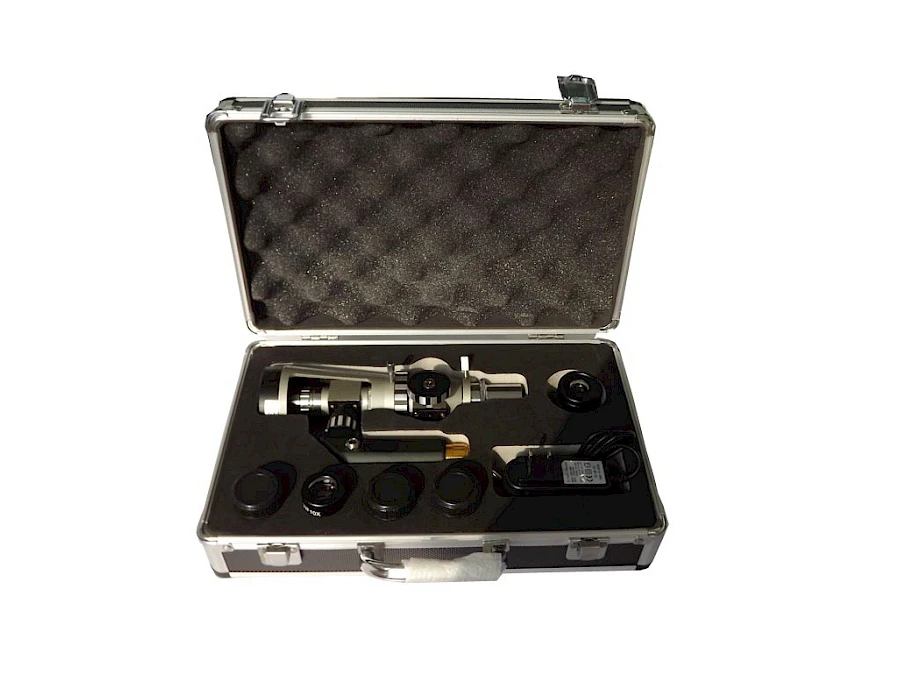

Standard Packing List
A	Main Body
B	Eyepiece (10X、12.5X)
C	Achromatic Objective (10X、40X)
D	Power cord
E	Magnetic Base
F	Suitcase
G	Warranty card
H	Certificate
I	Operation manual

Optional Microscope Accessories
A	Achromatic Objective	4X、20X、60X、80X
B	Plan Metallographic Objective (Long Working Distance)	10X、20X、40X、60X、100X
Optional Camera System
C	CMOS Electronic Eyepiece	0.35MP、1.3MP、 2MP、 3.2MP、 5MP、 8MP、 10MP，many functions: single, timing, continuous image capture, display scale, measurement etc.
D	DSLR Digital Camera	Over 10 megapixel SLR camera(contains photo and video) such as Canon、 Nikon、 Leica etc.
Optional Analysis Software
E	Metallographic Analysis Software UV-MA	Contains up to 400 items that are fully in line with GB、 YB、 JB、 ASTM and other standards. Many functions: automatic rating of metallographic images, comparison of atlas, calibration and measurement, printing of constant multiple, viewing atlas, output report and image fusion.
F	Granularity Analysis Software UV-G	Contains all basic measurement function, extracts and calculates the area proportion of different color images, and mreasure the particles in the field of view automatically. Distribution and integral distribution map can be output by linear or non-linear statistical means according to the particle size, shape and other parameters. Common statistical data such as D10, D50 and D90 can also be obtained. Available connect multimedia, print,Email and other ways of output.
