TV Aadapter

P95 Series

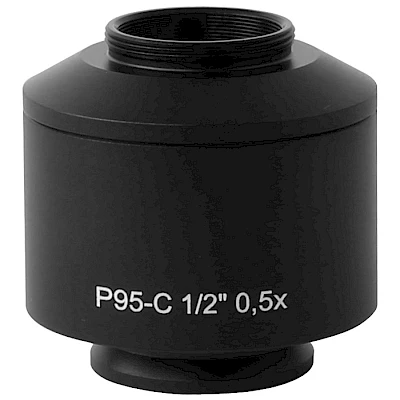

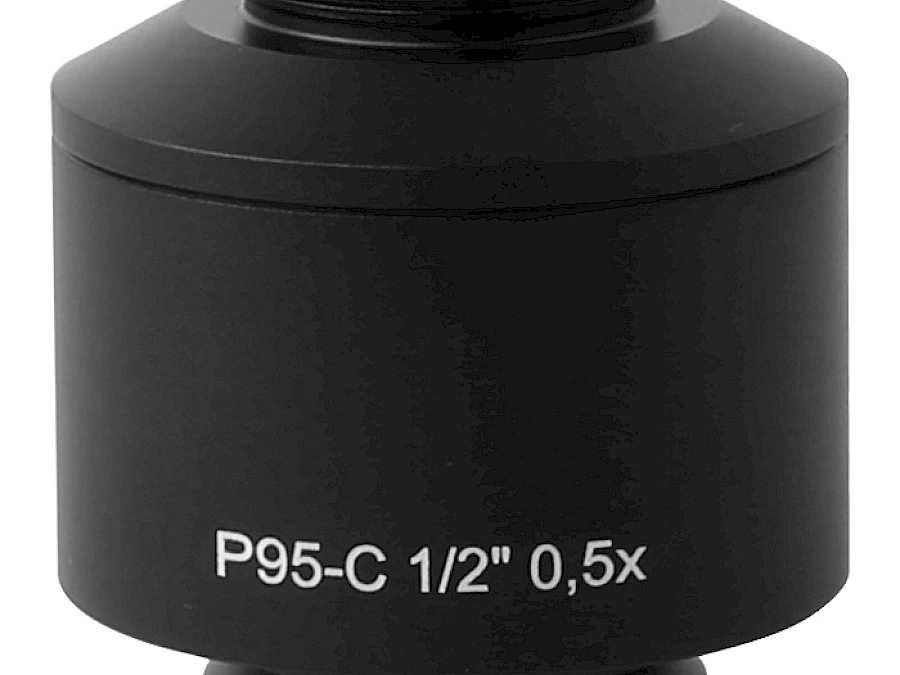

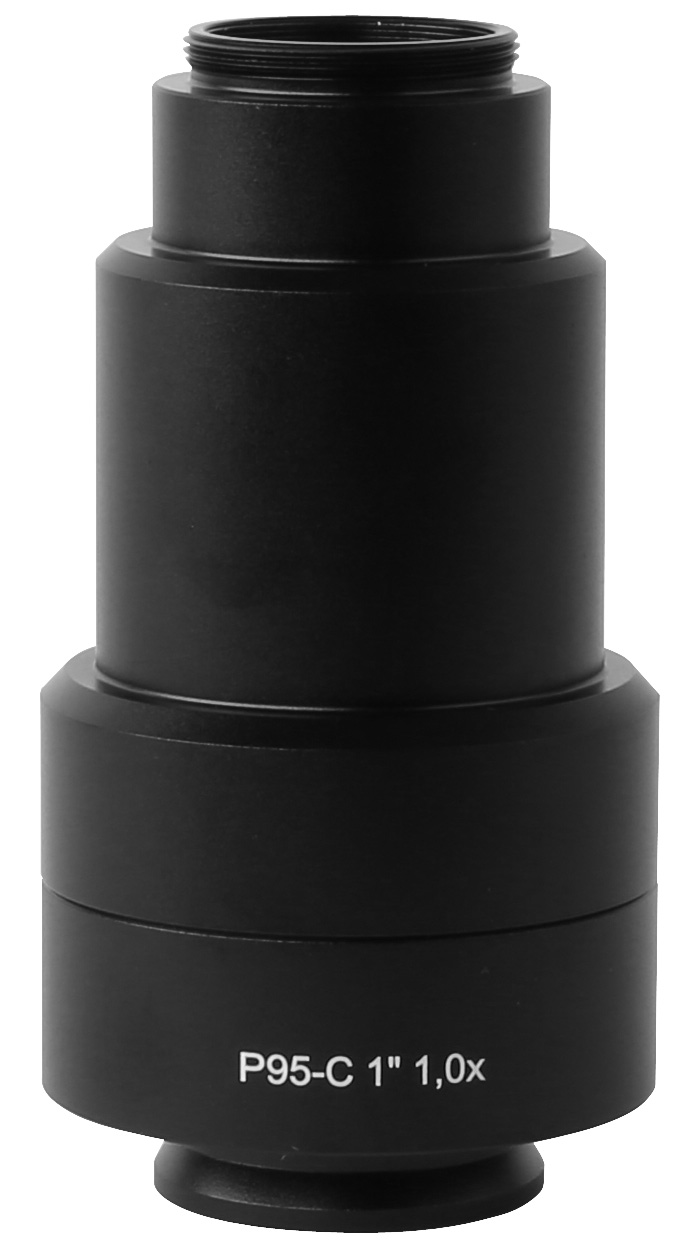

P95 Series Zeiss Phototube to C-Mount TV Adapter

connect to microscope, promote the imaging

Core Features
  • built-in different reduction lens (1.2X,1X, 0.8X, 0.65X, 0.5X, 0.35X)
  • build of anodized aluminum
  • low light deficiency
  • parfocal with objective lenses
  • diffraction limited MTF
  • convert the trinocular microscope phototube/head/port to traditional C-Mount type
Request Quotation Email Phone Back to Products

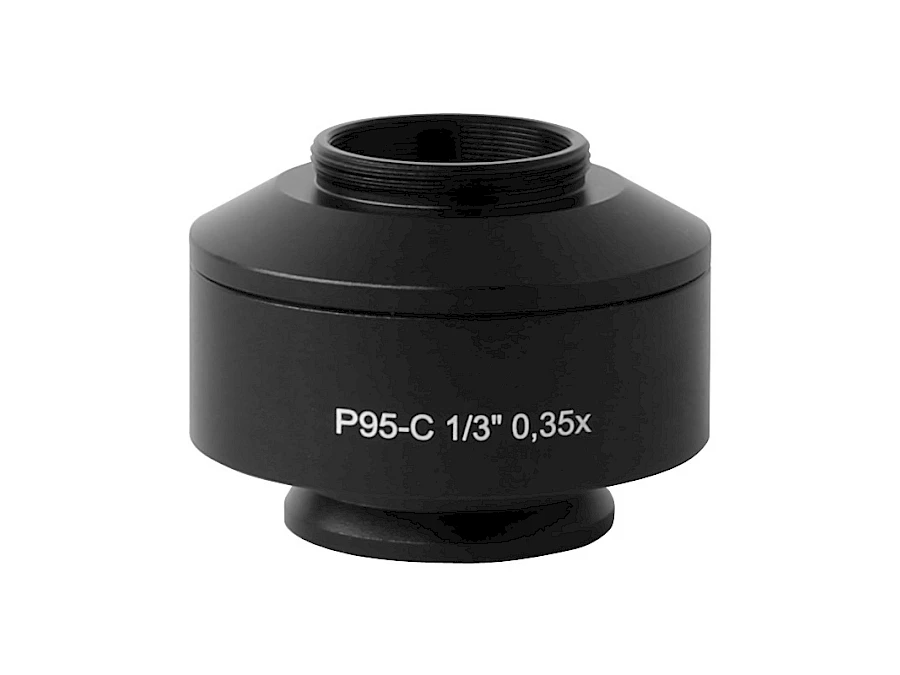

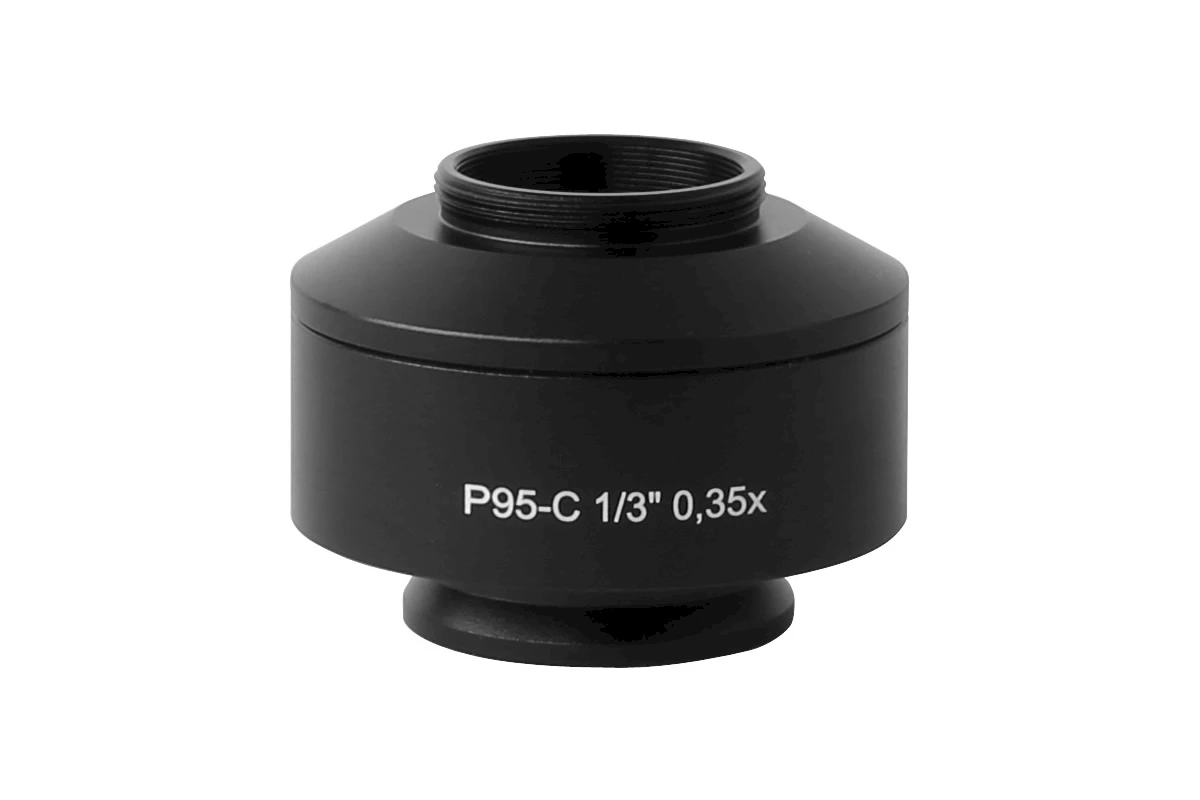

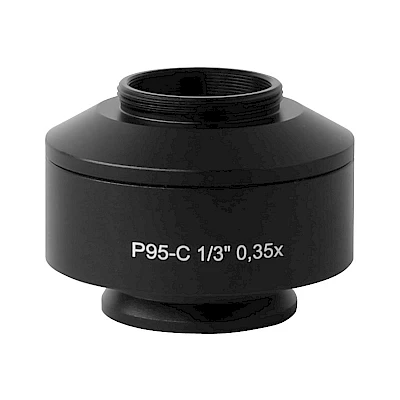

P95-C 1/3” 0.35x
  • Convert the Zeiss trinocular microscope phototube/head/port (have standard ISO 30 mm(1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)
  • With different built-in reduction lens (1.2X,1X, 0.8X, 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
  • Can be installed in Zeiss UIS trinocular tube such as: Zeiss PrimoStar series and Zeiss Primo vert series
  • Build of material: anodized aluminum
  • Telecentric optics with low light deficiency
  • Parfocal with different microscope objective lenses
  • Diffraction limited MTF
  • Aperture totally coupled with UIS microscope objective's exit pupil

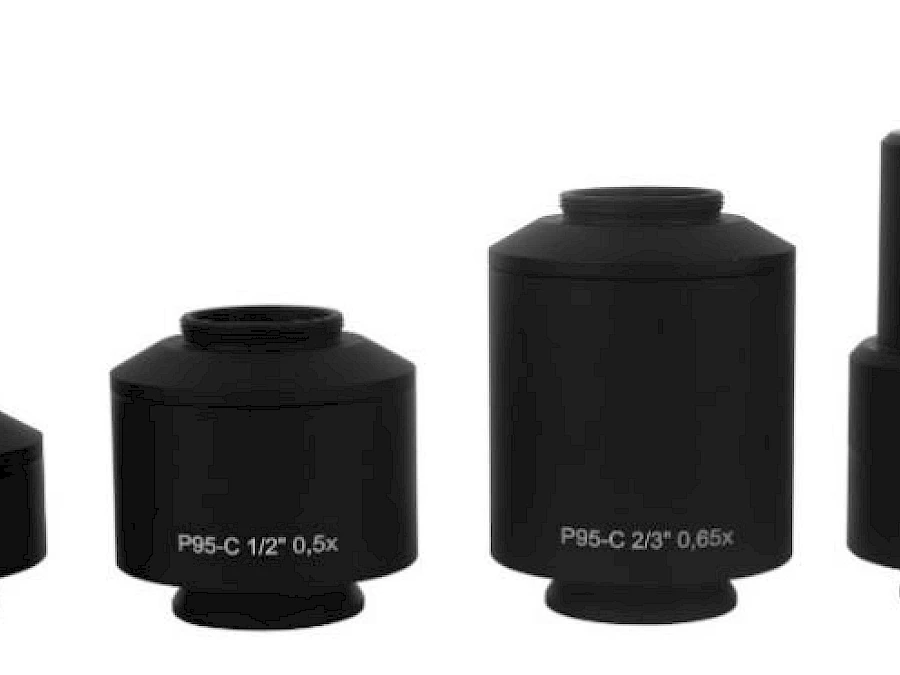

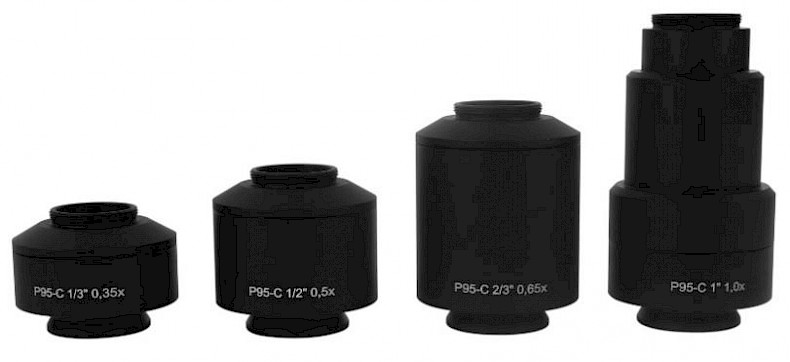

Zeiss phototube to C-mount camera adapter

Zeiss phototube to C-mount camera adapter
