Olympus TV Adapter

Olympus Phototube to C-Mount TV Adapter

operate shooting, import special digital camera interface

Core Features

Convert the Olympus trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)
With different built-in reduction lens (1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
Can be installed in UIS trinocular tube such as : BX series, BX2 series, CX series, CX2 series, MX series
Build of material: anodized aluminum
Telecentric optics with low light deficiency
Parfocal with different microscope objective lenses
Diffraction limited MTF
Aperture totally coupled with UIS microscope objective's exit pupil

Model	Photo	Magnification	Sensor Size	Mount Type

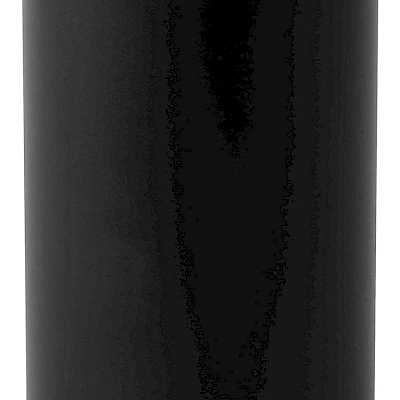

U-TV1.2XT2(NEW)		1.2X	4/3”,1”	T2-Mount

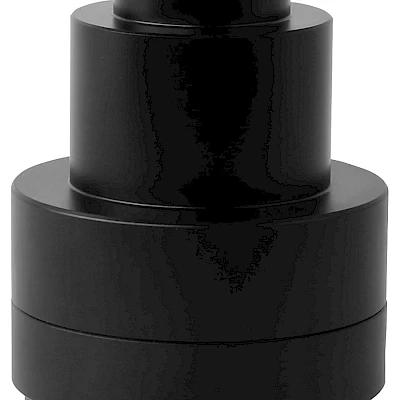

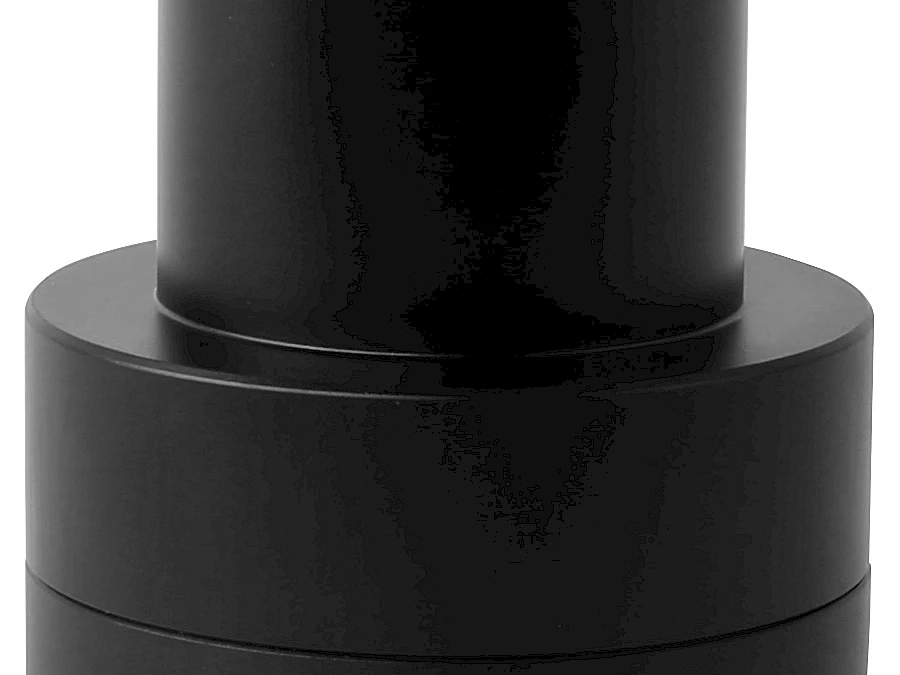

U-TV1X-2/U-CAMD3		1.0X	1”, 2/3”	C-Mount

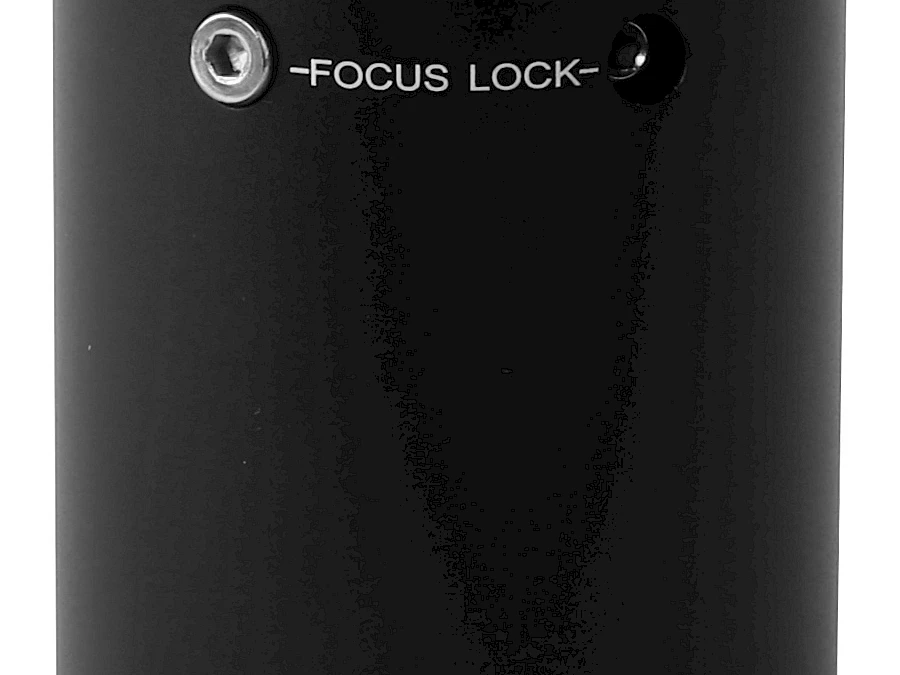

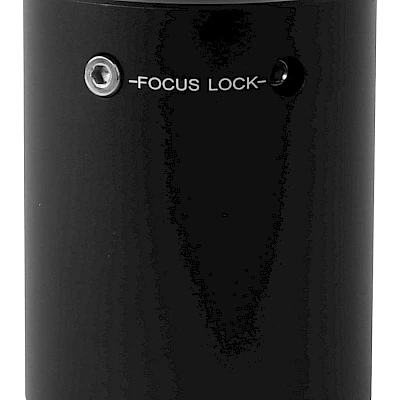

U-TV0.80XC(New)		0.80X	1”,2/3”	C-Mount

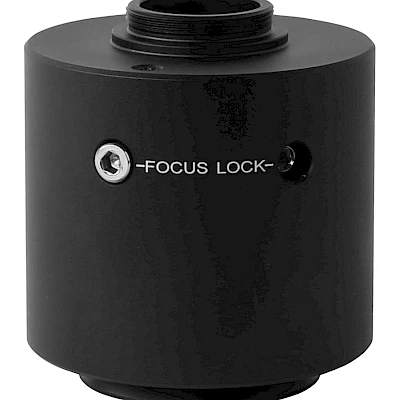

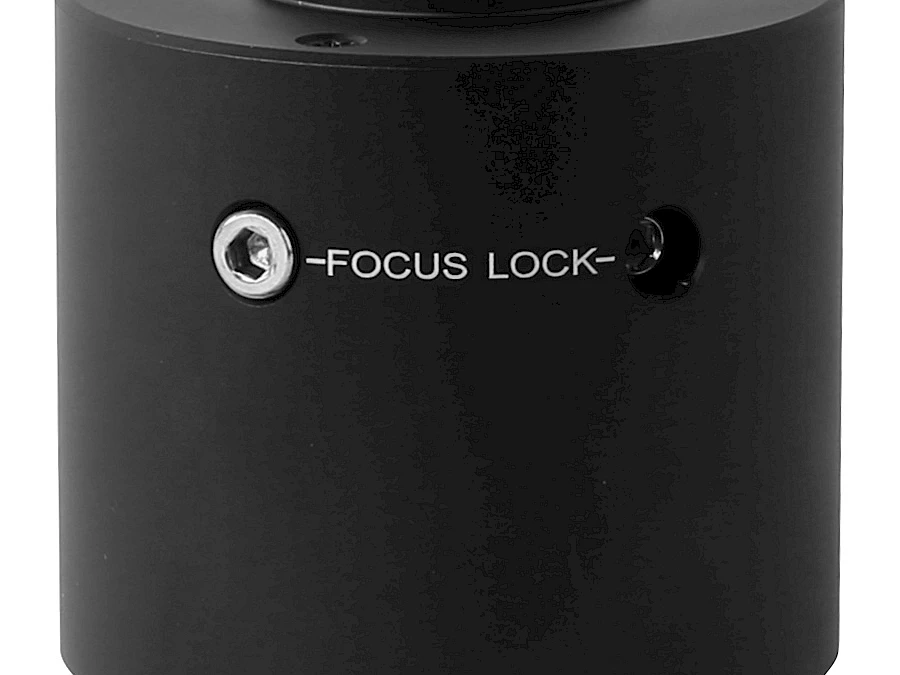

U-TV0.63XC		0.63X	2/3”,1/1.8”,1/2”	C-Mount

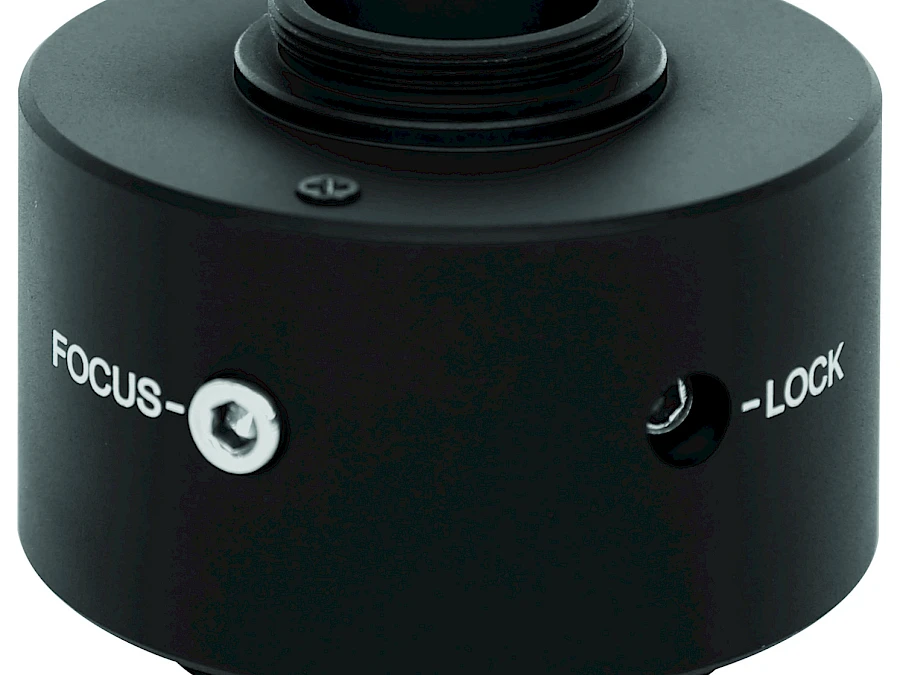

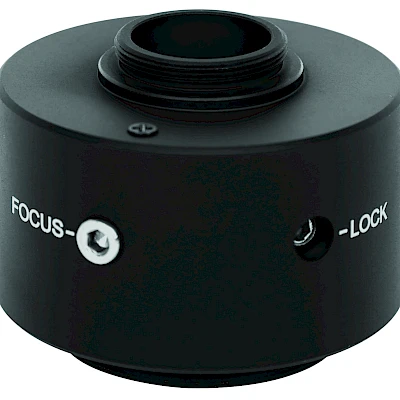

U-TV0.5XC-3		0.50X	1/1.8”,1/2”,1/2.5”	C-Mount

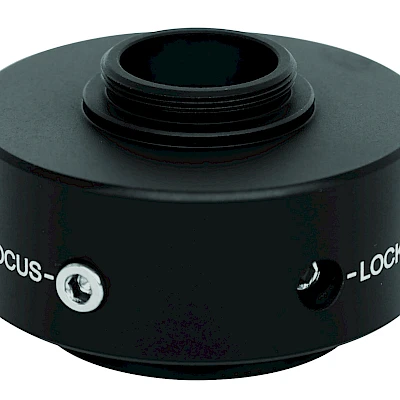

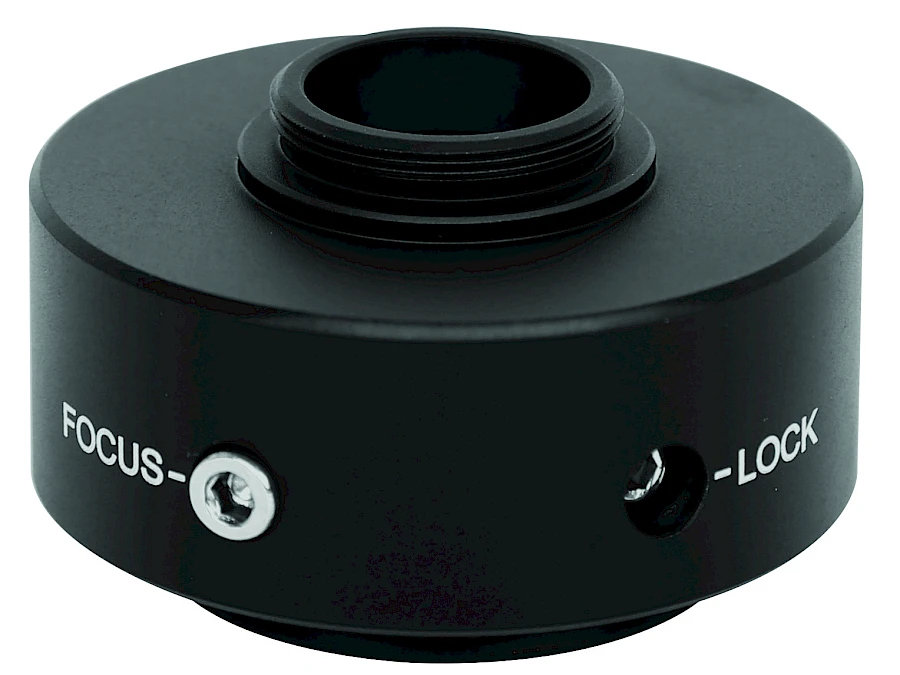

U-TV0.40XC		0.40X	1/2.5”,1/3”,1/4”	C-Mount

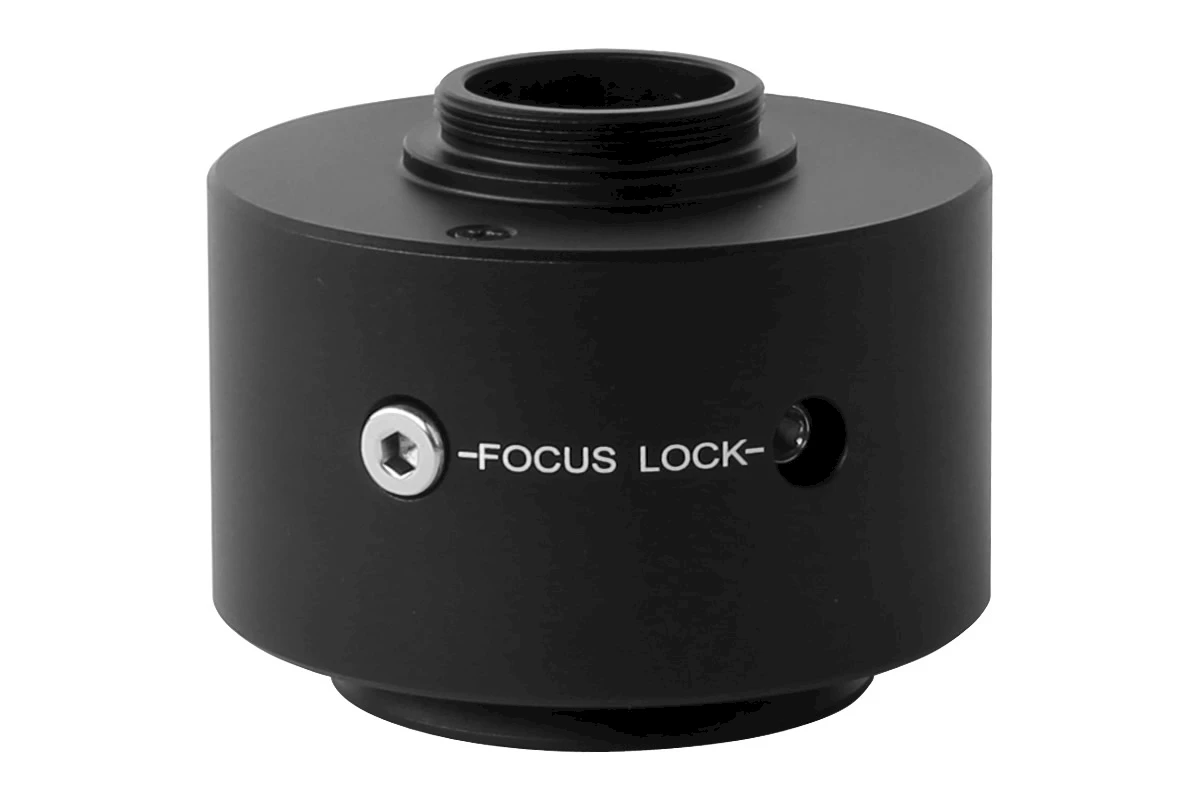

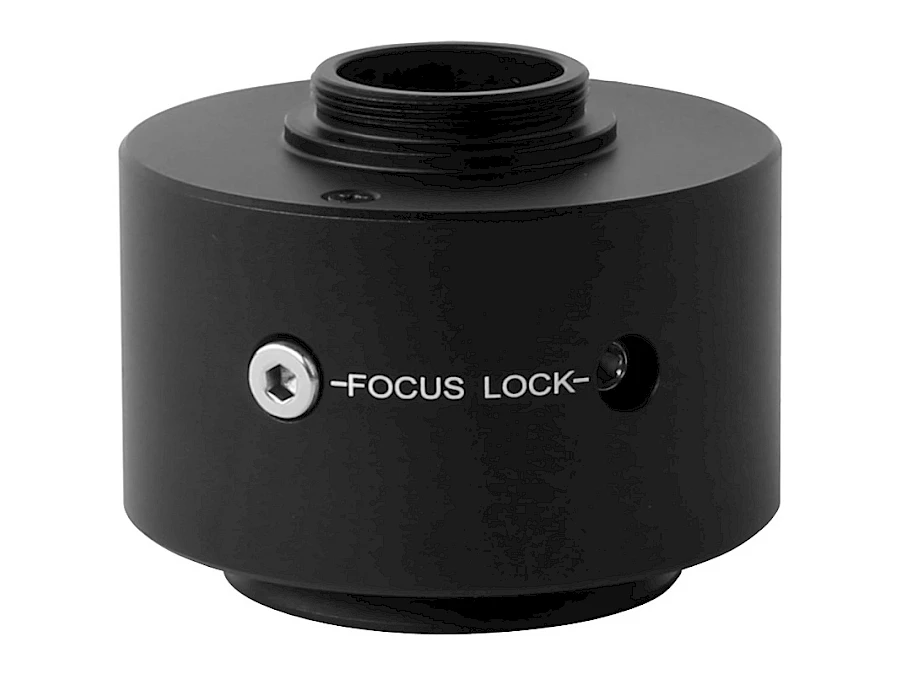

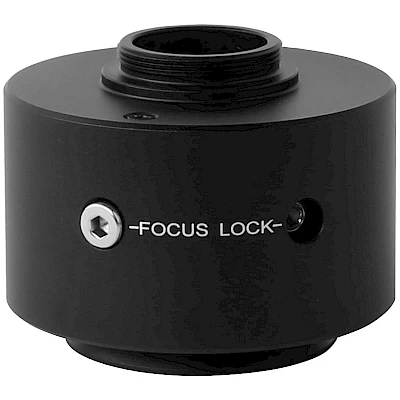

U-TV0.35XC-2		0.35X	1/3”,1/4”，1/5”	C-Mount
Supported Microscope	Specially designed for Olympus CX，BX，MX，STM，SZX，IX，GX(GX41) series microscopes
