- Convert the LEICA trinocular microscope phototube/head/port (have standard 35 mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch)

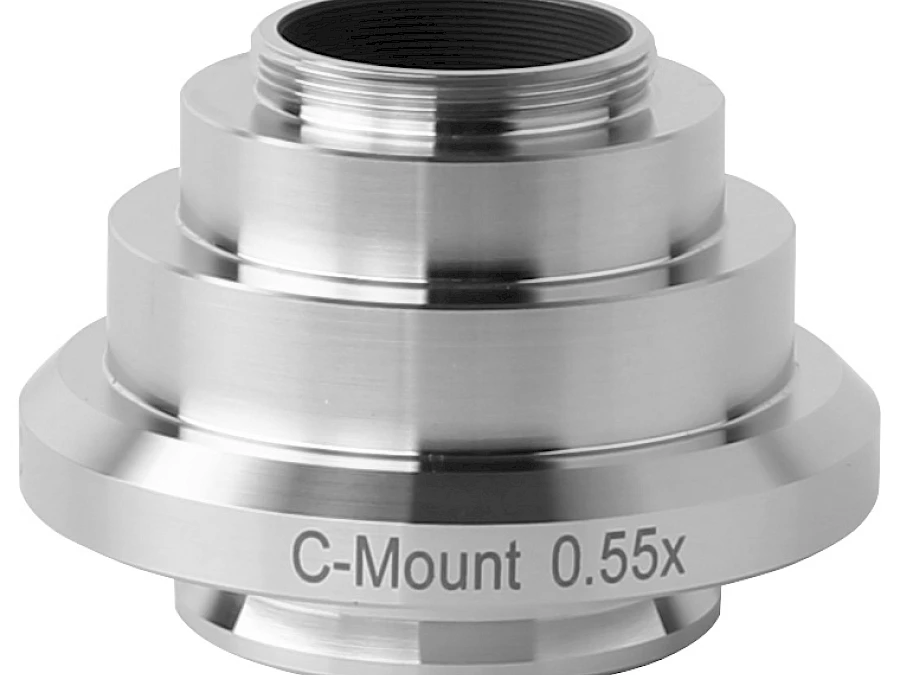

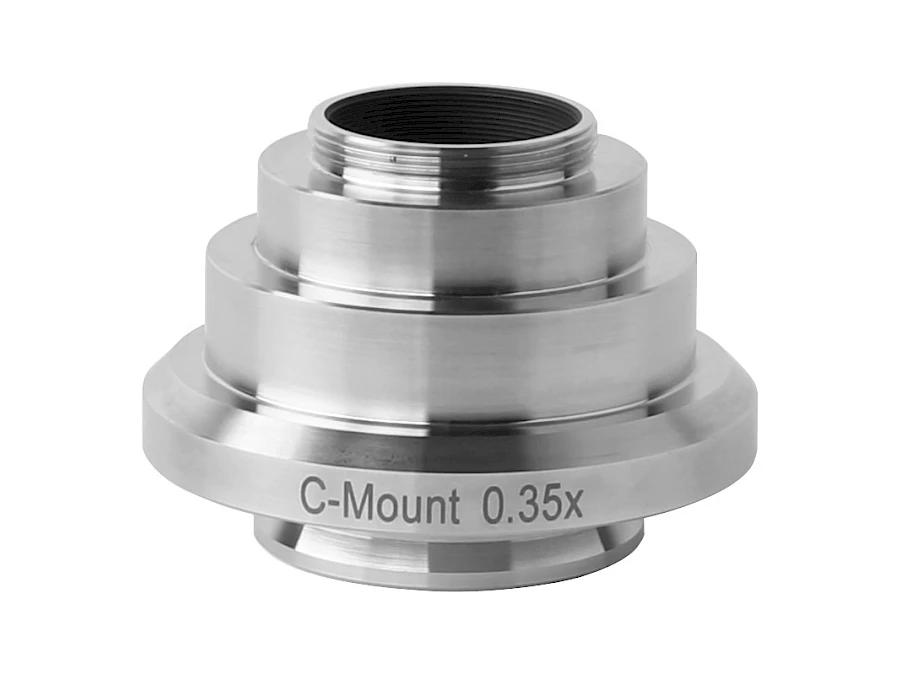

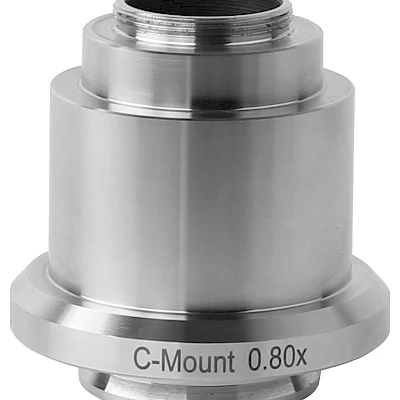

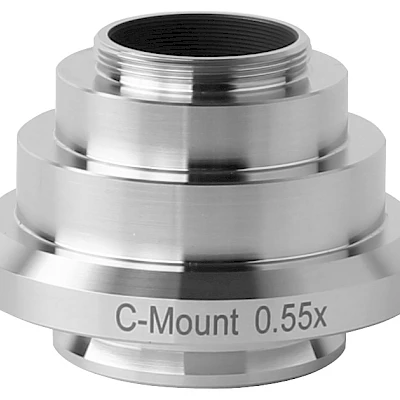

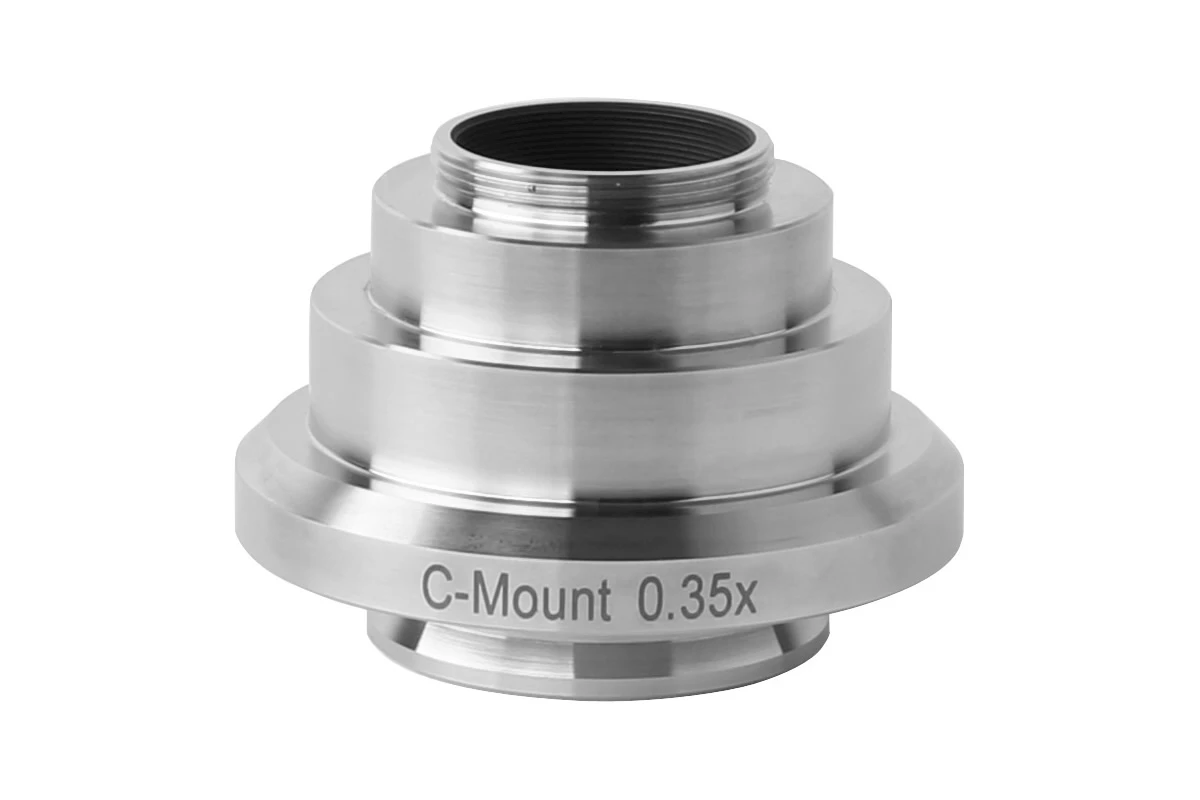

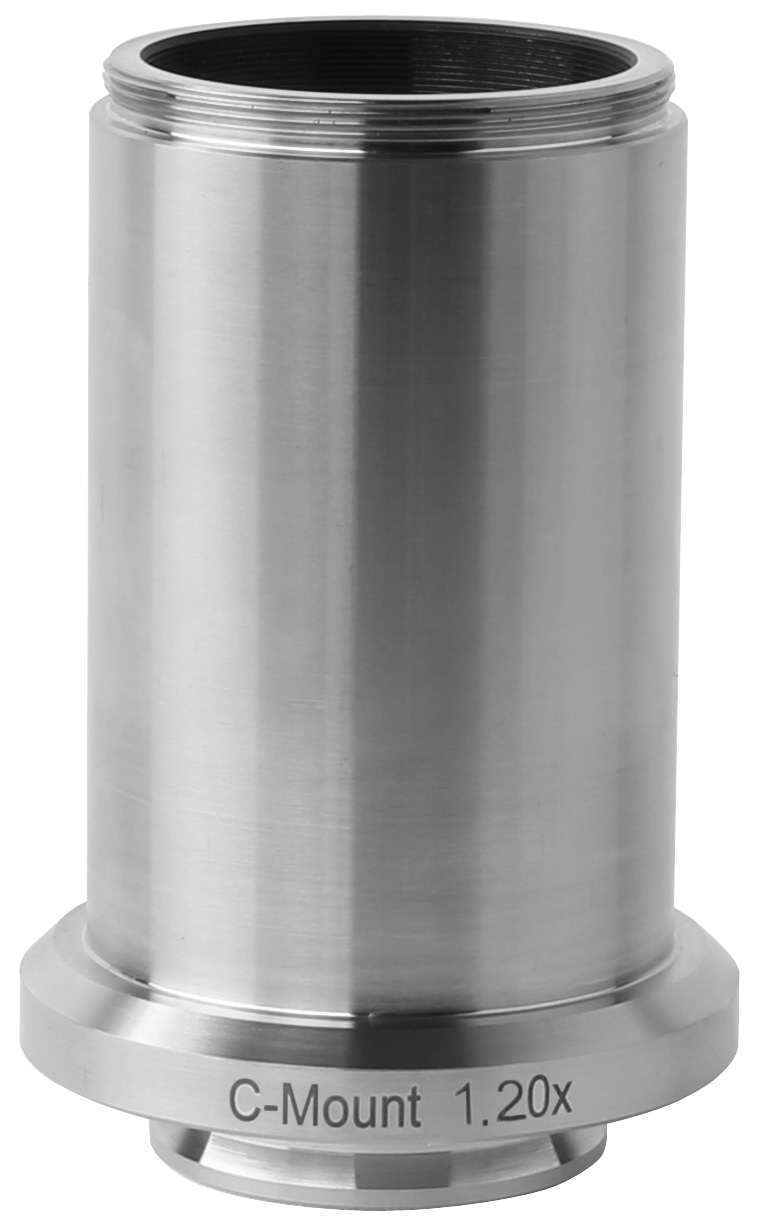

- With different built-in reduction lens (1.2X,1X, 0.8X, 0.7X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 4/3” 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips)
- Can be installed in UIS trinocular tube such as: specially designed for LEICA DM series biology microscopes and industrial microscopes
- Build of material: stainless steel material
- Telecentric optics with low light deficiency
- Parfocal with different microscope objective lenses
- Diffraction limited MTF
- Aperture totally coupled with LEICA UIS microscope objective’s exit pupil

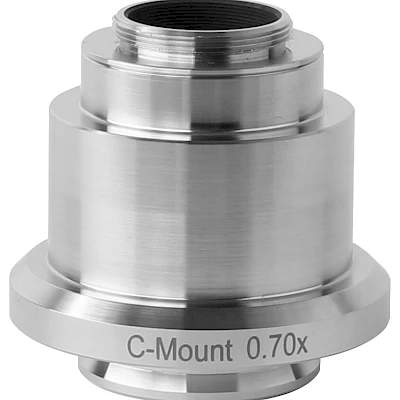

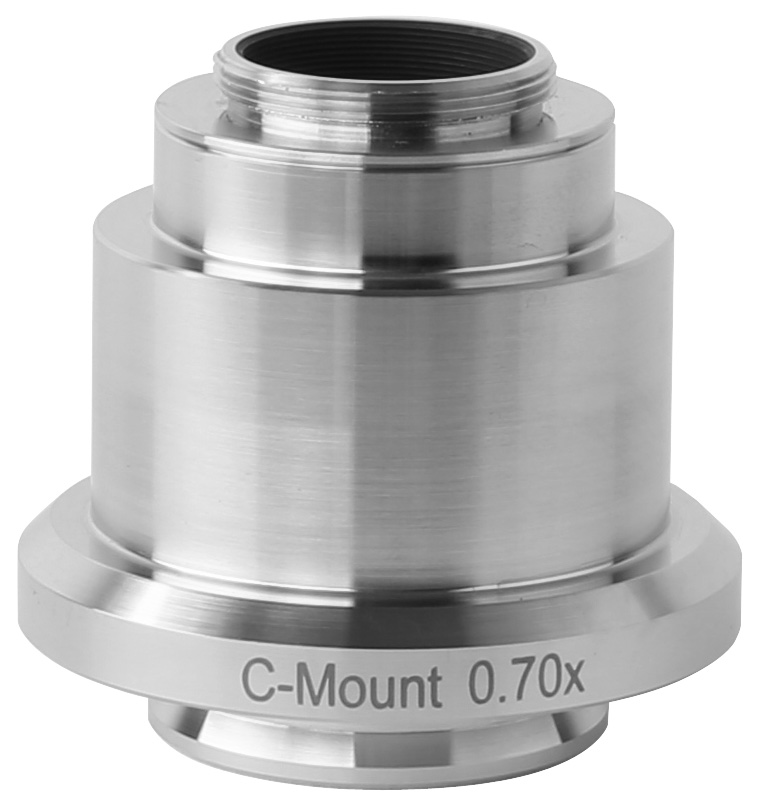

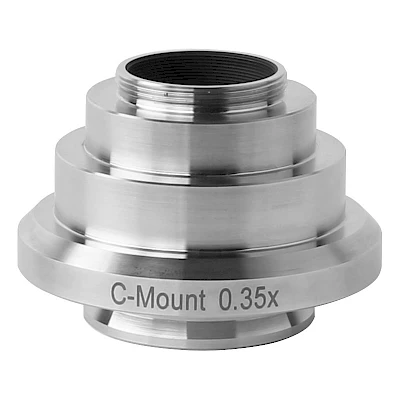

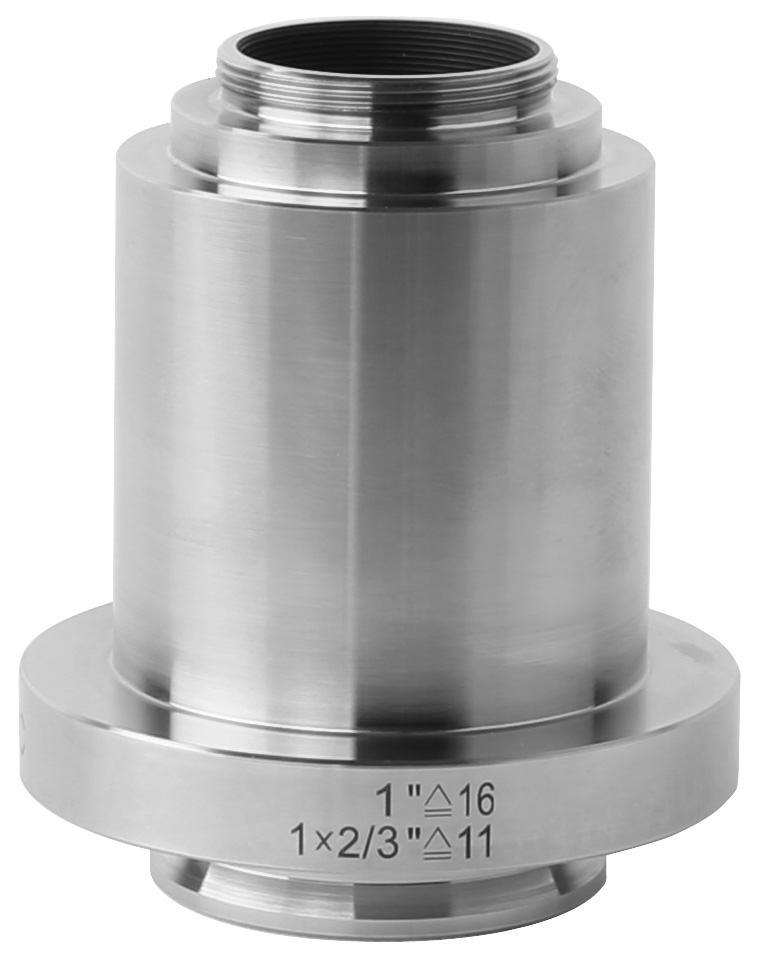

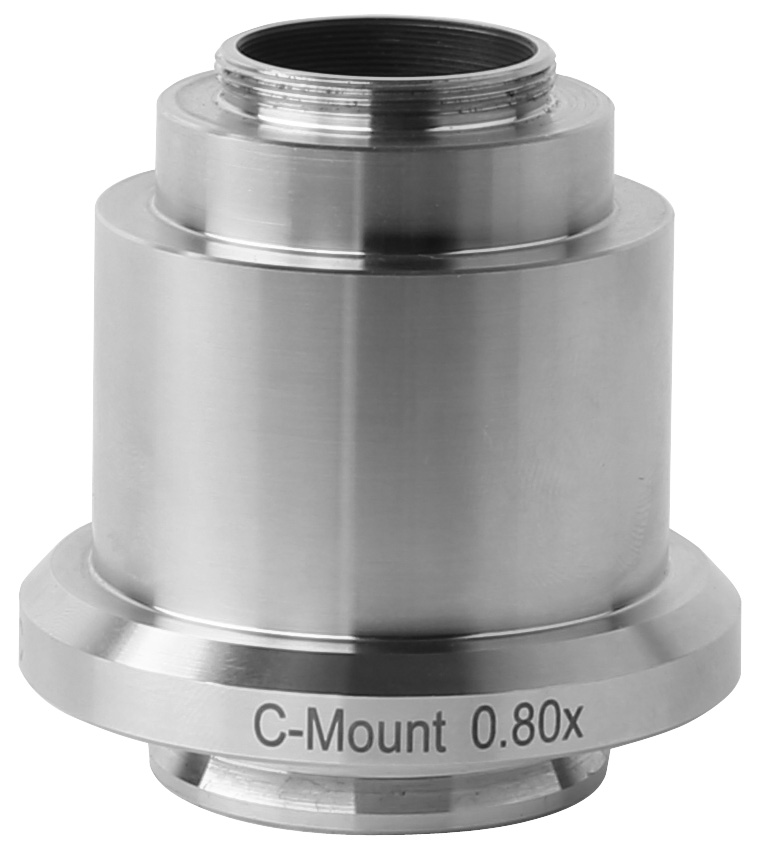

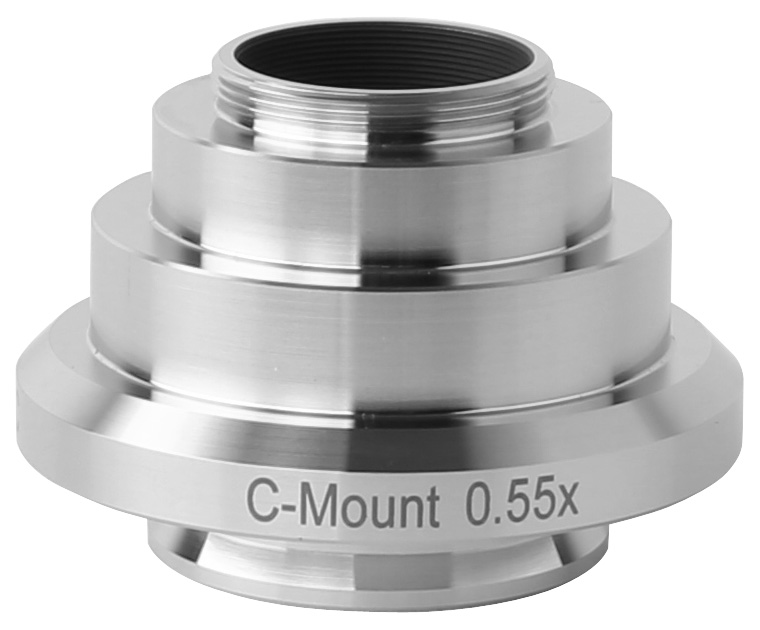

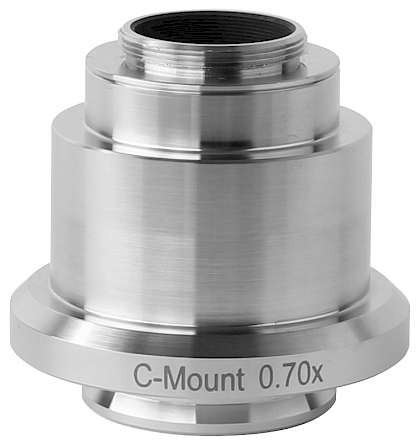

LEICA TV Adapter
LEICA TV Adapter
narrowing, suit for CCD/CMOS sensor chips
Core Features
- built-in different reduction lens (1.2X,1X, 0.8X, 0.7X, 0.55X, 0.35X)
- build of stainless steel material
- low light deficiency
- parfocal with objective lenses
- diffraction limited MTF
- convert the trinocular microscope phototube/head/port to traditional C-Mount type
