Full APO Long Working Distance Infinity Plan Apochromatic Microscope Objective Lens 2X 5X 10X 20X 50X 100X

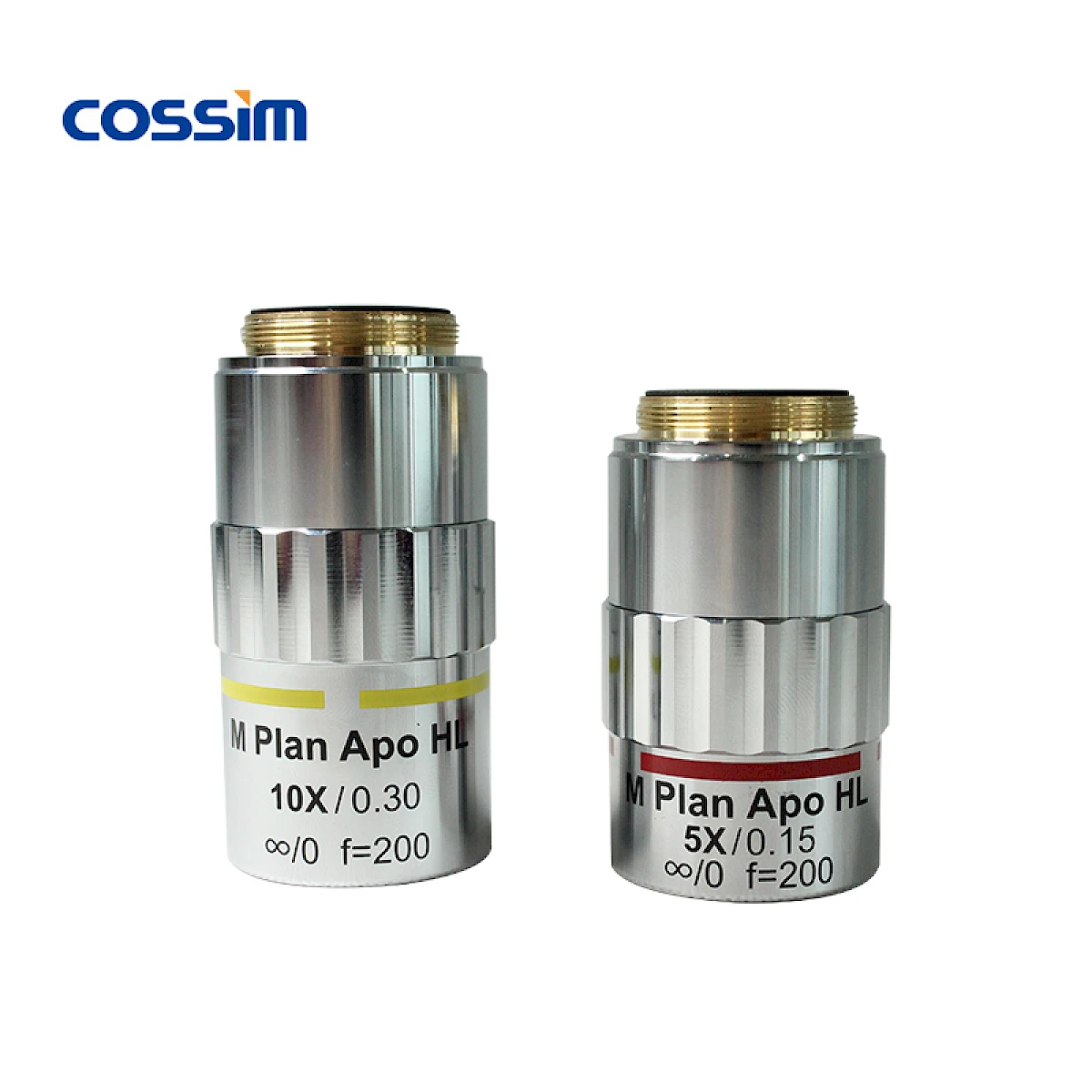

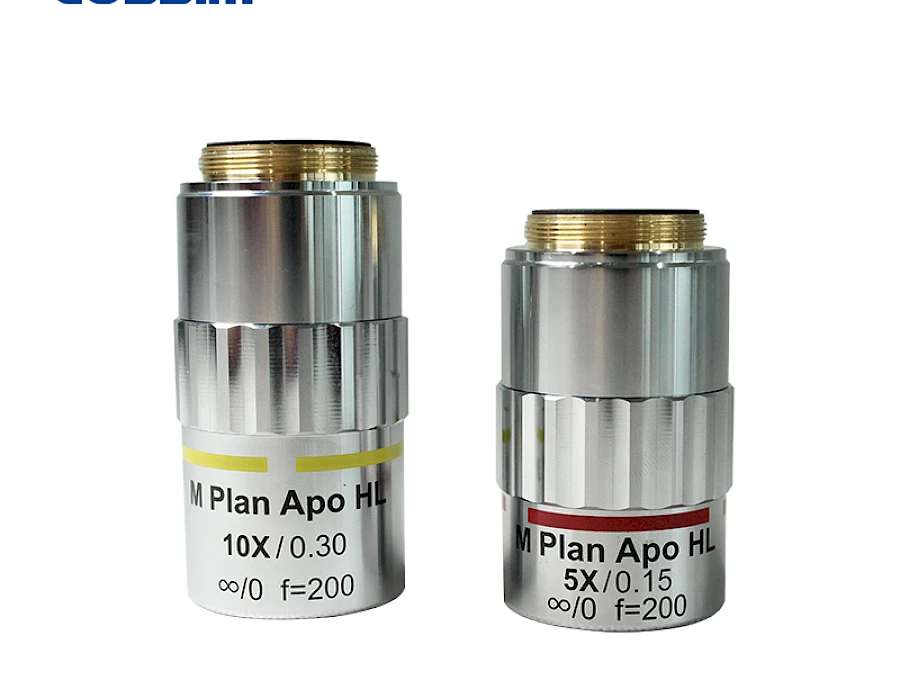

Full APO Infinity Metallurgical Objectives

Copper Material; 5X, 10X, 20X, 50X, 100X; Normal, Infrared, BF /DF; Metallurgical Infinity Full APO Objectives

Core Features

Configurations

APO LWD Infinity

Plan Achromatic

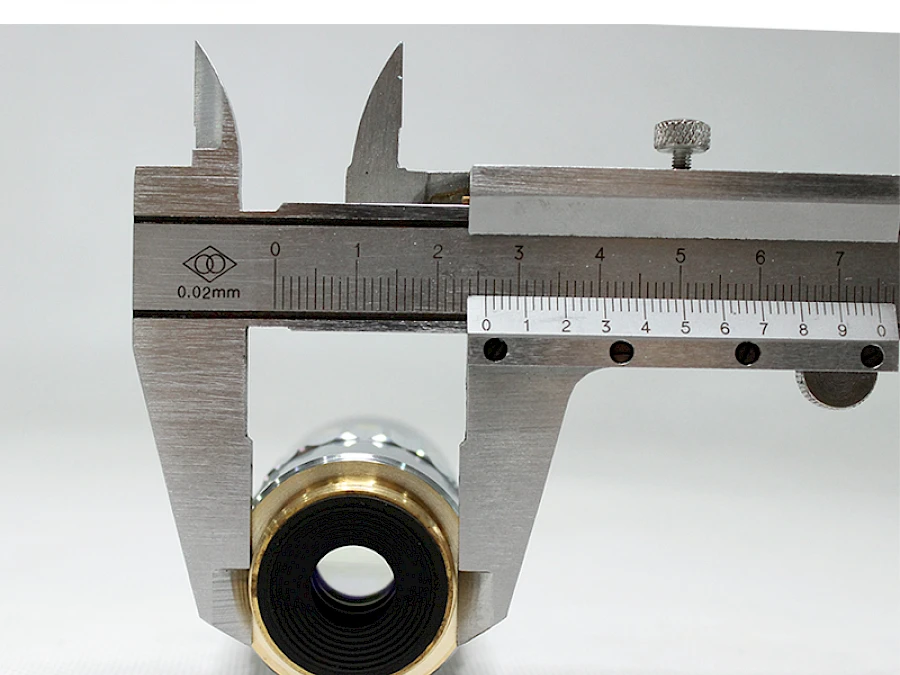

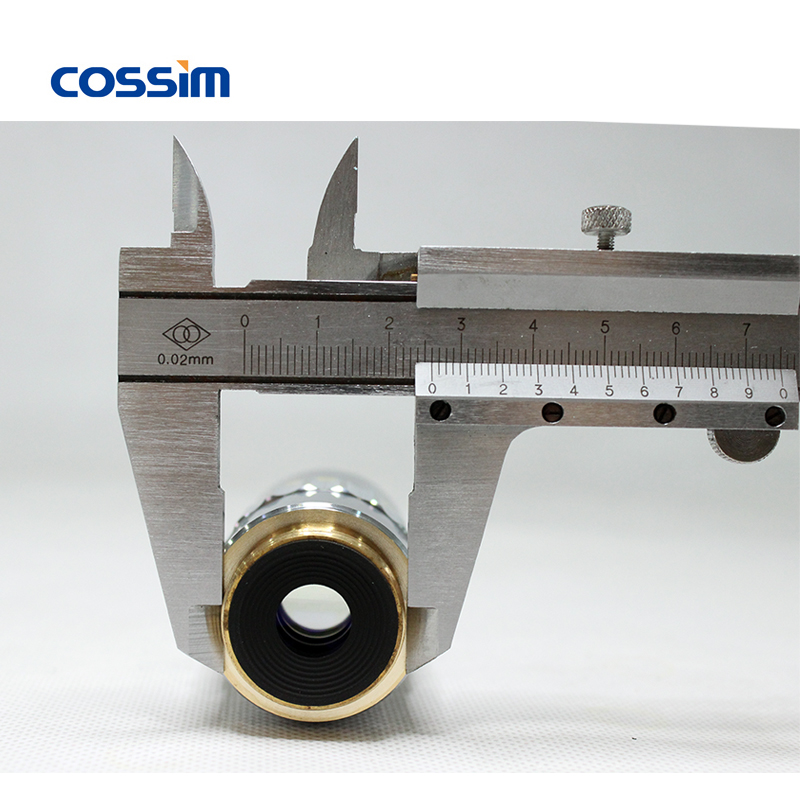

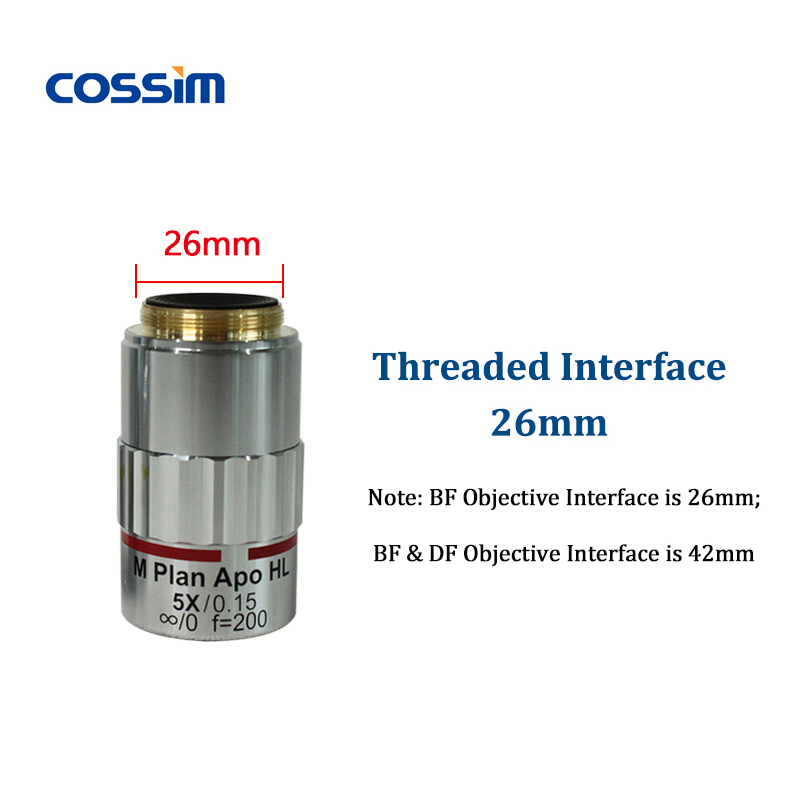

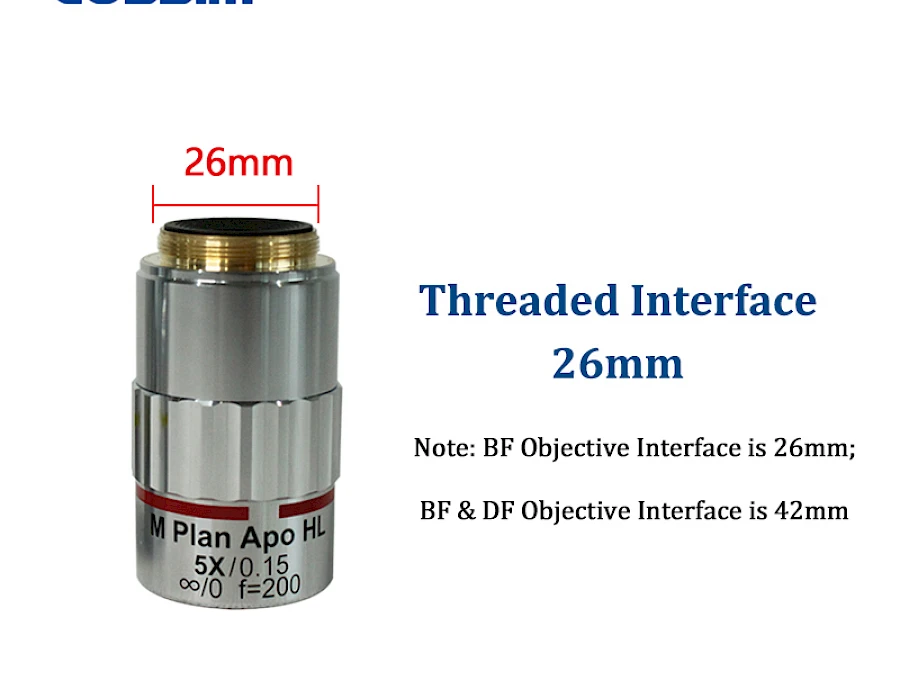

Threaded Interface

26mm

Specification for APO Infinity Metallurgical Objectives:
Item	Metallurgical BF Objective
Mag.	N.A.	W.D.	F.L.	R(μm)	D.F.	Connecting Thread
2X	0.055	34mm	34mm	6.5	110μm	M26x1/36
5X	0.15	44.9mm	44.9mm	2.5	18μm	M26x1/36
10X	0.3	33.9mm	33.9mm	1.0	3.5μm	M26x1/36
20X	0.3	30.9mm	30.9mm	1.0	3.5mm	M26x1/36
20X	0.45	20.1mm	20.1mm	0.7	1.6μm	M26x1/36
50X	0.45	20.1mm	20.1mm	0.7	1.6μm	M26x1/36
50X	0.65	9.4mm	9.4mm	0.4	0.55μm	M26x1/36
100X	0.8	6mm	6mm	0.4	0.6μm	M26x1/36
Item	Metallurgical BF Objective (Infrared)
Mag.	N.A.	W.D.	F.L.	R	D.F.	Connecting Thread
5X	0.15	44.9mm	44.9mm	2.5	18μm	M26x1/36
10X	0.3	33.9mm	33.9mm	1.0	3.5μm	M26x1/36
20X	0.3	30.9mm	30.9mm	1.0	3.5mm	M26x1/36
20X	0.45	20.1mm	20.1mm	0.7	1.7μm	M26x1/36
50X	0.45	20.1mm	20.1mm	0.7	1.6μm	M26x1/36
50X	0.65	9.4mm	9.4mm	0.4	0.55μm	M26x1/36
100X	0.8	6mm	6mm	0.4	0.6μm	M26x1/36
Item	Metallurgical BF/DF Objective
Mag.	N.A.	W.D.	F.L.	R	D.F.	Connecting Thread
2X BD	0.055	33mm	33mm	6.5	110μm	M42x1/36
5X BD	0.15	44mm	44mm	2.5	18μm	M42x1/36
10X BD	0.3	34mm	34mm	1.0	3.5μm	M42x1/36
20X BD	0.3	30mm	30mm	1.0	3.5mm	M42x1/36
20X BD	0.45	19mm	19mm	0.7	1.6μm	M42x1/36
50X BD	0.45	19.5mm	19.5mm	0.7	1.6μm	M42x1/36
50X BD	0.65	8.5mm	8.5mm	0.4	0.55μm	M42x1/36
100XBD	0.8	4.5mm	4.5mm	0.4	0.6μm	M42x1/36
