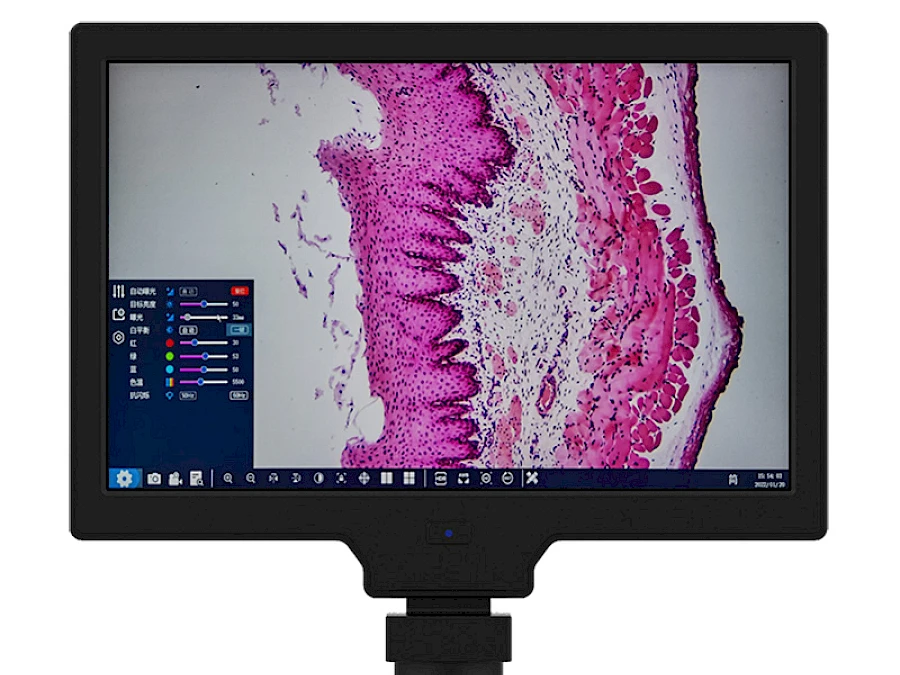

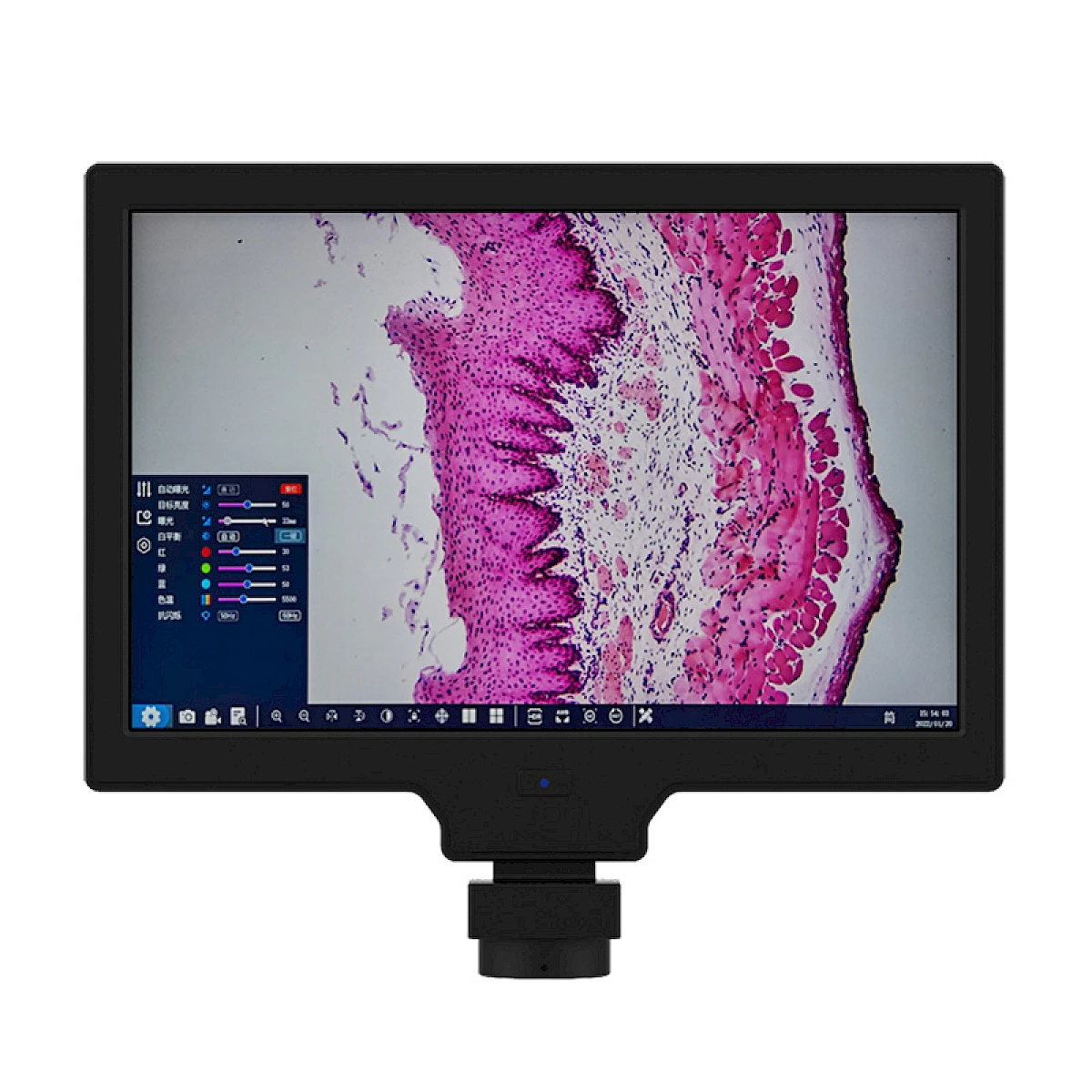

YW101

10inch 2MP HDMI & USB/UVC Output Microscope Monitor Integrated Screen with Measurement Software

1920*1080@ 60FPS, 1/2.8” IMX307 Sensor, HDMI USB/UVC, Record, Save & Measurement Functions, DC-12V

Core Features

Configurations

Software

Youngwin OS

Weight

0.7KG

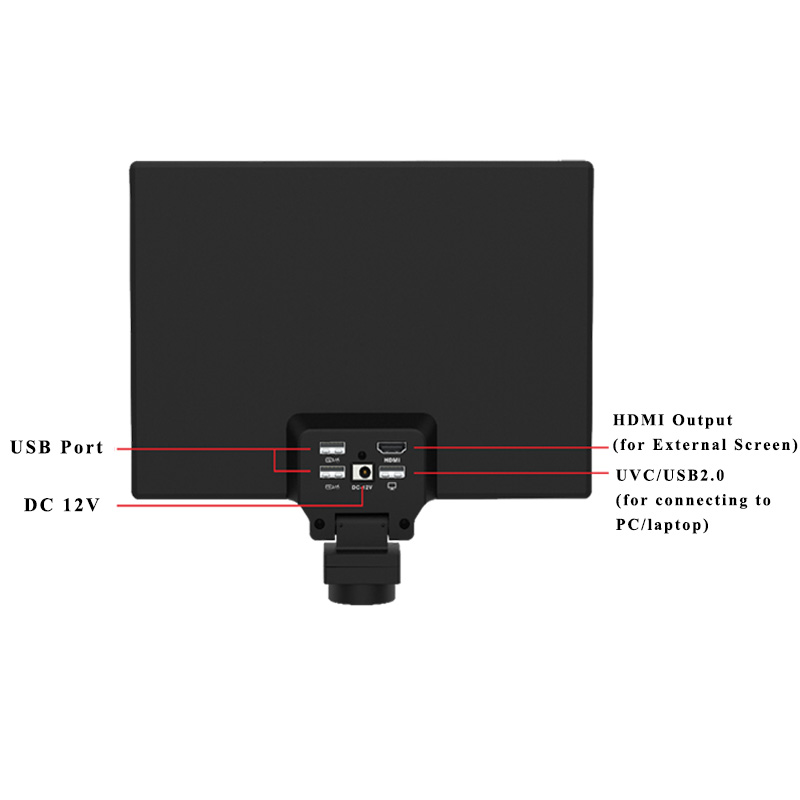

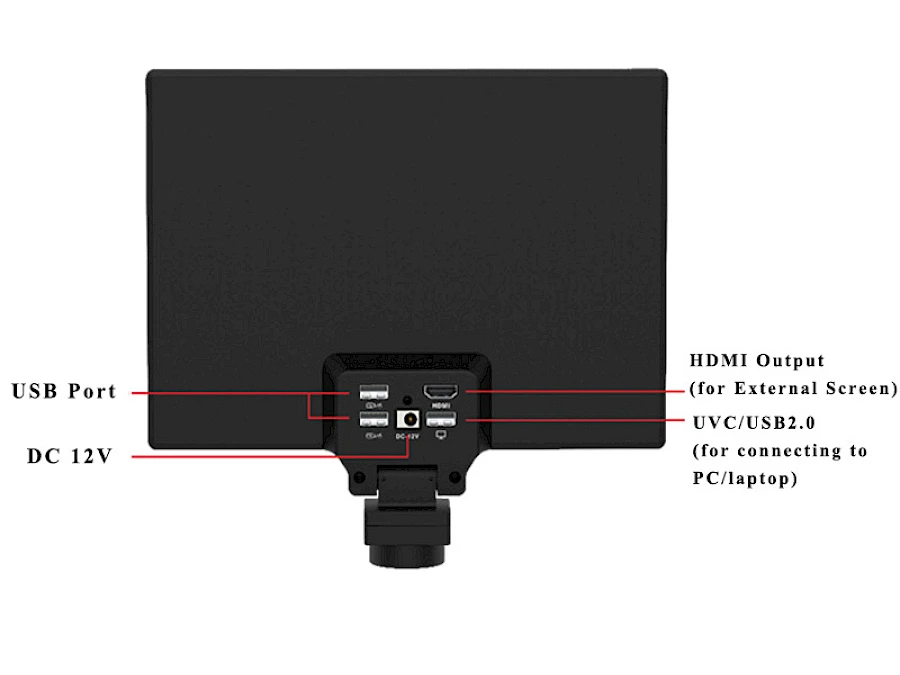

Structure of YW101 Monitor

Parameters of the YW101：
SENSOR	IMX307
Sensor size	1/2.8”
Pixel size	2.9*2.9μm
Resolution	1920*1080
Frame rate	1920*1080@ 60FPS
Storage	USB stick or UVC to computer
Video	1920*1080@30FPS
Exposure time	0-999MS
Exposure	Auto and manual, providing target brightness settings
White balance	Auto，manual and ROI modes
Parameter	Contrast, Saturation, Brightness, Sharpness, Noise Reduction etc.
Software	Youngwin OS
PC software	S-EYE2.0
Working temperature	0-60℃
Storage temperature	-20-85℃
Size	241.6165.208.8mm
Weight	0.7kg
Power	DC 12V
