YW090C

9inch HD Microscope Screen C-mount Integrated Microscope Camera Monitor Save Record Functions

Core Features

9” LCD Display Screen
Wireless mouse control USB2.0
Supply photography, video, save function
Image color restore close to primary color

Configurations

Size 9"

1024*600

Digital Zoom

10X

Sensor

1/3”

USB2.0

SD Card

Request Quotation Email Phone Back to Products

YW090C integrated functions, such as Exposure, Contrast, Sharpness etc. It is easy to record and save the photos and videos in the U-disk, which is really convenient.

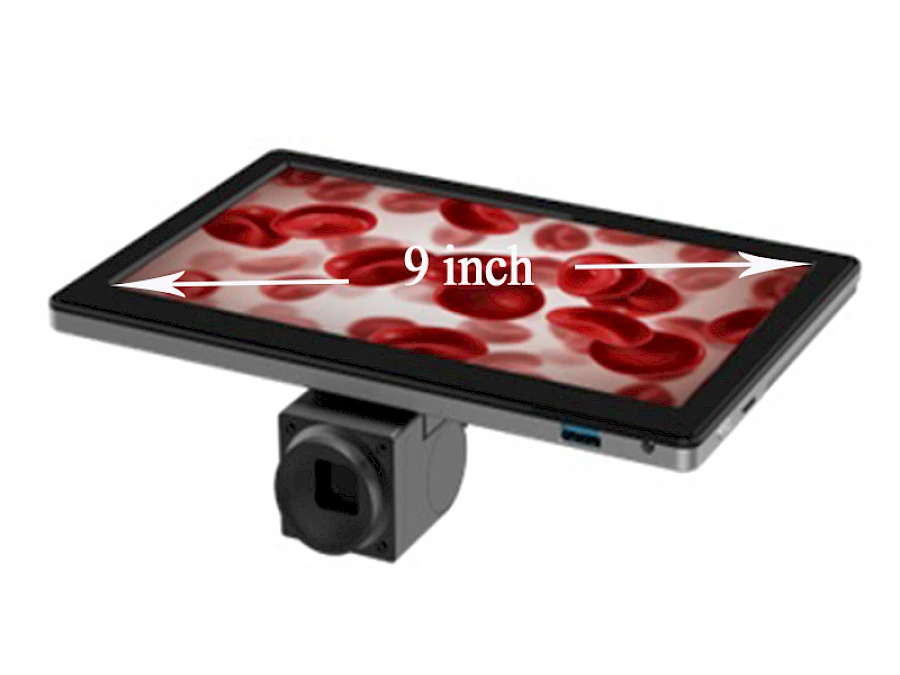

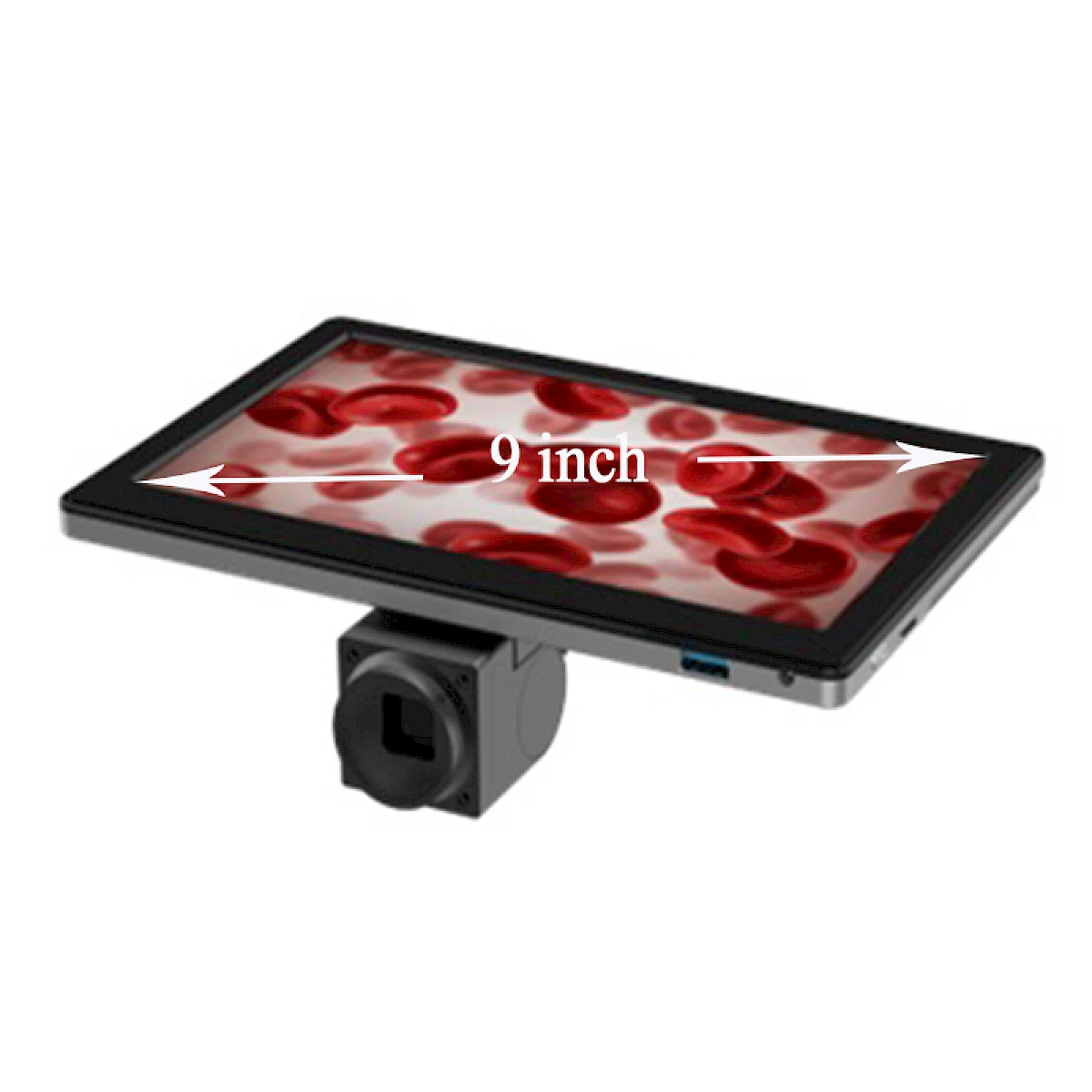

YW090C Microscope Monitor

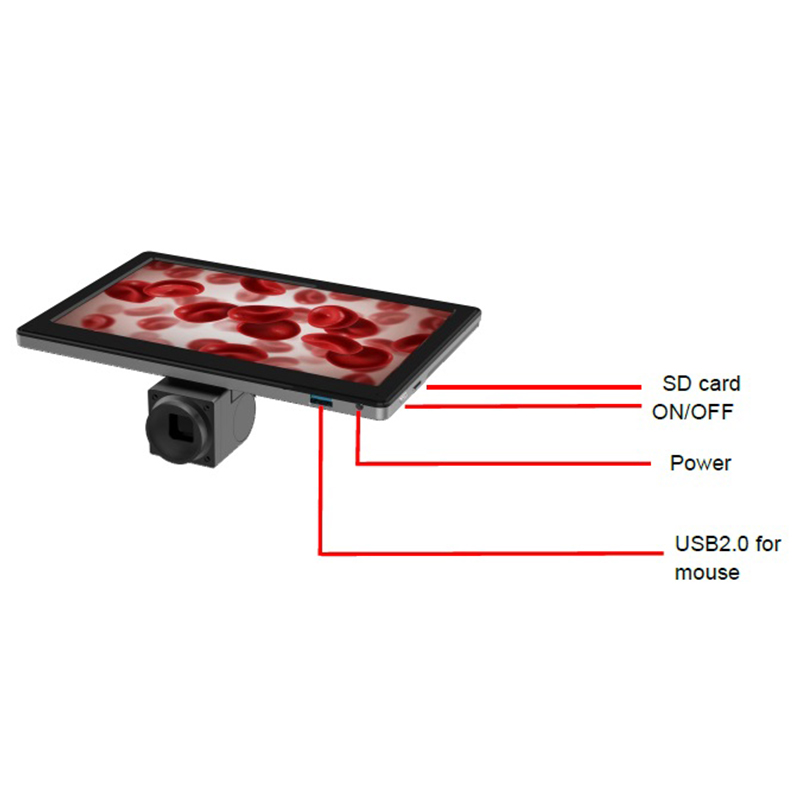

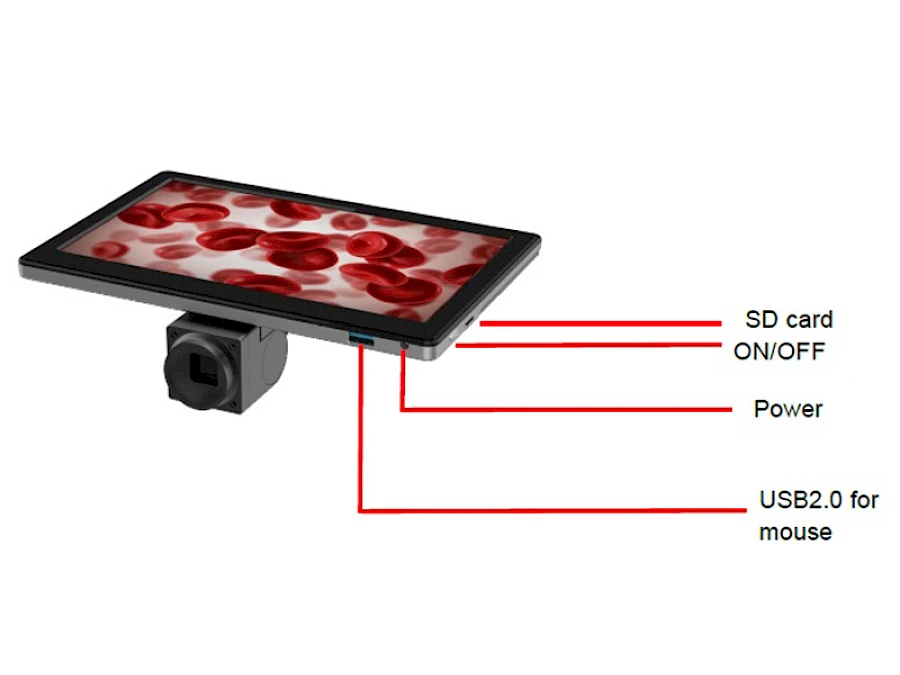

Structure of YW090C Screen

Specification for YW090C:
Specification	Model	YW090C
	Category	All in one monitor camera
	Sensor	1/3”
	Effective pixel	Full HD
	Resolution	9” resolution 1024*600 high definition monitor
	Output	USB2.0, SD card
	Pixel size	2.75*2.75 μm
	Power	DC-12V/1A
Function	Basic function	Brightness, Contrast, Saturation, White balance, Monochrome, HDR wide dynamic
	UI interface	Mouse control
	Image adjustment	Sharpness, Denoise etc.
	Storage	Snap, Video, Preview
	Camera function	10X digital zoom, Flip/Mirror, Freeze, Dynamic contrast
	Crosshair	Color/Size adjustable
	Grid	8 sets of grid and can be saved

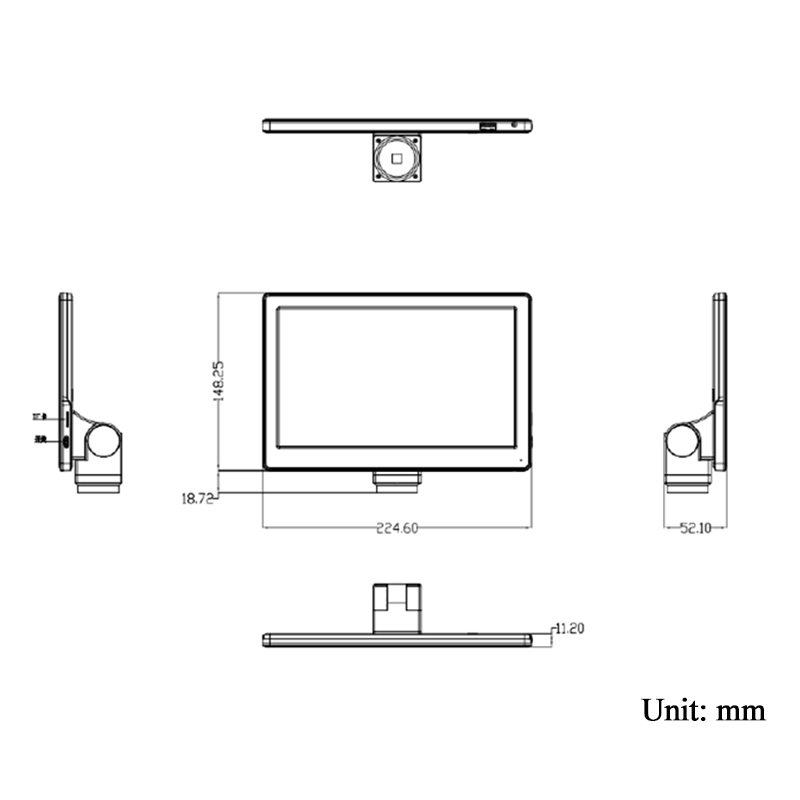

Package	Size	224.6148.2552.1mm
	N.W	0.6kg
	Standard accessory	Mouse, DC-12V power
