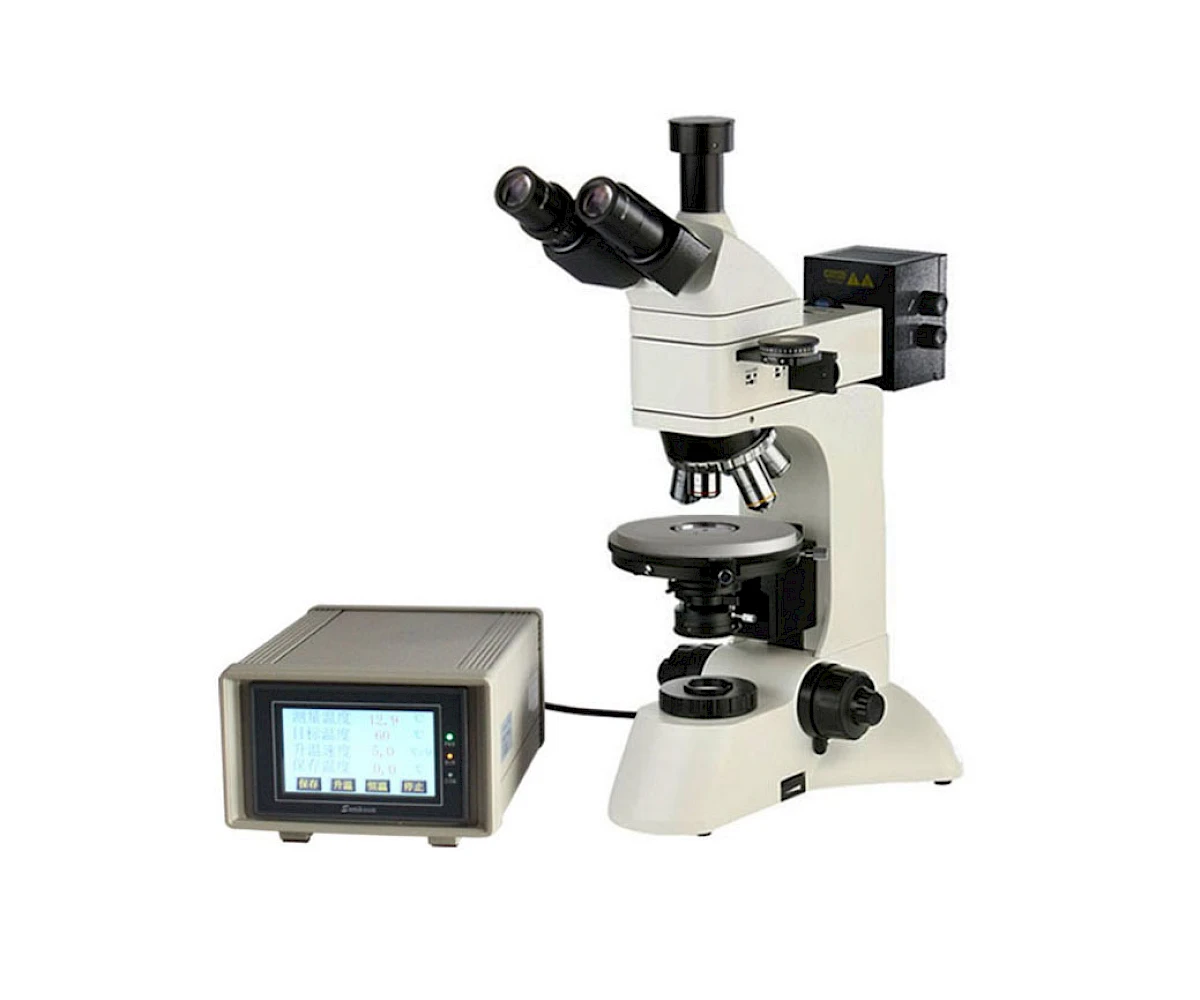

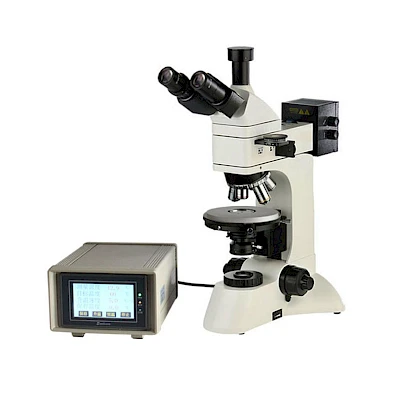

PL180-8A is a combination of PRT-8A Heating Platform & POL1810 Polarizing Microscope.
POL1810 Transmitted & Reflected Polarizing Microscope is utilized polarizing light to observe and research the matter which have double refraction features, the user can make single polarizing observation, orthogonal observation, conoscope observation.It is applied in geology, chemicals, physic and leechdom fields, widely used to observe the crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal. It is the ideal instrument for scientific research and universities teaching demonstration.The intermediate attachment includes the impellent style of analyer (360° retatable with scale and fine nonius) which can be taken off from the light path and the impellent style of bertrand lens (centeradjustable).It can be added λ compensator, λ/4 compensator or quarts wedge compensator. Strain-free plan achromatic objective (no cover glass) and center adjustable.By adding the appurtenance such as CCD adapter, digital camera adapter and single-reverse digital camera adapter etc. It can achieve high clear observation mode of camera and vidicon.
PRT-8A has unique solid seamless heat structure, which conducting heat fast and giving uniform temperature. It has long service life, small size, large power, low energy consumption, rapid heating, source without oxidation. Special thermodynamic isolation design, isolating the high and low temperature parts effectively. It is safe to hold the outer body without water cooling when the stage’s temperature up to 400°C. Direct current low voltage is safe and without radiation.
This instrument is specially developed for materials science, biochemistry, metallurgy, organic chemistry, polymer and nano-material science. It is used in conjunction with optical or electron microscope to observe and record the state and changes in the process of dissolution, sublimation and crystallization. And the use of humanized design, high degree of automation, simple operation, advanced technology, excellent performance, reliable structure, will be accurate, efficient, safe, reliable assist your research, work and study.
PL180-8A
