Eyepiece to C-mount Eyepiece Adapter

Microscope X / Microscope Accessories / Eyepiece Adapter

Eyepiece Adapter

upgrade accessory, 23.3mm/ 31.75mm, adjustable/ fixed,

Core Features

various types of magnifications
Fit to different Size Sensor

Configurations

various types of magnifications

Fit to different Size Sensor

Request Quotation Email Phone Back to Products

23.2mm Eyepiece to C-mount Adjustable Microscope Eyepiece Adapter	23.2mm Eyepiece to C-mount Fixed Microscope Eyepiece Adapter

31.75mm Eyepiece to C-mount Adjustable Telescope Eyepiece Adapter	31.75mm Eyepiece to C-mount Fixed Telescope Eyepiece Adapter

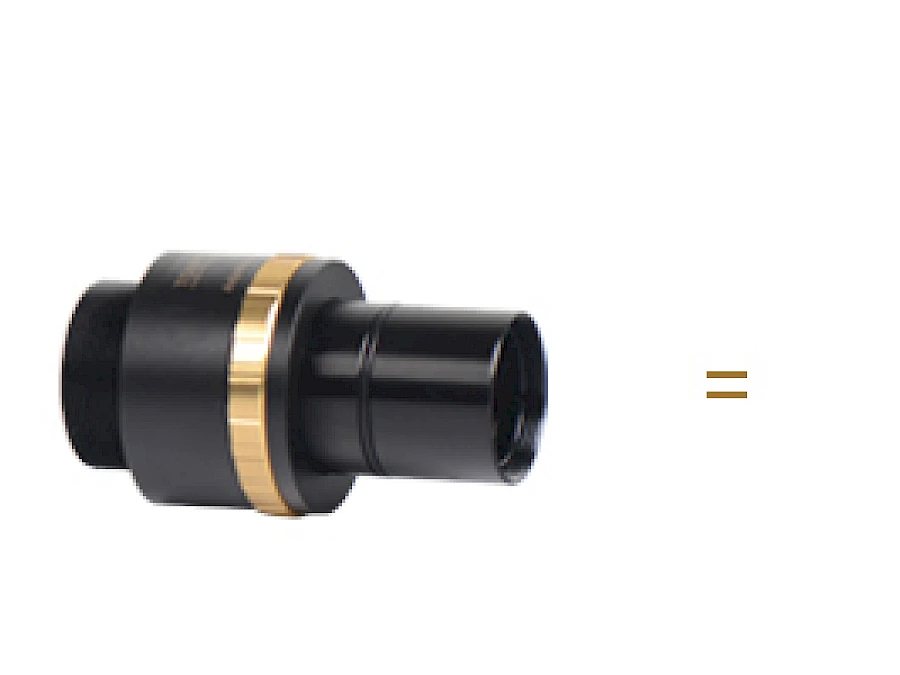

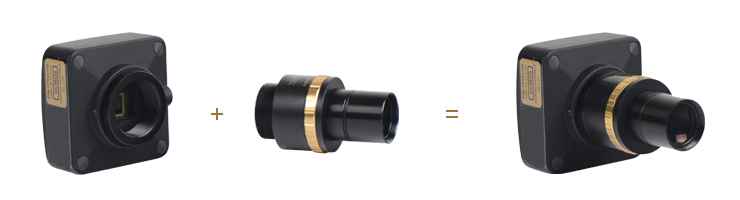

23.2mm Eyepiece to C-mount Adjustable Microscope Eyepiece Adapter

Article Code	Model	Description

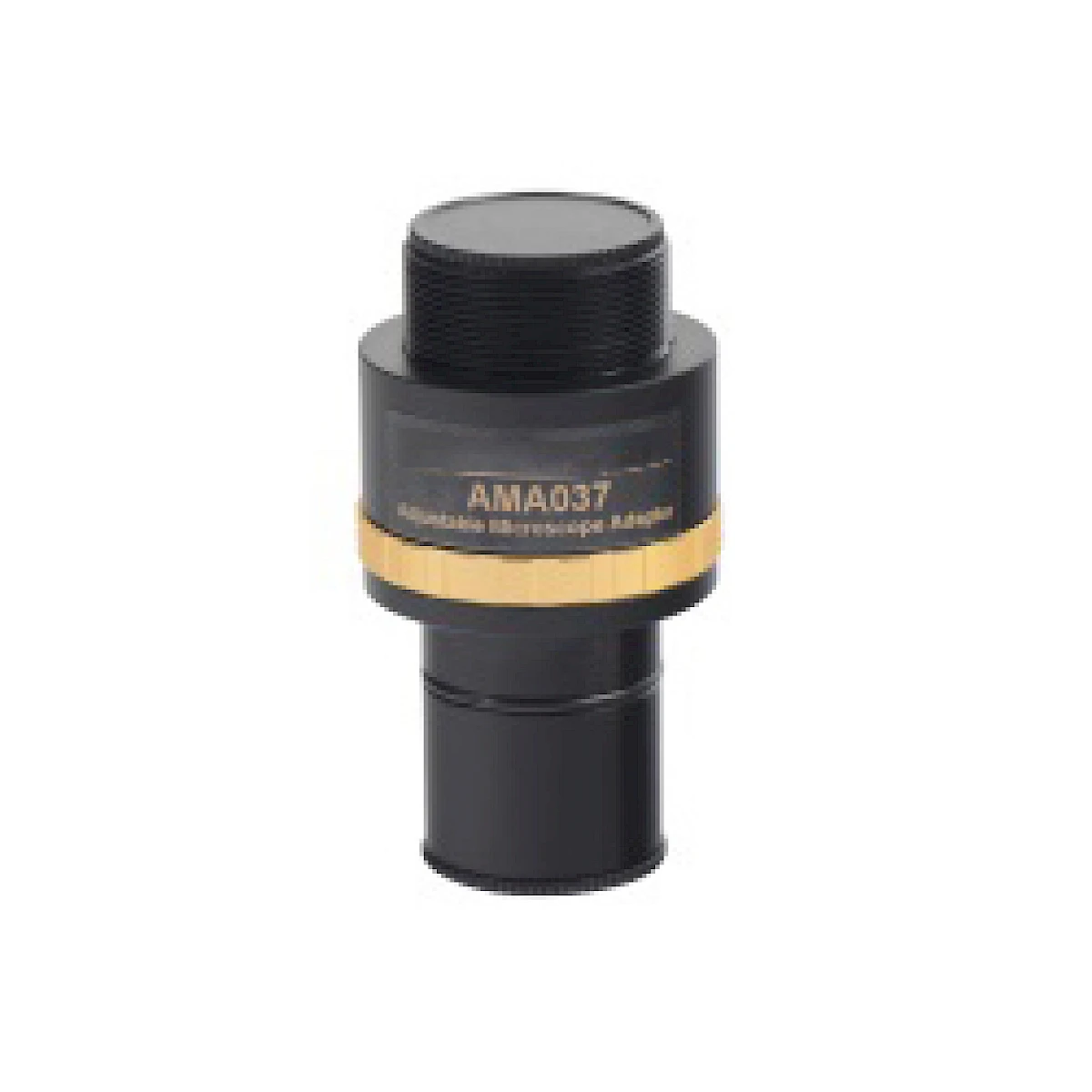

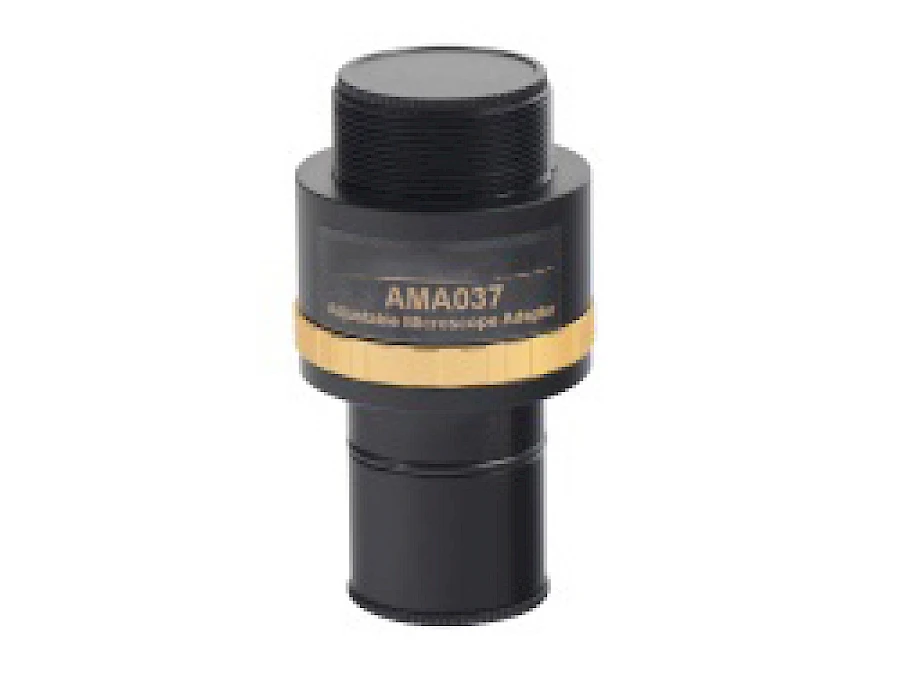

108001	AMA037	Available Size for 18 mm Field 18X0.37mm Fit to 1/4”~1/3” Size Sensor 0.37X Magnification Manually Focusable Parfocal with the Eyepiece Dia.23.2mm Eyepiece Tube to C-Mount

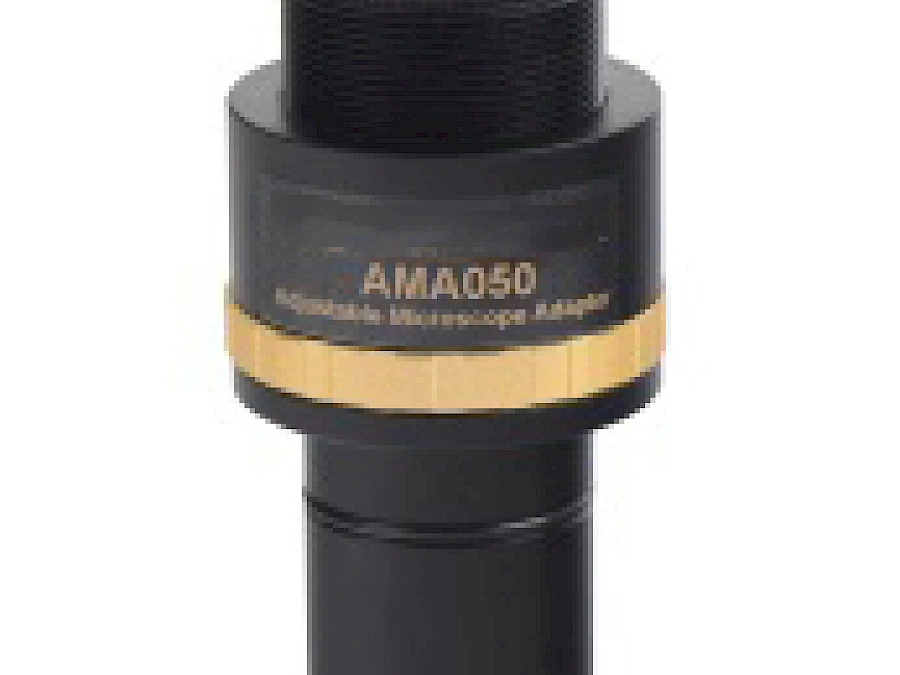

108002	AMA050	Available Size for 18 mm Field 18X0.50mm Fit to 1/2”~2/3” Size Sensor 0.50X Magnification Manually Focusable Parfocal with the Eyepiece Dia.23.2mm Eyepiece Tube to C-Mount

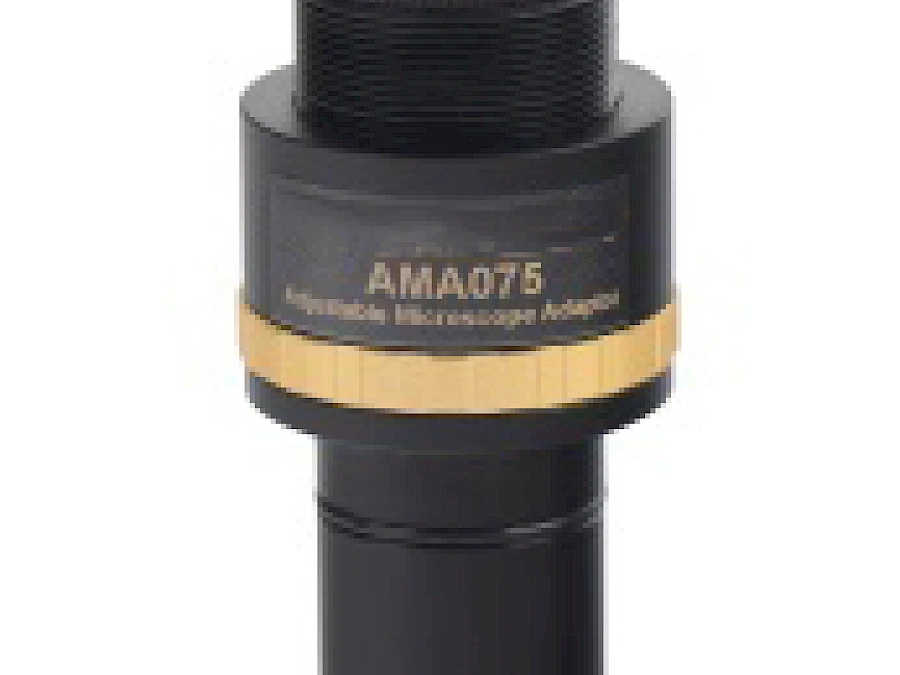

108003	AMA075	Available Size for 18 mm Field 18X0.75mm Fit to 1/1.8”~1” Size Sensor 0.75X Magnification Manually Focusable Parfocal with the Eyepiece Dia.23.2mm Eyepiece Tube to C-Mount
108004	AMA100

*To cover the field, the sensor size should be smaller than the available size. Jingtong’s experts will help you to select the correct Adapter for your ordered microscope camera. What you need to do is to select the right camera model.

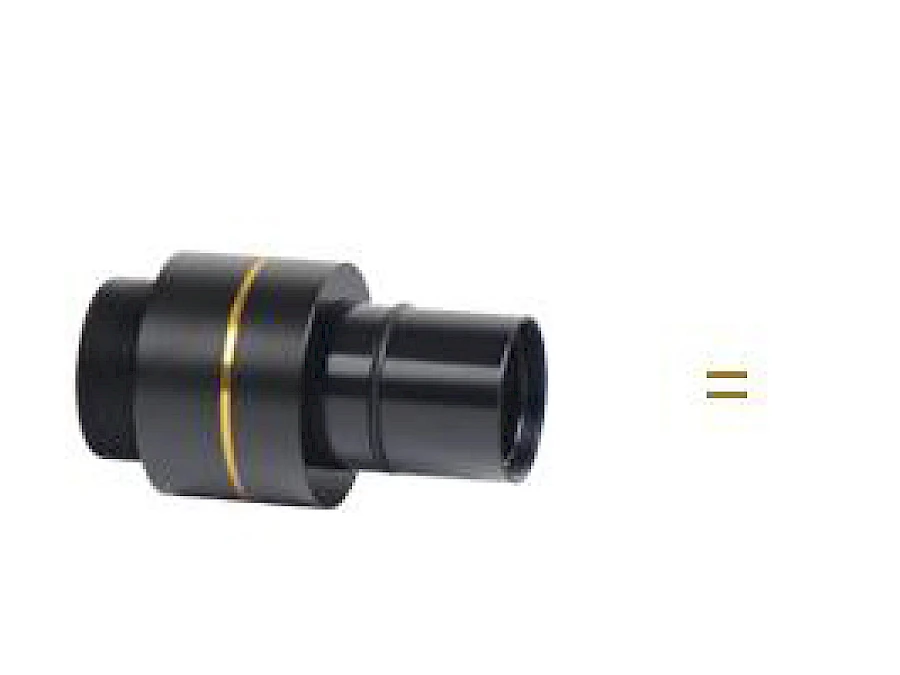

23.2mm Eyepiece to C-mount Fixed Microscope Eyepiece Adapter

Article Code	Model	Description

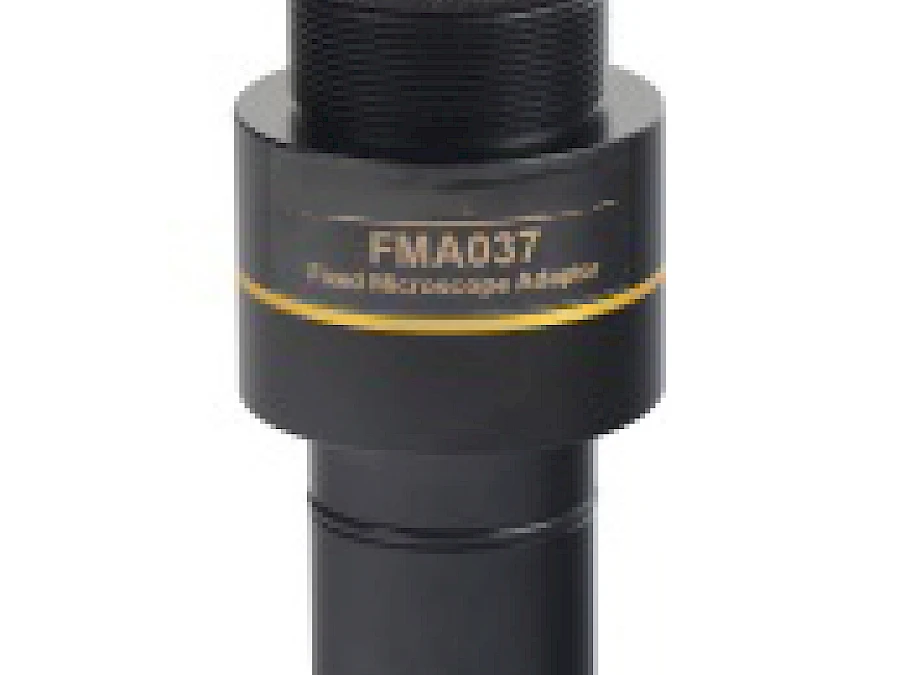

108005	FMA037	1.Available Size for 18 mm Field 18X0.37mm 2.Fit to 1/4”~1/3” Size Sensor 3.0.37X Magnification 4.Dia.23.2mm Eyepiece Tube to C-Mount

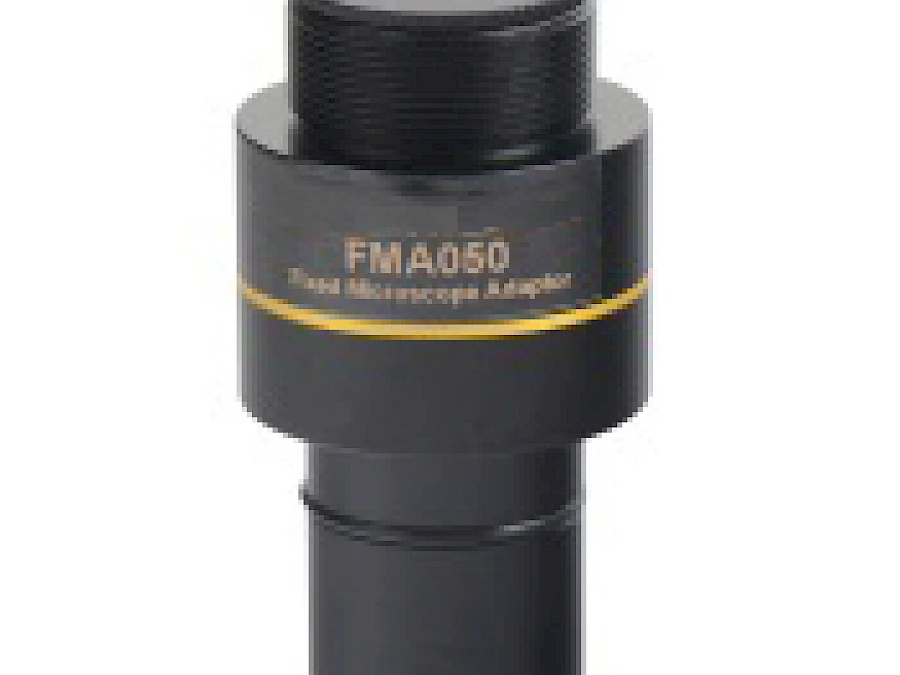

108006	FMA050	1.Available Size for 18 mm Field 18X0.50mm 2.Fit to 1/2”~2/3” Size Sensor 3.0.50X Magnification 4.Dia.23.2mm Eyepiece Tube to C-Mount

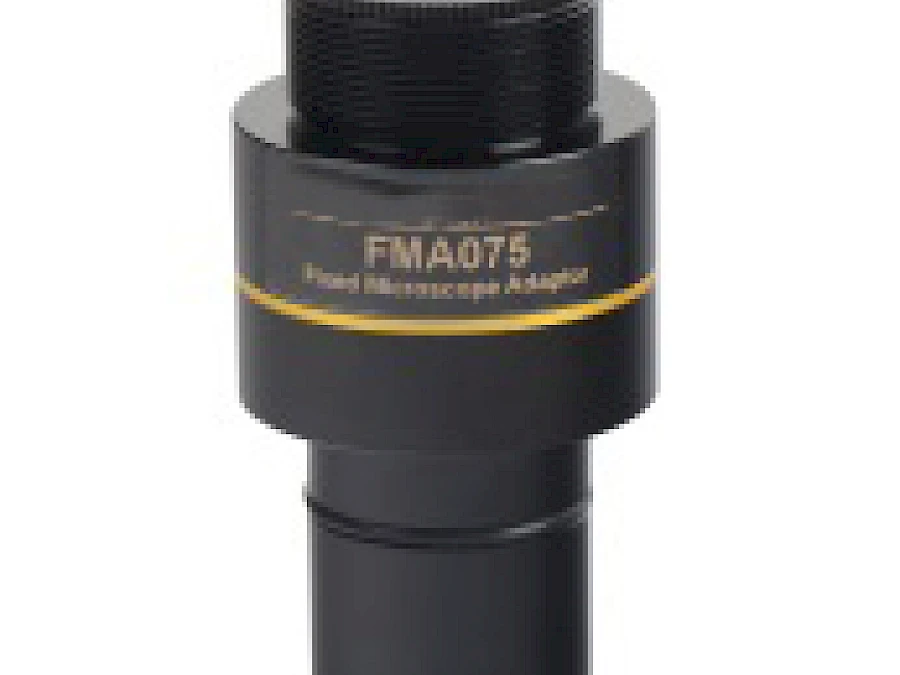

108007	FMA075	1.Available Size for 18 mm Field 18X0.75mm 2.Fit to 1/1.8”~1” Size Sensor 3.0.75X Magnification 4.Dia.23.2mm Eyepiece Tube to C-Mount

Article Code


Model

Description

Bar Code

108005

FMA037

1.Available Size for 18 mm Field 18X0.37mm

2.Fit to 1/4”~1/3” Size Sensor

3.0.37X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount

108006

FMA050

1.Available Size for 18 mm Field 18X0.50mm

2.Fit to 1/2”~2/3” Size Sensor

3.0.50X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount

108007

FMA075

1.Available Size for 18 mm Field 18X0.75mm

2.Fit to 1/1.8”~1” Size Sensor

3.0.75X Magnification

4.Dia.23.2mm Eyepiece Tube to C-Mount

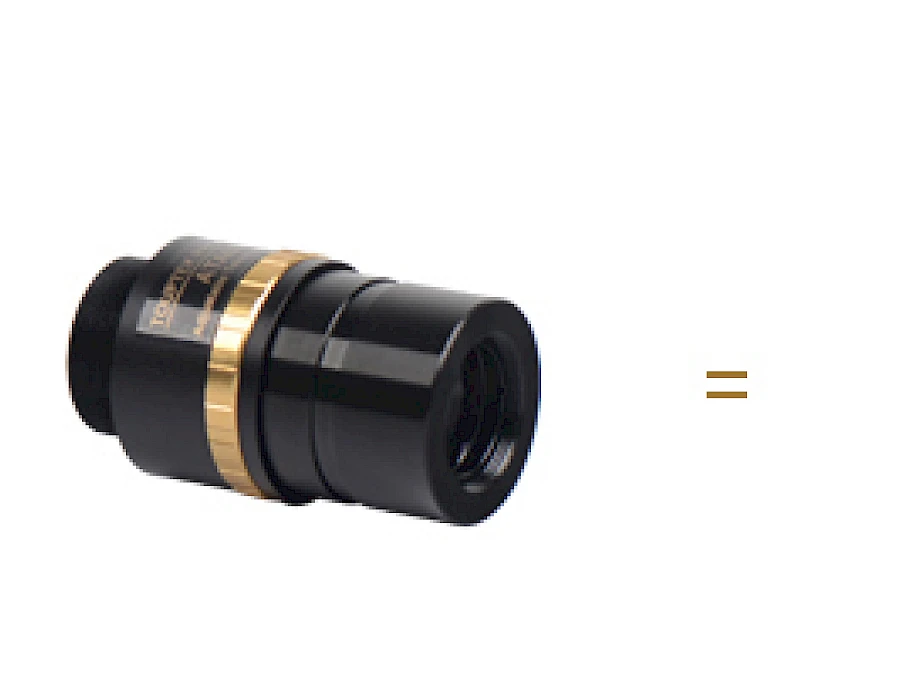

31.75mm Eyepiece to C-mount Adjustable Telescope Eyepiece Adapter

Article Code	Model	Description

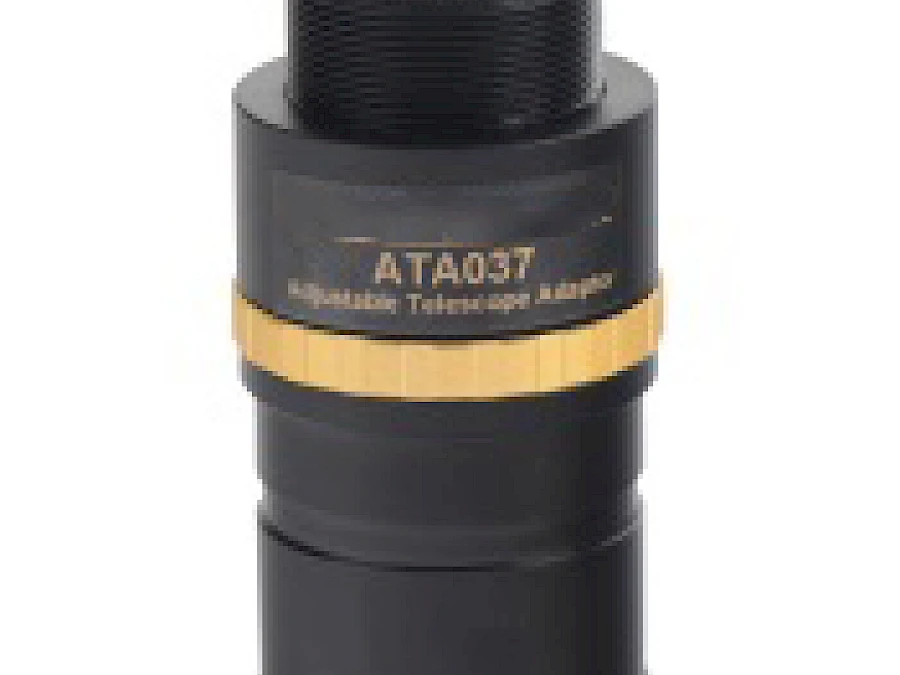

108008	ATA037	1.Fit to 1/4” ~ 1/3” Size Sensor 2.0.37X Magnification 3.Manually Focusable 4.Parfocal with the Eyepiece 5.C-Mount to Dia.31.75mm Eyepiece Tube

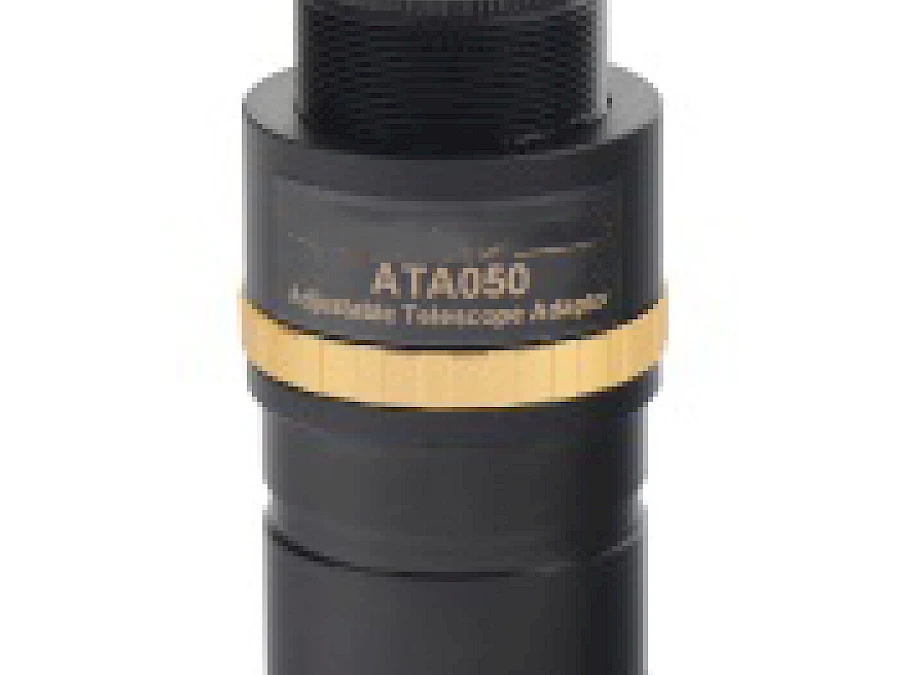

108009	ATA050	1.Fit to 1/2” ~ 2/3” Size Sensor 2.0.50X Magnification 3.Manually Focusable 4.Parfocal with the Eyepiece 5.C-Mount to Dia.31.75mm Eyepiece Tube

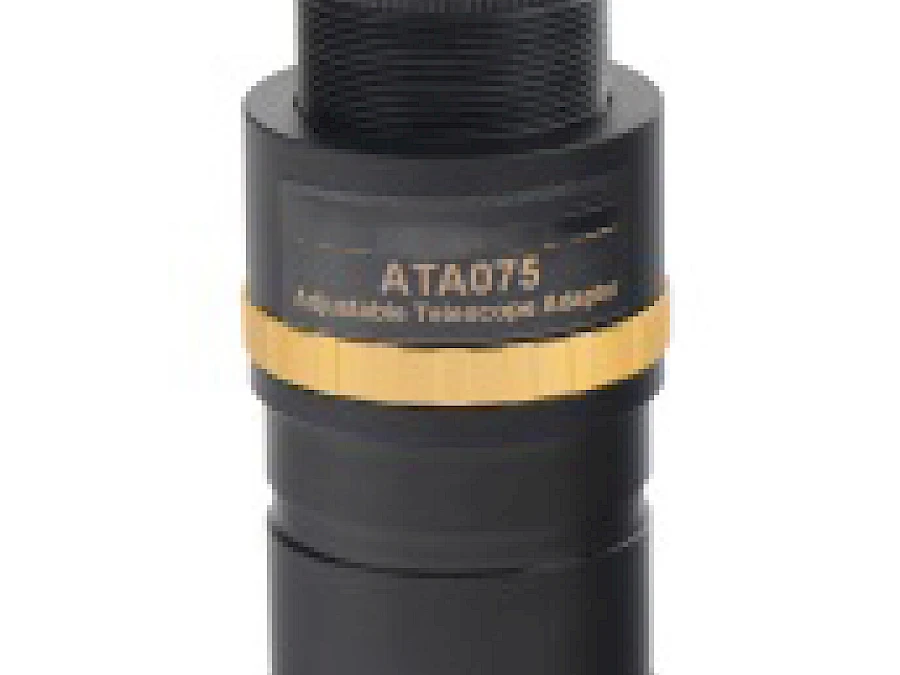

108010	ATA075	1.Fit to 1/1.8” ~ 1” Size Sensor 2.0.75X Magnification 3.Manually Focusable 4.Parfocal with the Eyepiece 5.C-Mount to Dia.31.75mm Eyepiece Tube

Article Code


Model

Description

Bar Code

108008

ATA037

1.Fit to 1/4” ~ 1/3” Size Sensor

2.0.37X Magnification

3.Manually Focusable

4.Parfocal with the Eyepiece

5.C-Mount to Dia.31.75mm Eyepiece Tube

108009

ATA050

1.Fit to 1/2” ~ 2/3” Size Sensor

2.0.50X Magnification

3.Manually Focusable

4.Parfocal with the Eyepiece

5.C-Mount to Dia.31.75mm Eyepiece Tube

108010

ATA075

1.Fit to 1/1.8” ~ 1” Size Sensor

2.0.75X Magnification

3.Manually Focusable

4.Parfocal with the Eyepiece

5.C-Mount to Dia.31.75mm Eyepiece Tube

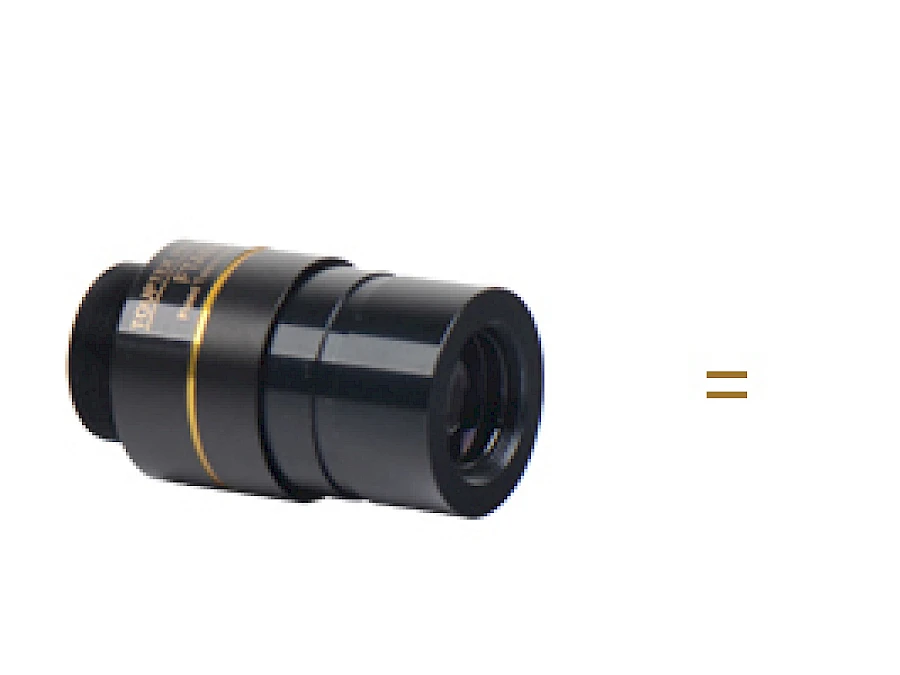

31.75mm Eyepiece to C-mount Fixed Telescope Eyepiece Adapter

Article Code	Model	Description
108011	FTA037	1.Fit to 1/4” ~ 1/3” Size Sensor 2.0.37X Magnification 3.C-Mount to Dia.31.75mm Eyepiece Tube
108012	FTA050	1.Fit to 1/2” ~ 2/3” Size Sensor 2.0.50X Magnification 3.C-Mount to Dia.31.75mm Eyepiece Tube

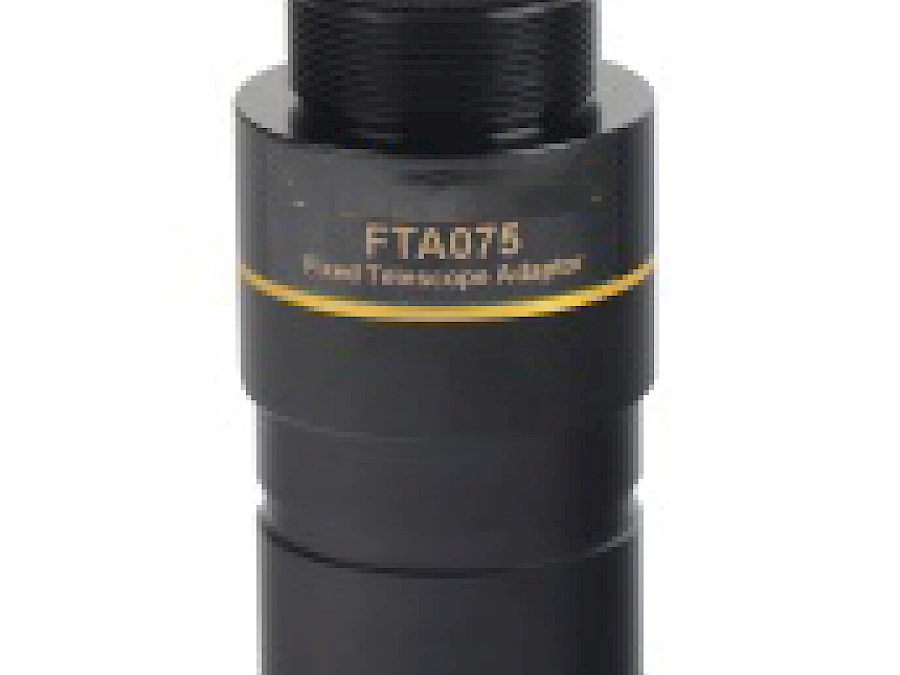

108013	FTA075	1.Fit to 1/1.8” ~ 1” Size Sensor 2.0.75X Magnification 3.C-Mount to Dia.31.75mm Eyepiece Tube

Article Code


Model

Description

Bar Code

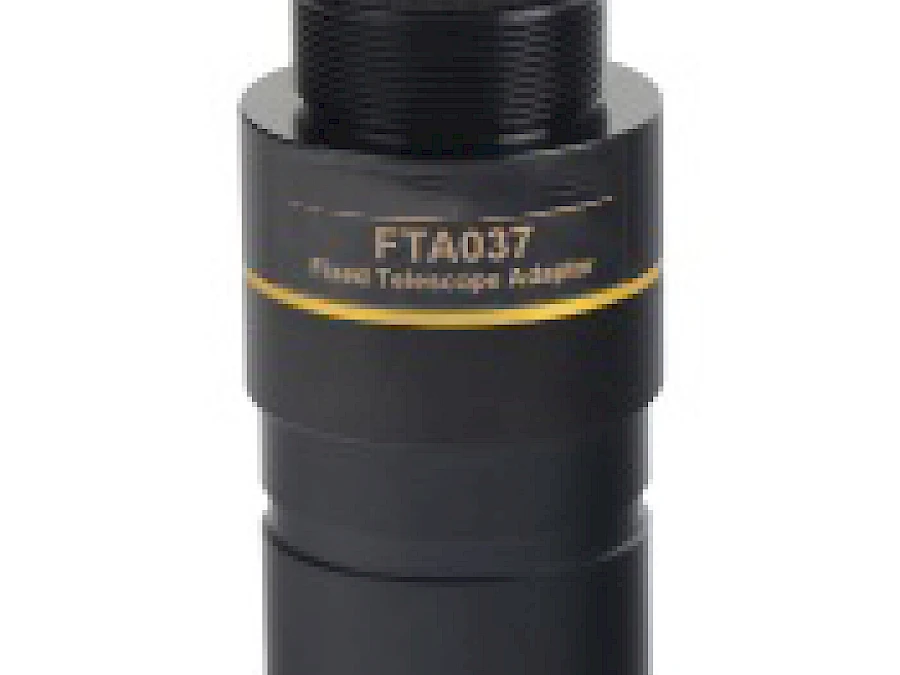

108011

FTA037

1.Fit to 1/4” ~ 1/3” Size Sensor

2.0.37X Magnification

3.C-Mount to Dia.31.75mm Eyepiece Tube

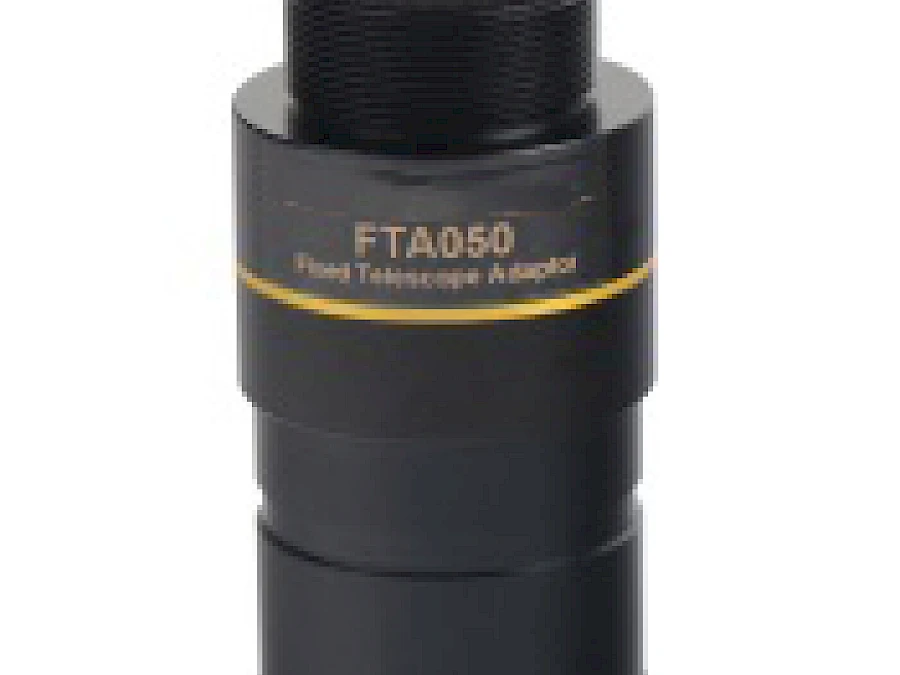

108012

FTA050

1.Fit to 1/2” ~ 2/3” Size Sensor

2.0.50X Magnification

3.C-Mount to Dia.31.75mm Eyepiece Tube

108013

FTA075

1.Fit to 1/1.8” ~ 1” Size Sensor

2.0.75X Magnification

3.C-Mount to Dia.31.75mm Eyepiece Tube

*To cover the field, the sensor size should be smaller than the available size. Jingtong’s experts will help you to select the correct Adapter for your ordered telescope camera. What you need to do is to select the right camera model.
